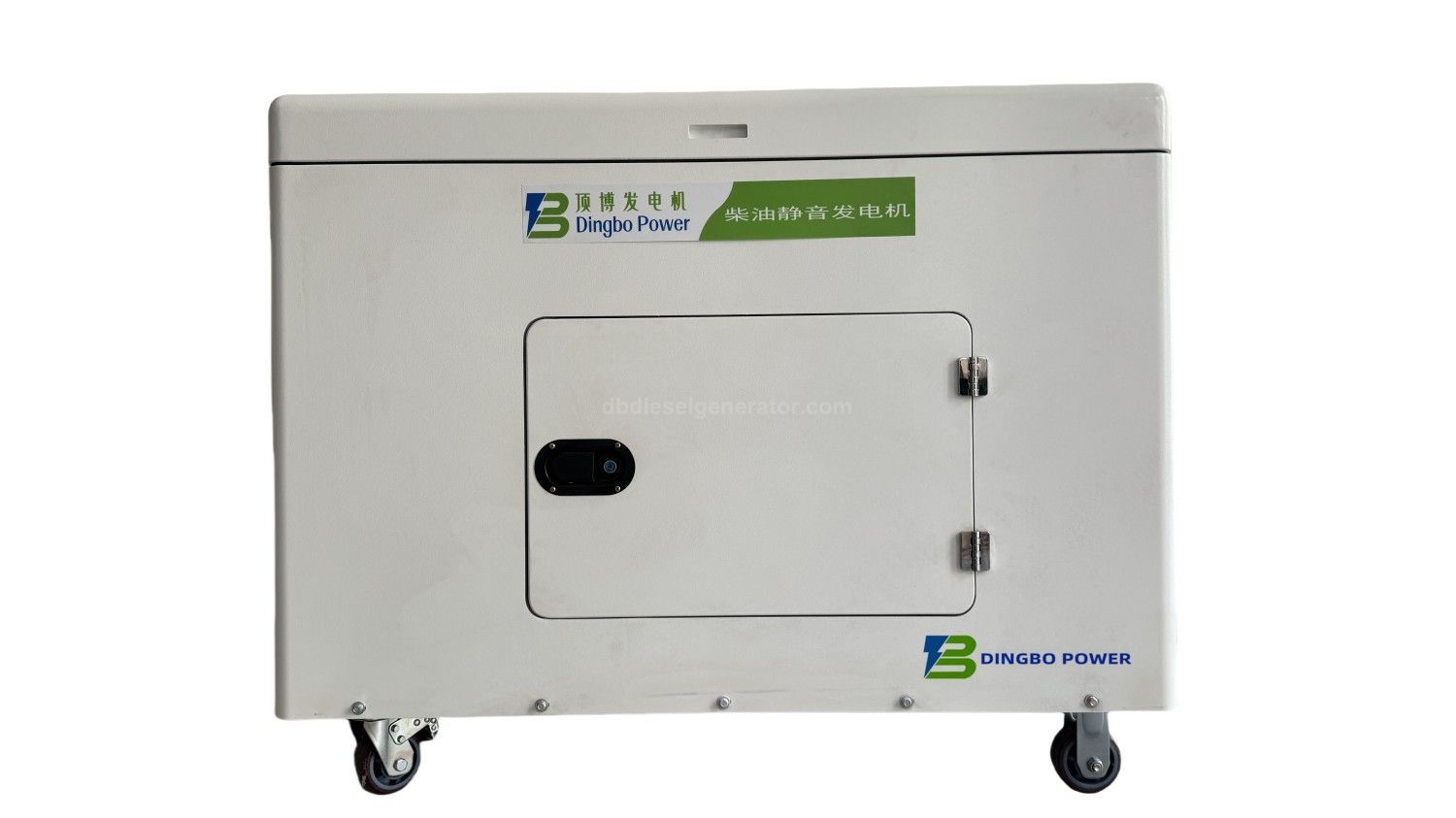

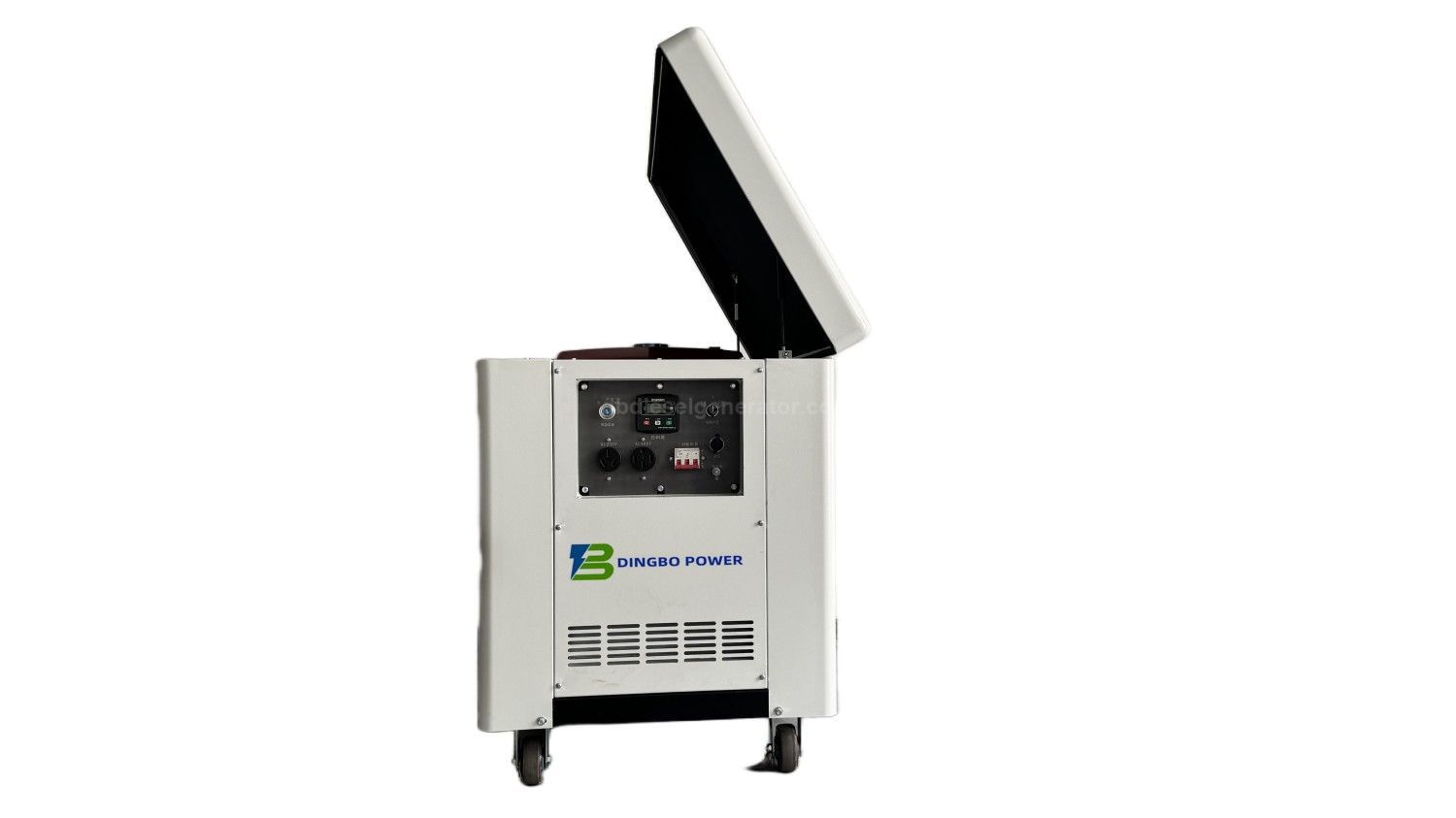

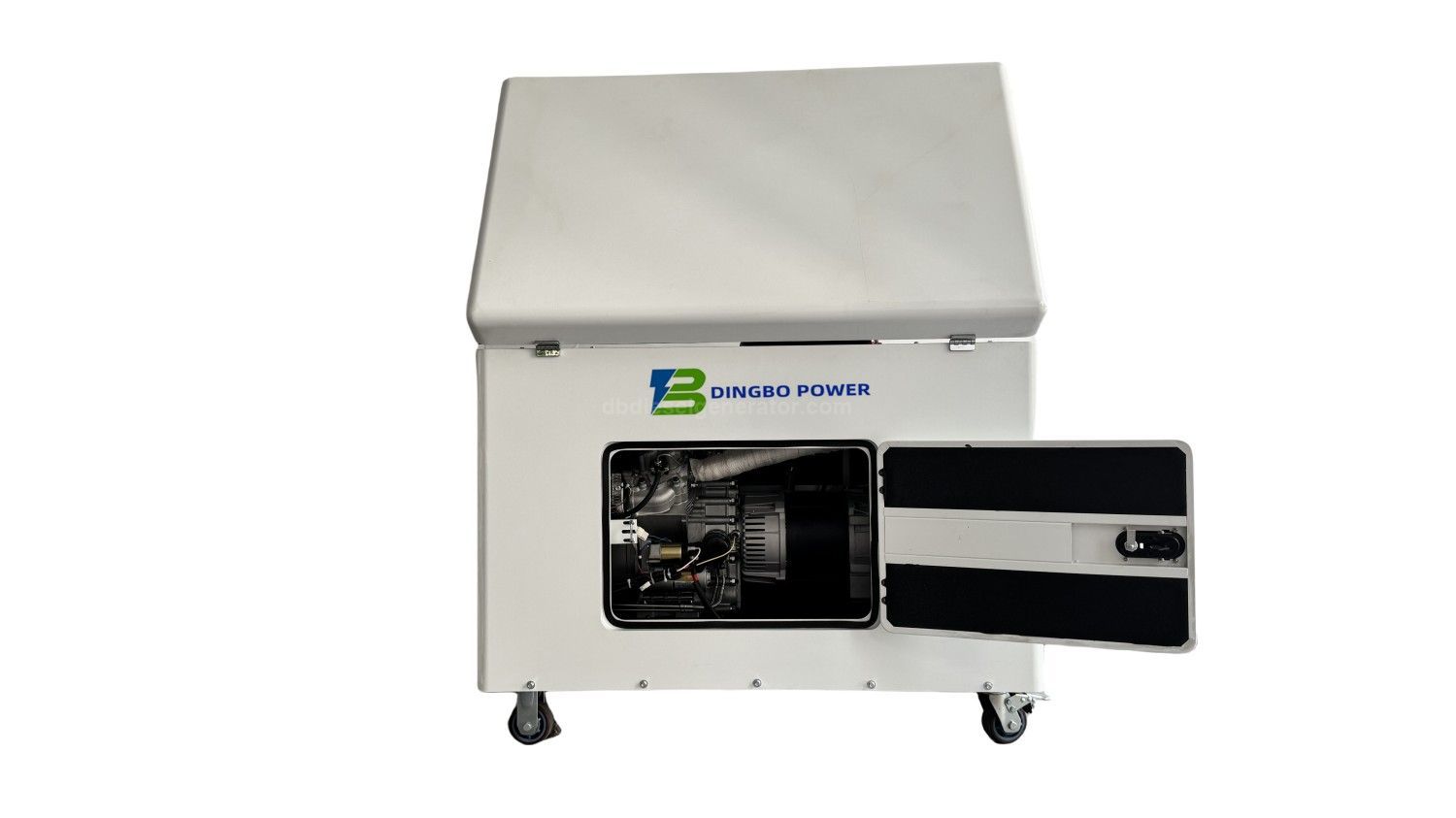

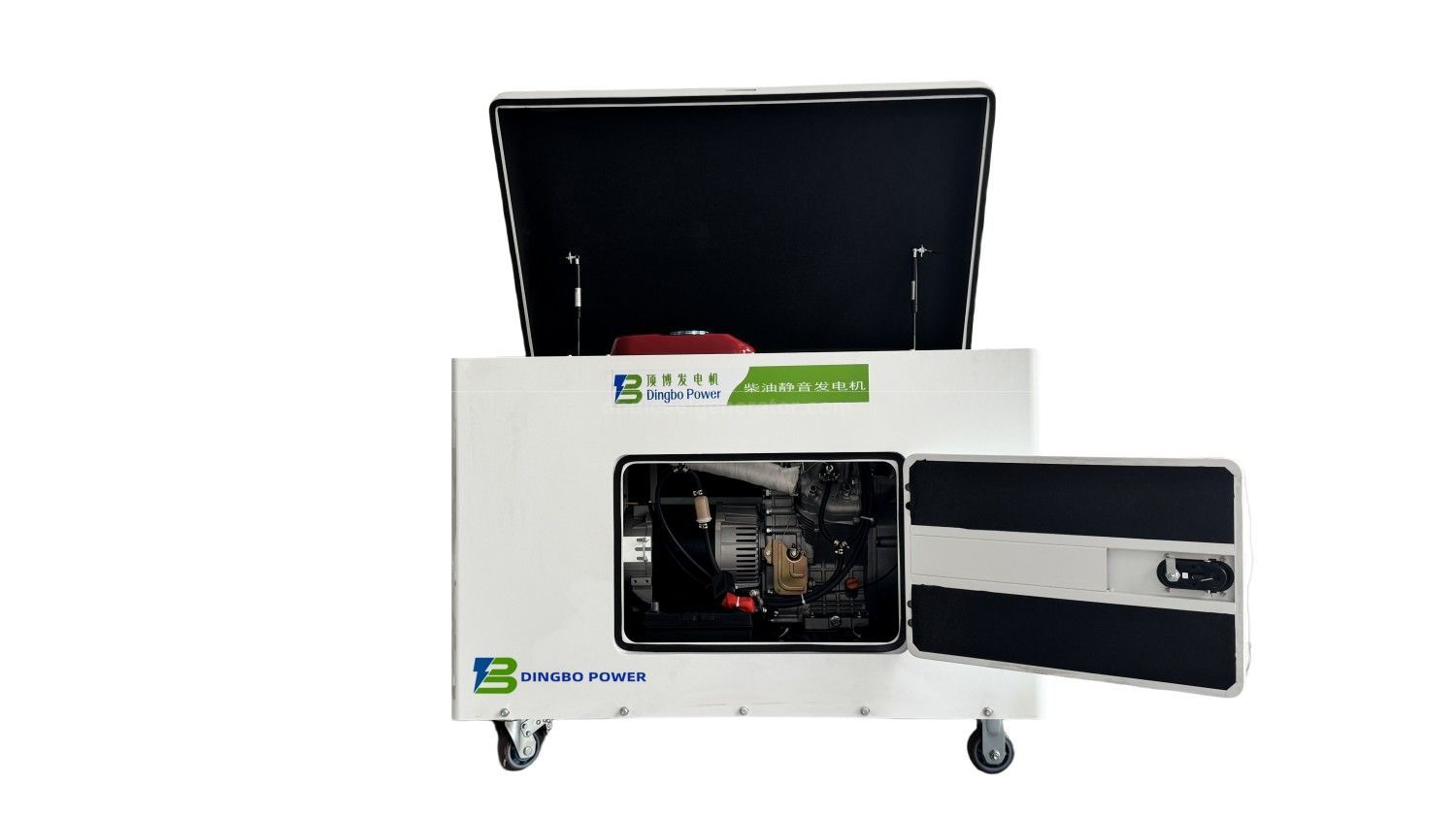

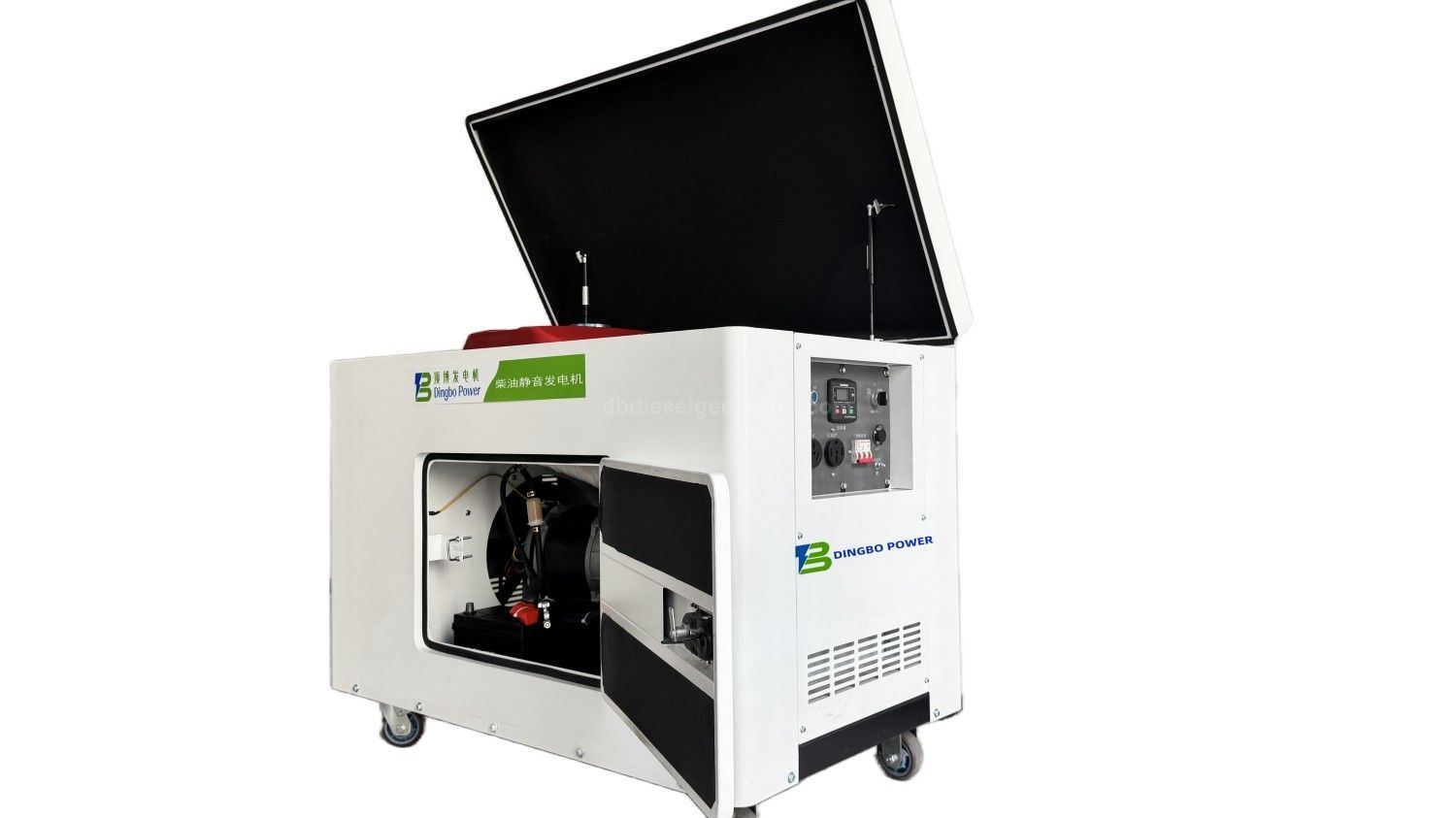

20KW Silent Electric Start Portable Diesel Generator,1-Phase/3-phase

Dingbo Power silent type portable single/three phase 20kW (25kVA) diesel generator, 2-cylinder air-cooled 4-stroke diesel engine with electric start and 30L fuel tank capacity, is ideal for residential use, remote worksites, construction projects, and disaster relief operations.

Inquire Now

Introduction Advantage Technical Parameters 50Hz 60Hz

1. Utilizes a V-twin, four-stroke, forced air-cooled engine paired with a pure copper generator.

2. Features a soundproof generator enclosure, with imported acoustic foam inside the canopy. Noise level ≤78dB.

3. Equipped with a maintenance-free battery for rapid deployment and portability.

4. Output terminals on the control panel include anti-loosening sockets and binding posts to prevent accidental disconnections.

5. Integrated safety protection system with a large-capacity fuel tank. Capable of continuous 8-hour operation at rated power.

Technical specifications:

Genset Model		DB25000CJ
Alternator	Excitation Type	AVR, Brush-type Self-excitation
	Prime Power (KW)	18
	Standby Power (KW)	20
	Rated Voltage(V)	220/380
	Frequency (Hz)	50
	Phase	Single Phase/Three Phase
	Power Factor (COSφ)	1/0.8
	Insulation Class	F
Engine	Engine Model	2V98
	Bore*Stroke (MM)	98*88
	Displacement (CC)	1326
	Engine Type	2 Cylinder, air-cooled, direct injection
	Fuel Type	Diesel
	Oil Capacity (L)	3.2
	Starting Type	Electric Start
Genset	Fuel Tank (L)	30
	Noise Level (dBA/7m)	78
	Dimensions (MM)	13008001000
	Weight (KG)	350

Why Choose Us

Dingbo is original manufacturer of diesel generator set. Factory direct sale, guaranteed quality and affordable price.

Our diesel generator sets are widely used in telecommunications, energy, transportation, real estate, hospital, residential building, data center and other fields, having long-term strategic cooperation with a lot of well-known enterprises. From research and development to production, from raw material procurement, assembly and processing to finished product debugging and testing, each process is strictly implemented, in all aspects meet the national, industry standards and contract provisions of the quality, specifications and performance requirements.

We have a professional and technical team, with an average working experience of more than 10 years in the generator industry. In the spirit of "keep improving", they actively collect and attract advanced technology and products at home and abroad, and constantly update the products, so that our diesel generators have been recognized by the majority of users.

If a customer can not find his supplier to support them when equipment has problem, after sales service is not guaranteed, which is a very helpless thing. While we have perfect after-sales service to support you to solve problem, it's not that you can't find us after you have a problem on your equipment. We will be with you and solve your problems with heart.

Export Case

So far, our diesel genset sold to Ethiopia, Venezuela, Singapore, Nigeria, Thailand, U.S.A etc. all over the world, both having good feedback from customers.

Diesel generators

Specific Project Cases:

https://www.dbdieselgenerator.com/project-case/

FAQ

1. Do you have your own factory?

Yes, we have. Welcome to visit our factory.

2. What is the delivery time and do you have product in stock?

Delivery time depends on order quantity. Generally, within 10 days for open genset, 20 days for silent genset. We have some power capacities in stock, if need details, please contact us.

3. What is your warranty period?

Our warranty is 1 year or 1000running hours whichever comes first. But based on some special project, we can extended our warranty period.

4. Does your generator have global warranty?

Yes, We supply the warranty. Also most of our products like Cummins, Volvo, Perkins, Deutz, Doosan, Yuchai, Weichai etc. power generator enjoy the global warranty service. And the alternator we use like Stamford and marathon also enjoy the global warranty service, so you do not need to worry about the after-sales service.

5. What is your payment terms?

We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight. But based on some special project and special order, we can do something on payment item.

6. Do you provide OEM service?

Yes, we can put your company logo on our diesel genset, just tell us your requirements, then we will do it for you.

Our Service

Before service

Our professional engineer will give you some consultation of technology and related planning before sale, such as selection of equipment, supporting facilities, the design of equipment room. We can also answer and solve the using problem you faced.

After sale service

1. Free guide to install and debugging

2. Free training and consult

3. Guiding how to protect your equipment

4. We will set up clients' document, tracking service, regular inspection, maintenance for life

5. We offers pure perennial spare parts and maintenance engineers will be ready to provide.

Dingbo Cloud on line service will help you to manage your equipment, save cost and improve efficiency.
