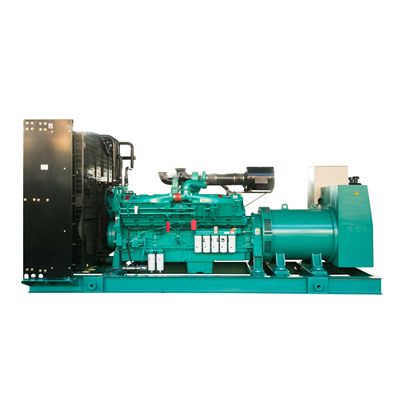

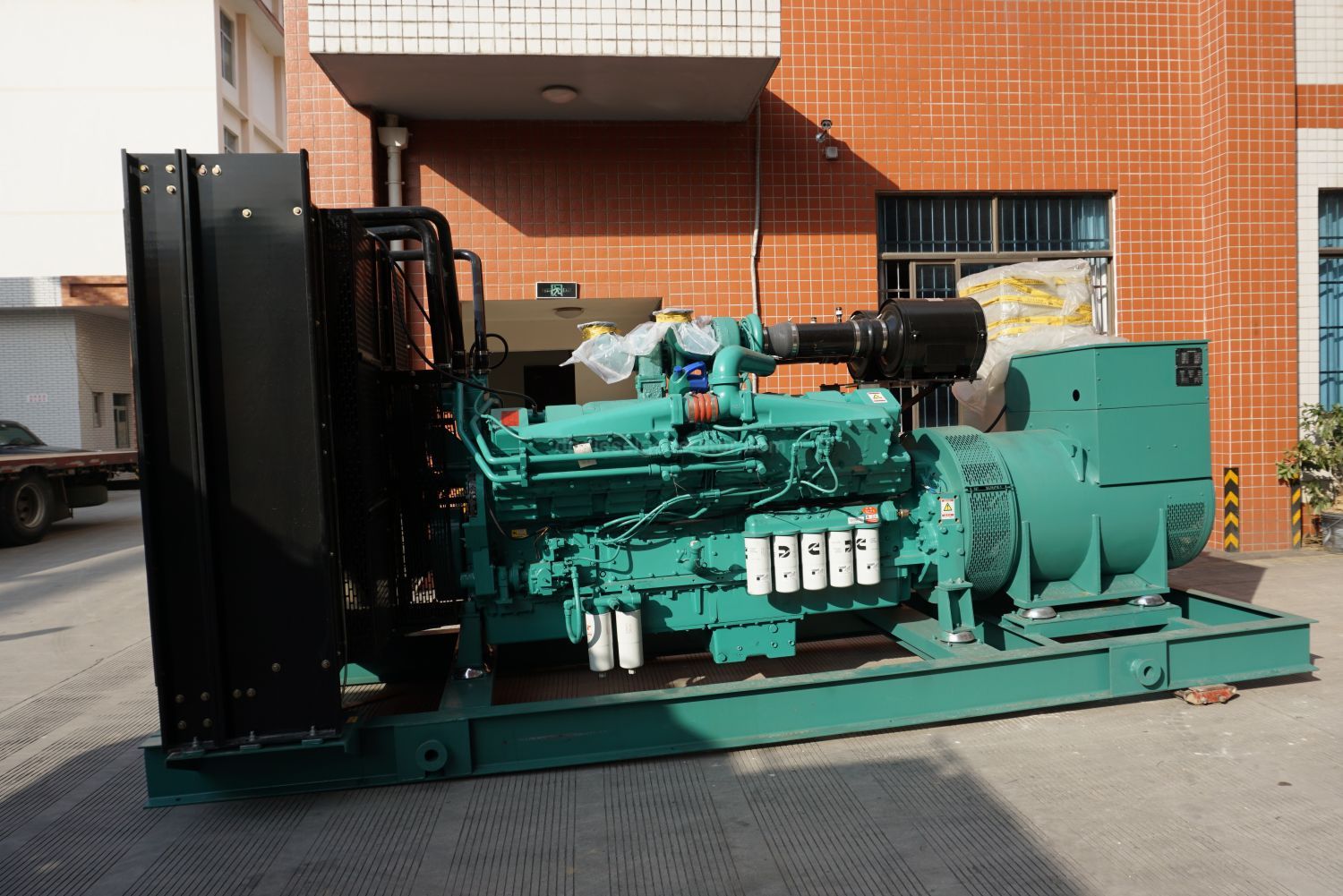

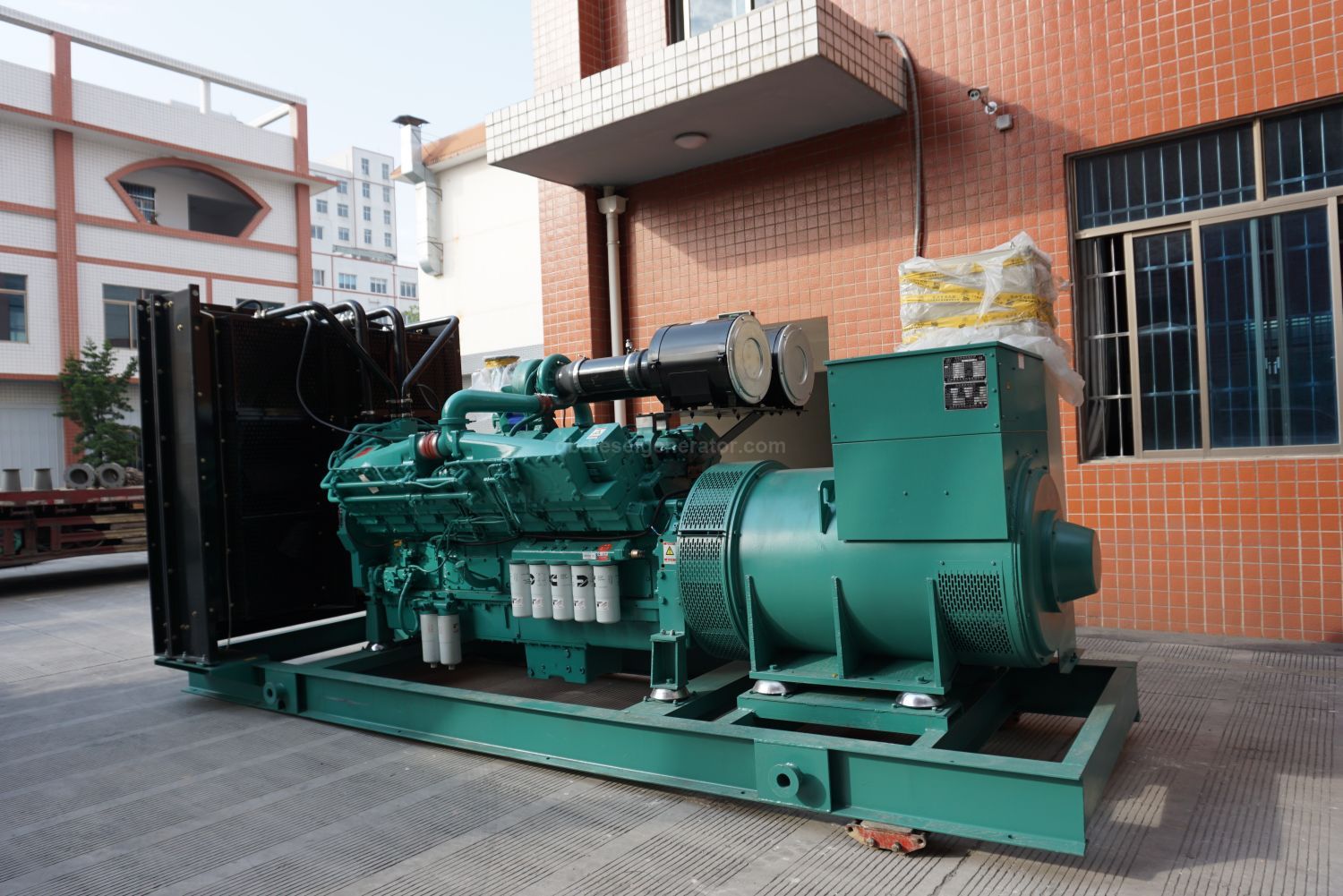

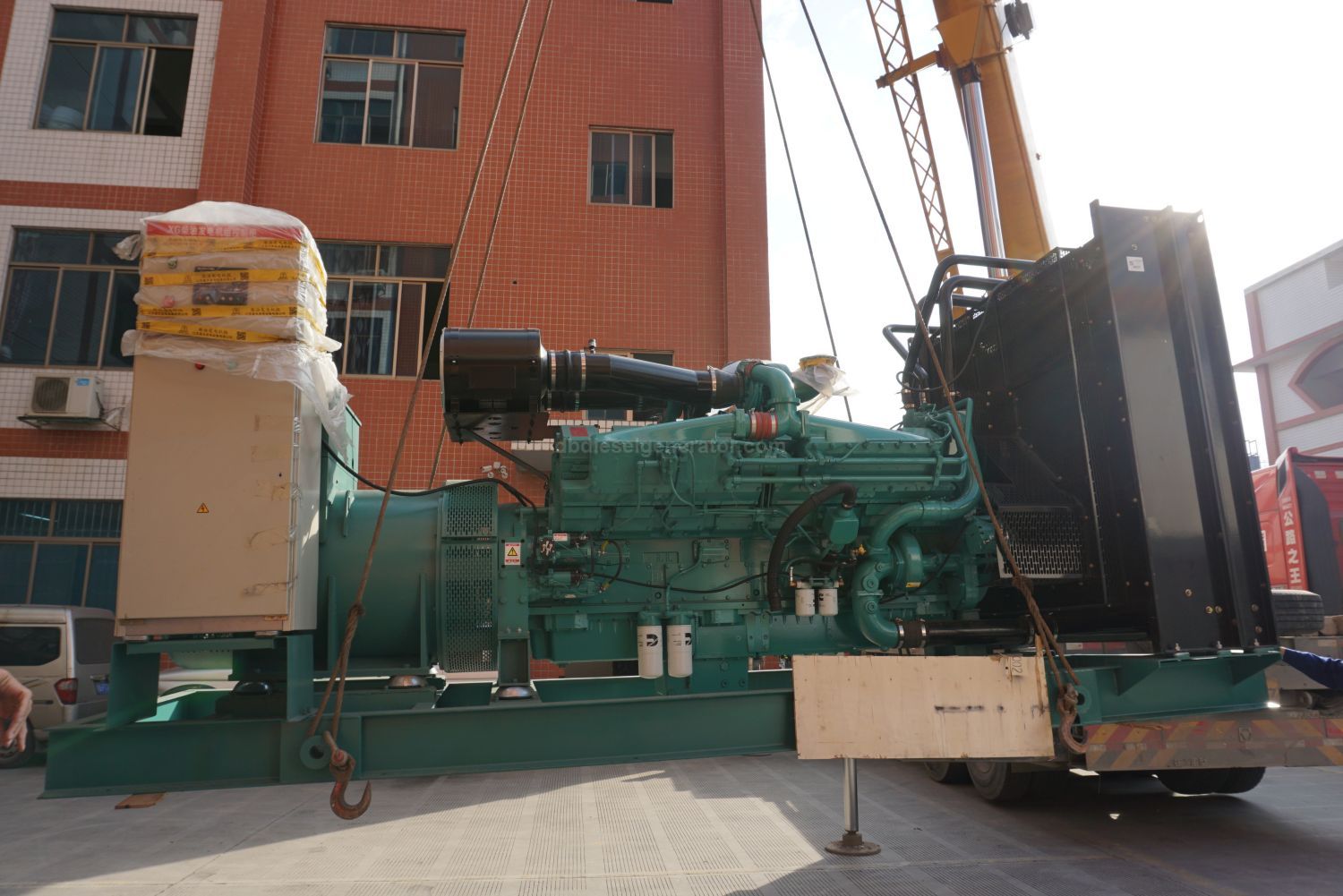

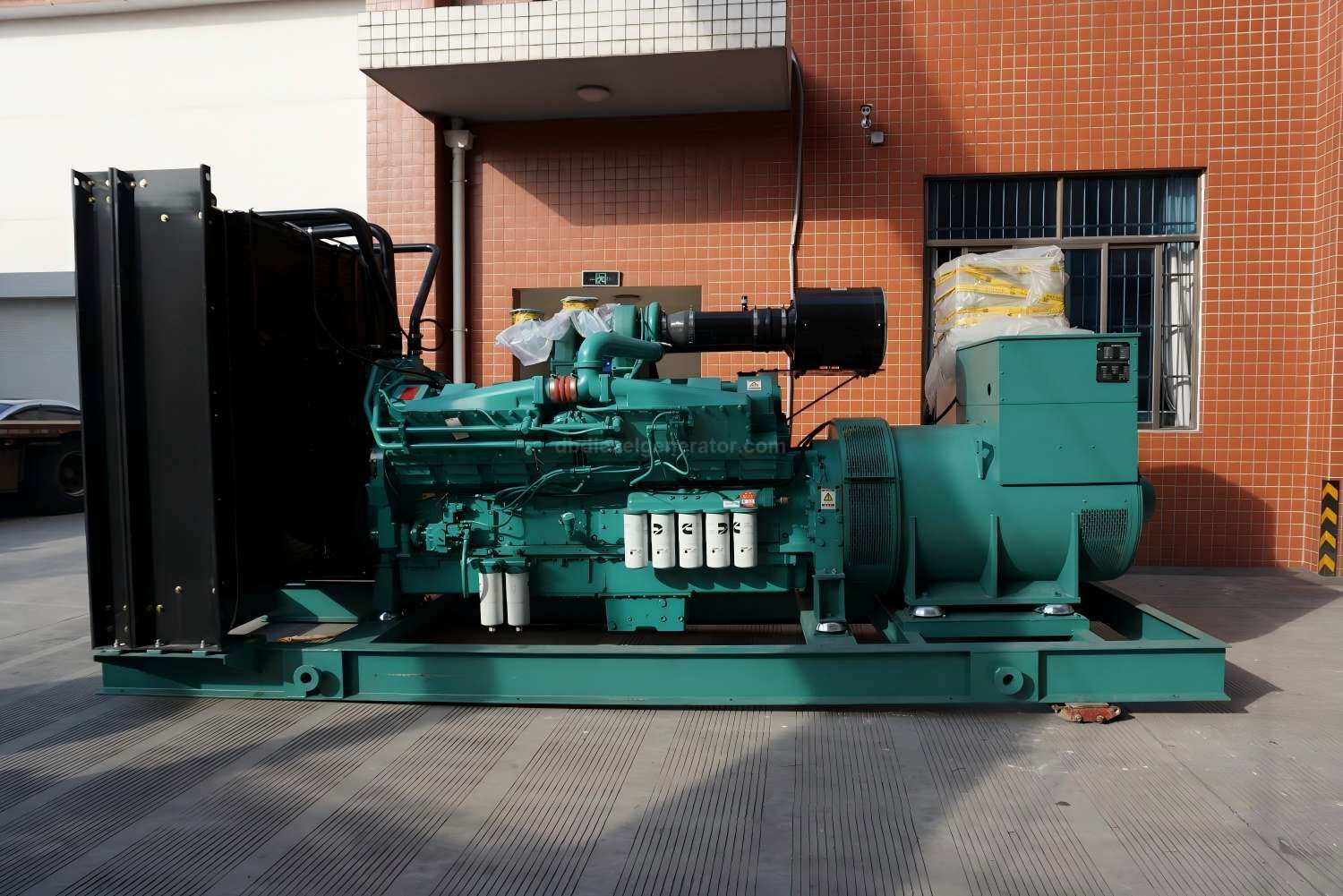

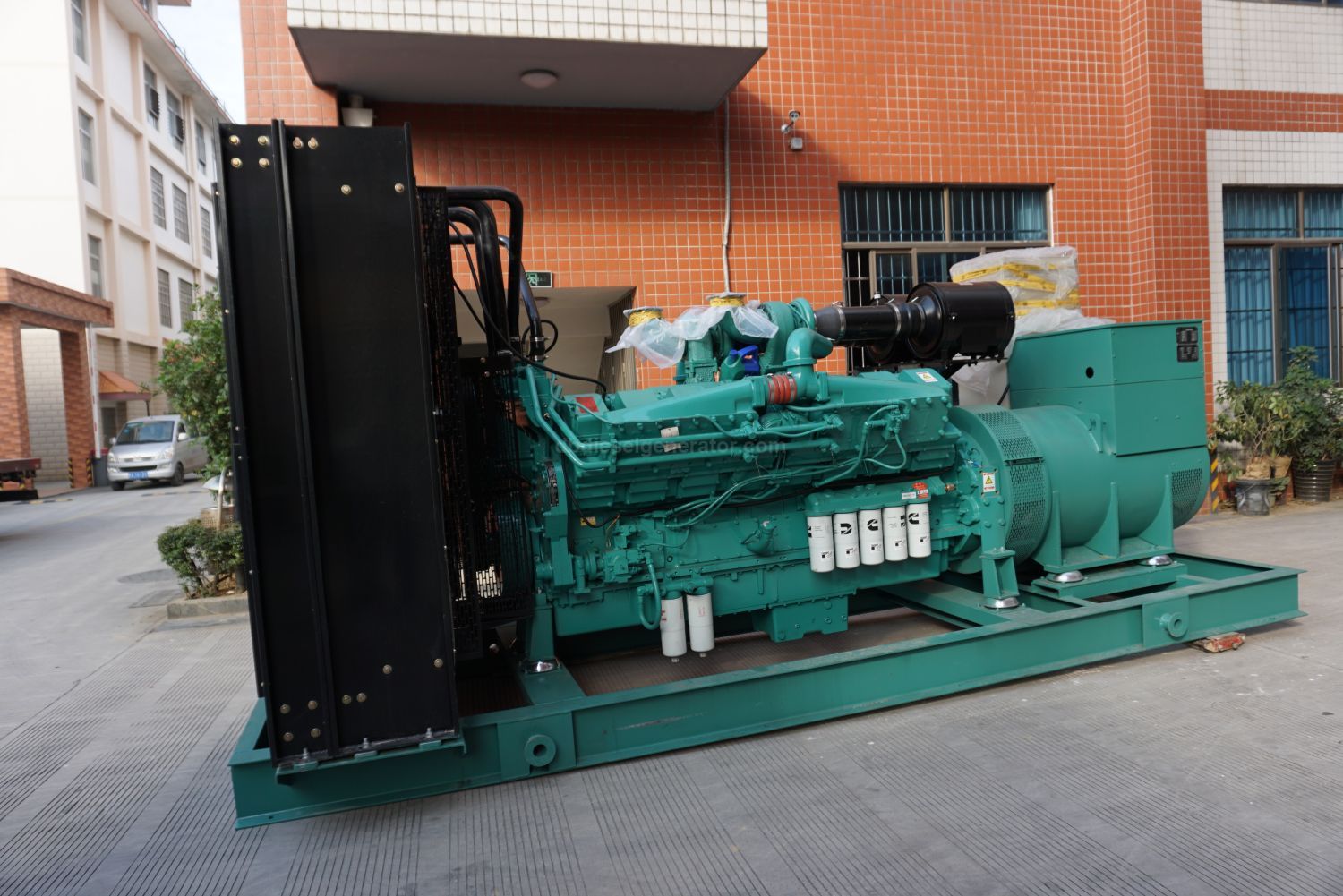

1200kw 1500kva Cummins Diesel Generator Set

1500kVA Cummins Diesel Generator:

Engine model: Cummins diesel engine KTA50-GS8;

Prime Power: 1200KW/1500KVA;

Standby Power: 1320KW/1650KVA;

Rated frequency/speed:1500rpm/50Hz;

Phase/Wires: 3 phase 4 wires;

Rated current: 2160A;

Rated frequency: 50Hz;

Power factor: 0.8lag;

Rated voltage: 230/400V;

Start mode:electric start;

Alternator: Stamford, Leroysomer, Marathon, Siemens, ENGGA brand;

Model: DB-1200GF.

Buy for a Diesel Generator with a power rating of 1500 kW from Cummins.

For more types, please contact us.

Inquire Now Next Product

Introduction Advantage Technical Parameters 50Hz 60Hz

About Cummins 1500 Kva Diesel Generator:

The Cummins 1500 kVA diesel generator is designed to provide 1500 kilovolt-amperes (kVA) of reliable electrical power. Our 1500kVA diesel generator featuring the Cummins KTA50-GS8 engine & Stamford alternator, the control panel of Cummins generator use the SmartGen 6110 control panel as standard, AMF Control Panel Deep Sea DSE7320 provide full protection of the diesel engine and alternator. 1500kVA diesel generator is low-cost and reliable, and is designed to meet the demands of large-scale applications, such as industrial facilities, data centers, and critical infrastructure where a stable and uninterrupted power supply is essential.

Features of Cummins Diesel Engine:

The Cummins KTA50-GS8 diesel engine has a rated power of 1287 kW at 1500 RPM and a standby output of 1429 kW at 1500 RPM. This diesel engine features a 16-cylinder V-type configuration with a turbocharger and low-temperature aftercooling. Cummins diesel engine is one of the most popular engine brands in the field of diesel generators.

Payment & Shipping Terms:

Payment Terms: T/T, L/C.

Packaging Packaging: Details Wooden box, plastic film.

Delivery time: 10~20 days.

Production capacity: 1000 units/year.

Minimum order quantity: 1 unit.

Dingbo Power is original manufacturer of diesel generators equipped with Cummins diesel engine. Dingbo Power has cooperated with Cummins for many years. Dingbo Power Cummins series genset power range is from 20kw to 2000kw.

( DCEC Cummins genset: 20kw-400kw, CCEC Cummins genset: 200kw-1500kw, Cummins Inc. Genset: 20kw-2000kw ).

Why Choose Us

Dingbo is original manufacturer of diesel generator set. Factory direct sale, guaranteed quality and affordable price.

Our diesel generator sets are widely used in telecommunications, energy, transportation, real estate, hospital, residential building, data center and other fields, having long-term strategic cooperation with a lot of well-known enterprises. From research and development to production, from raw material procurement, assembly and processing to finished product debugging and testing, each process is strictly implemented, in all aspects meet the national, industry standards and contract provisions of the quality, specifications and performance requirements.

We have a professional and technical team, with an average working experience of more than 10 years in the generator industry. In the spirit of "keep improving", they actively collect and attract advanced technology and products at home and abroad, and constantly update the products, so that our diesel generators have been recognized by the majority of users.

If a customer can not find his supplier to support them when equipment has problem, after sales service is not guaranteed, which is a very helpless thing. While we have perfect after-sales service to support you to solve problem, it's not that you can't find us after you have a problem on your equipment. We will be with you and solve your problems with heart.

Export Case

So far, our diesel genset sold to Ethiopia, Venezuela, Singapore, Nigeria, Thailand, U.S.A etc. all over the world, both having good feedback from customers.

Diesel generators

Specific Project Cases:

https://www.dbdieselgenerator.com/project-case/

FAQ

1. Do you have your own factory?

Yes, we have. Welcome to visit our factory.

2. What is the delivery time and do you have product in stock?

Delivery time depends on order quantity. Generally, within 10 days for open genset, 20 days for silent genset. We have some power capacities in stock, if need details, please contact us.

3. What is your warranty period?

Our warranty is 1 year or 1000running hours whichever comes first. But based on some special project, we can extended our warranty period.

4. Does your generator have global warranty?

Yes, We supply the warranty. Also most of our products like Cummins, Volvo, Perkins, Deutz, Doosan, Yuchai, Weichai etc. power generator enjoy the global warranty service. And the alternator we use like Stamford and marathon also enjoy the global warranty service, so you do not need to worry about the after-sales service.

5. What is your payment terms?

We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight. But based on some special project and special order, we can do something on payment item.

6. Do you provide OEM service?

Yes, we can put your company logo on our diesel genset, just tell us your requirements, then we will do it for you.

Our Service

Before service

Our professional engineer will give you some consultation of technology and related planning before sale, such as selection of equipment, supporting facilities, the design of equipment room. We can also answer and solve the using problem you faced.

After sale service

1. Free guide to install and debugging

2. Free training and consult

3. Guiding how to protect your equipment

4. We will set up clients' document, tracking service, regular inspection, maintenance for life

5. We offers pure perennial spare parts and maintenance engineers will be ready to provide.

Dingbo Cloud on line service will help you to manage your equipment, save cost and improve efficiency.

Advantage

1.Long service life

2.Easy maintenance

3.Low noise & small vibration

4.Smooth operation,lose noise, high efficiency

5.Global warranty service

6.Both 50Hz and 60Hz

7.ISO9001, ISO14001, GB/T2800 certification

8.The design of cylinder block is strong and durable

9.Fuel system: Cummins PT system, with unique overspeed protection device; low pressure oil pipeline, less pipeline, low failure rate, high reliability; high pressure injection, full combustion.

10.Forced water cooling, low heat radiation, excellent performance

11.Spare parts are easy to get from worldwide market with much cheaper price

12.Coupled with Stamford, Leroysomer, Marathon, Siemens, ENGGA or China alternator Shanghai Kepu, Shanghai Stamford. Controller SmartGen, Deep Sea, ComAp.

13.Perfect after-sales network

14.Rigorous test including 50% load,75% load,100% load and 110% load

Cummins 1500 kva Generator Specifications

1) Cummins engine

2) Shanghai Stamford alternator(Stamford, Leroysomer, Marathon, Siemens, ENGGA brand for option)

3) SmartGen 6110 control panel as standard, AMF Control Panel Deep Sea DSE7320, SmartGen HGM6120, cloud monitoring platform for option. ATS, synchronous parallel for option

4) Chint breaker as standard, ABB, Schneider Breaker for option

5) 8/12 Working hours base bottom fuel tank, external fuel tank for option

6) Anti-Vibration mounted system

7) Battery and battery connecting cable, battery charger

8) Industrial silencer and flexible exhaust hose

Cummins 1500 kva Generator Technical Datasheet

Manufacturer:	Guangxi Dingbo Power EquipmentManufacturing Co.,Ltd
Genset model	DB-1200GF
Type	Open type or Silent type
Prime Power:	1200KW/1500KVA
Standby Power:	1320KW/1650KVA
Rated current:	2160A
Rated voltage:	400/230V or as you required
Rated frequency/speed:	1500rpm/50Hz
Power factor:	0.8lag
Phase:	3 phase 4 wire
Noise level:	100dB at 7m ( open type generator)
Noise level:	70dB at 7m(silent type generator)
Dimension (L x W x H):	Open type: 5200 x 2250 x 2500mm(for reference)
Dimension (L x W x H):	Silent type: 7000 x 2900 x 3000mm(for reference)
Net weight:	Open type: 11800kg
Net weight:	Silent type: 15500kg

Cummins KTA50-GS8 Diesel Engine Datasheet

Manufacturer:	Cummins Engine Co.,Ltd
Engine model	KTA50-GS8
Prime power:	1287kW
Standby power:	1429kW
Frequency/Speed:	1500RPM / 50Hz
Cylinders no. & Type:	16, Vertical in-line, 4 stroke
Aspiration:	Turbocharged & Low Temp. Aftercooled
Cooling method	Water-cooled
Displacement:	50.3L
Compression ratio	14.9:1
Governor	Electronic
Bore x Stroke(mm):	159 × 159
Start mode:	Electric start
Starter motor:	24V DC
Type Injection System:	Direct injection Cummins PT pump
Total Lubrication System Capacity	204L
Max. oil temperature (°C)	121
Coolant Capacity (L)	165

Alternator technical datasheet

Manufacturer	Stamford/ Marathon/ Engga/ Shanghai Stamford/ Leroy Somer
Continuous rated power:	1200KW/1500KVA
Rated Voltage:	400/230V
Frequency/Speed:	1500rpm /50Hz
Phase:	3 phase 4 wire
Power Factor:	0.8lag
Efficiency:	94.7%
Regulator:	AVR
Stator:	Double layer concentric
Rotor:	Single/double bearing
Exciter type:	Brushless excitation
Windings:	100% copper
Short circuit current capacity(%)	>300IN 10s( with PMG or Auxiliary winding）
Recovery time(Tr)	1s
Waveform : TIF	<50
Waveform : THD	<3%
Waveform : THF	<2%
Winding pitch	2/3
Voltage regulation:	± 1.0 %
Protection:	IP22 or IP23
Insulation class	H
Duty	Continuous
Number of poles	4
Altitude	≤1000m
Rated power factor	0.8lag
Stator winding	6ends
Rotor	With damping cage
Overload	110% rated load for 2 hour per 24 hour
Ambient temperature	40℃
Maximum overspeed	2250 rpm 2minutes

Controller

Standard controller

Model: Deep Sea 7320 or SmartGen 6110

Automatic controller, integrating digital, intelligent and network techniques, is used for automatic control and monitoring system of single genset. It can carry out functions of automatic start/stop, data measurement, alarm protection and three remote (remote control, remote measurement and remote communication). The controller uses LCD display, optional language interface including Chinese, English, Spanish, Russian, Portuguese, Turkish, Polish and French with easy and reliable operation.

Auto parallel controller

Model: Deep Sea 8610 or SmartGen HGM9510

Synchronising & Load Sharing Control Module

The auto parallel controller represents the latest in complex load sharing & synchronising control technology. Designed to handle the most complex grid type generator applications the control module is packed with multiple features and benefits that are unrivalled across the generator control industry.

1. DCEC Cummins open type diesel generators

Genset Model	Generating Set Output				DCEC Cummins Engine Model	Size
	Prime Power		Standby Power			Dimension( LxWxH:mm )	Weight(kg)
	KW	KVA	KW	KVA		Dimension( LxWxH:mm )	Weight(kg)
DB-22GF	22	28	28	35	4B3.9-G2	1650×800×1300	760
DB-25GF	25	31	28	35	4B3.9-G12	1650×800×1300	780
DB-30GF	30	38	33	41	4BT3.9-G1	1650×800×1300	800
DB-30GF	30	38	33	41	4BT3.9-G2	1650×800×1300	800
DB-50GF	50	63	55	69	4BTA3.9-G2	1850×850×1300	820
DB-60GF	60	75	66	83	QSB3.9-G2	1850×850×1300	900
DB-64GF	64	80	70.4	88	4BTA3.9-G11	1850×850×1300	900
DB-70GF	70	88	77	96	QSB3.9-G3	2200×850×1600	1080
DB-75GF	75	94	82.5	103	6BT5.9-G1	2200×850×1600	1060
DB-75GF	75	94	82.5	103	6BT5.9-G2	2200×850×1600	1060
DB-90GF	90	113	100	125	QSB5.9-G2	2300×850×1600	1100
DB-100GF	100	125	110	138	6BTA5.9-G2	2300×850×1600	1080
DB-110GF	110	138	120	150	6BTAA5.9-G2	2450×850×1600	1150
DB-110GF	110	138	120	150	QSB5.9-G3	2450×850×1600	1200
DB-120GF	120	150	132	165	6BTAA5.9-G12	2450×850×1600	1150
DB-140GF	140	175	154	193	QSB6.7-G3	2450×850×1800	1480
DB-150GF	150	188	165	206	6CTA8.3-G1	2450×850×1800	1450
DB-150GF	150	188	165	206	6CTA8.3-G2	2450×850×1800	1450
DB-150GF	150	188	165	206	QSB6.7-G4	2450×850×1800	1480
DB-160GF	160	200	176	220	6CTAA8.3-G2	2600×950×1800	1860
DB-180GF	180	225	200	250	QSL8.9-G2	2555×960×1650	2000
DB-200GF	200	250	220	275	6LTAA8.9-G2	2800×1000×1800	2000
DB-200GF	200	250	220	275	6LTAA8.9-G3	2800×1000×1800	2300
DB-200GF	200	250	220	275	QSL8.9-G3	2555×960×1650	2000
DB-200GF	200	250	220	275	QSL8.9-G4	2555×960×1650	2000
DB-220GF	220	275	242	303	6LTAA9.5-G3	2800×1000×1800	2300
DB-250GF	250	313	275	344	6LTAA9.5-G1	2800×1000×1800	2500
DB-300GF	300	375	330	413	6ZTAA13-G3	3250×1360×2100	2700
DB-300GF	300	375	330	413	QSZ13-G6	3250×1360×2100	3200
DB-330GF	330	413	360	450	QSZ13-G7	3250×1360×2100	3200
DB-350GF	350	438	385	481	6ZTAA13-G2	3250×1360×2100	2700
DB-350GF	350	438	385	481	QSZ13-G2	3250×1360×2100	3200
DB-350GF	350	438	385	481	QSZ13-G2	3250×1360×2100	3200
DB-360GF	360	450	396	495	6ZTAA13-G4	3250×1360×2100	3200
DB-380GF	380	475	420	525	QSZ13-G5	3250×1360×2100	3200
DB-400GF	400	500	440	550	QSZ13-G3	3250×1360×2100	3200

2. CCEC Cummins open type diesel generators

Genset Model	Generating Set Output				CCEC Cummins Engine Model	Size
	Prime Power		Standby Power			Dimension( LxWx H:mm )	Weight(kg)
	KW	KVA	KW	KVA		Dimension( LxWx H:mm )	Weight(kg)
DB-200GF	200	250	220	275	MTA11-G2	2900×1000×1800	2250
DB--200GF	200	250	220	275	NT855-GA	2900×1000×1800	2300
DB--200GF	200	250	220	275	QSNT-G6	3200×1200×1900	2400
DB--240GF	240	300	260	325	NTA855-G1A	3000×1040×1655	2600
DB--240GF	240	300	260	325	QSNT-G7	3270×1140×1800	3200
DB--250GF	250	313	280	350	MTA11-G3	3000×1000×1800	2500
DB--260GF	260	325	290	363	NTA855-G1B	3000×1060×1800	2550
DB--260GF	260	325	290	363	QSNT-G1	3200×1200×1900	2700
DB--260GF	260	325	290	363	NTA855-G1B	3000×1060×1900	2600
DB-280GF	280	350	310	388	NTA855-G2A	3000×1060×1900	2600
DB-280GF	280	350	310	388	NTA855-G4	3200×1200×1900	2850
DB-300GF	300	375	330	413	KTA19-G2	3450×1400×2000	3550
DB-300GF	300	375	330	413	QSNT-G2	3200×1200×1900	2700
DB-300GF	300	375	330	413	NTAA855-G7	3200×1200×1900	2850
DB-320GF	320	400	350	438	QSNT-G3	3200×1200×1900	3000
DB-330GF	330	413	360	450	NTAA855-G7A	3200×1200×2000	3250
DB-360GF	360	450	400	500	QSNT-G3	3400×1360×2070	3550
DB-360GF	360	450	400	500	QSK19-G14	3600×1550×2200	3400
DB-400GF	400	500	440	550	QSNT-G4X	3200×1200×2000	3400
DB-400GF	400	500	440	550	KTA19-G3A	3450×1400×2000	3550
DB-400GF	400	500	440	550	KTA19-G4	3450×1400×2000	3750
DB-400GF	400	500	440	550	QSK19-G13	3600×1550×2200	3850
DB-430GF	430	538	470	588	KTAA19-G5	3450×1500×2200	3900
DB-450GF	450	563	500	625	QSK19-G12	3600×1550×2200	3850
DB-470GF	470	588	520	650	QSK19-G6	3600×1550×2200	3850
DB-480GF	480	600	530	663	KTAA19-G6	3450×1500×2200	4300
DB-480GF	480	600	530	663	KTA19-G8	3450×1500×2200	4400
DB-500GF	500	625	550	688	KTAA19-G6A	3450×1500×2200	4350
DB-500GF	500	625	550	688	KT38-G	4200×1820×2200	4700
DB-500GF	500	625	550	688	QSK19-G7	3500×1600×2200	4580
DB-520GF	520	650	570	713	QSK19-G4	3500×1600×2200	4580
DB-550GF	550	688	600	750	QSK19-G11	3500×1600×2200	4580
DB-550GF	550	688	600	750	QSKTAA19-G11X	3500×1600×2200	5200
DB-600GF	600	750	660	825	KTA38-GA	4500×2000×2300	6100
DB-600GF	600	750	660	825	KTA38-G2	4500×2000×2300	6350
DB-600GF	600	750	660	825	QSK38-G6	4200×1820×2250	7700
DB-640GF	640	800	700	875	QSK38-G7	4200×1820×2250	7700
DB-640GF	640	800	700	875	QSK38-G8	4300×2060×2430	7800
DB-650GF	650	813	720	900	KTA38-G2B	4300×2060×2430	6900
DB-740GF	740	925	810	1013	KTA38-G2A	4500×2000×2300	6800
DB-800GF	800	1000	880	1100	KTA38-G5	4500×2000×2300	6900
DB-800GF	800	1000	880	1100	QSK38-G1	4800×2080×2350	8000
DB-900GF	900	1125	1000	1250	QSK38-G2	4800×2080×2350	8500
DB-900GF	900	1125	1000	1250	KTA38-G9	4500×2000×2300	8600
DB-1000GF	1000	1250	1100	1375	KTA50-G3	5200×2250×2500	11300
DB-1000GF	1000	1250	1100	1375	QSK38-G5	4500×2000×2350	8900
DB-1100GF	1100	1375	1200	1500	QSK38-G5A	5200×2250×2500	11500
DB-1100GF	1100	1375	1200	1500	KTA50-G8	5200×2250×2500	11800
DB-1200GF	1200	1500	1320	1650	KTA50-GS8	5200×2250×2500	11800
DB-1500GF	1500	1875	1650	2063	KTA50-G15	5200×2250×2500	12300

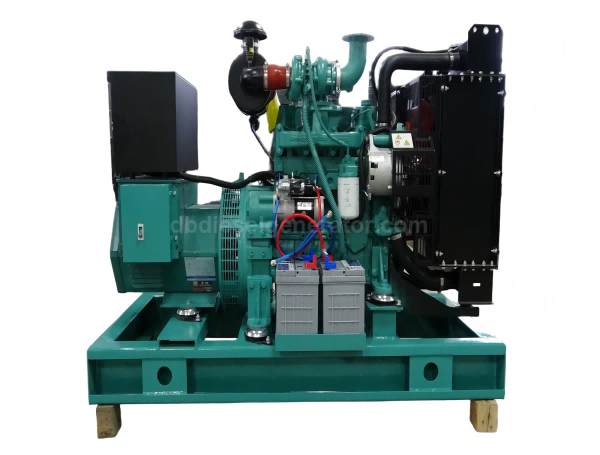

1. DCEC Cummins open type diesel generators

Genset Model	Generating Set Output				DCEC Cummins Engine Model	Size
	Prime Power		Standby Power			Dimension(LxWxH:mm )	Weight(kg)
	KW	KVA	KW	KVA		Dimension(LxWxH:mm )	Weight(kg)
DB-55GF	55	68	60	75	4BTA3.9-G2	1850×850×1300	820
DB-68GF	68	85	75	94	4BTA3.9-G11	1850×850×1300	900
DB-91GF	91	114	100	125	6BT5.9-G2	2200×850×1600	1060
DB-109GF	109	136	120	150	6BTA5.9-G2	2300×850×1600	1080
DB-114GF	114	142	125	156	6BTAA5.9-G2	2450×850×1600	1150
DB-136GF	136	170	150	188	6BTAA5.9-G12	2450×850×1600	1150
DB-159GF	159	199	175	219	6CTA8.3-G2	2450×850×1800	1450
DB-173GF	173	216	190	238	6CTAA8.3-G2	2600×950×1800	1860
DB-208GF	208	260	228	286	6LTAA8.9-G2	2800×1000×1800	2000
DB-227GF	227	284	250	313	6LTAA8.9-G3	2800×1000×1800	2300
DB-282GF	282	352	310	388	QSM11-G2	3420×1050×1650	2650
DB-227GF	227	284	250	313	6LTAA9.5-G3	2800×1000×1800	2300
DB-250GF	250	313	275	344	6LTAA9.5-G1	2800×1000×1800	2500
DB-318GF	318	398	350	438	6ZTAA13-G3	3250×1360×2100	2700
DB-320GF	320	400	352	440	QSZ13-G6	3250×1360×2100	3200
DB-360GF	360	450	396	495	QSZ13-G7	3250×1360×2100	3200
DB-355GF	355	443	390	488	6ZTAA13-G2	3250×1360×2100	2700
DB-364GF	364	455	400	500	QSZ13-G2	3250×1360×2100	3200
DB-360GF	360	450	396	495	6ZTAA13-G4	3250×1360×2100	3200
DB-382GF	382	477	420	525	QSZ13-G5	3250×1360×2100	3200
DB-409GF	409	511	450	563	QSZ13-G3	3250×1360×2100	3200

2. CCEC Cummins open type diesel generators

Genset Model	Generating Set Output				CCEC CumminsEngine Model	Size
	Prime Power		Standby Power			Dimension( LxWxH:mm )	Weight(kg)
	KW	KVA	KW	KVA		Dimension( LxWxH:mm )	Weight(kg)
DB-220GF	-	-	220	275	NT855-GA	2900×1000×1800	2300
DB-200GF	200	250	220	275	QSNT-G6	3200×1200×1900	2400
DB-240GF	240	300	260	325	QSNT-G7	3270×1140×1800	3200
DB-320GF	320	400	350	438	QSNT-G3	3200×1200×1900	2400
DB-250GF	250	313	275	344	NTA855-G1	3000×1060×1800	2550
DB-275GF	275	344	300	375	NTA855-G1B	3000×1060×1900	2600
DB-275GF	275	344	300	375	NTA855-G2	3000×1060×1900	2600
DB-315GF	315	394	350	438	NTA855-G3	3200×1200×1900	2850
DB-350GF	350	438	400	500	KTA19-G2	3450×1400×2000	3550
DB-450GF	450	563	500	625	KTA19-G3A	3450×1400×2000	3550
DB-450GF	450	563	500	625	KTA19-G4	3450×1400×2000	3750
DB-470GF	470	588	550	688	KTAA19-G5	3450×1500×2200	3900
DB-500GF	500	625	570	713	QSK19-G4	3500×1600×2200	4580
DB-550GF	550	688	600	750	QSK19-G5	3500×1600×2200	4580
DB-545GF	545	682	650	813	QSK19-G8	3500×1600×2200	4580
DB-600GF	-	-	600	800	KTAA19-G6A	3450×1500×2200	4350
DB-620GF	620	775	680	850	KT38-G	4200×1820×2200	4700
DB-700GF	700	875	770	963	KTA38-G1	4500×2000×2300	6100
DB-600GF	725	906	800	1000	KTA38-G2	4500×2000×2300	6350
DB-800GF	800	1000	880	1100	KTA38-G2A	4500×2000×2300	6800
DB-750GF	750	938	830	1038	KTA38-G2B	4500×2000×2300	6800
DB-900GF	900	1125	1000	1250	KTA38-G4	4500×2000×2300	6900
DB-960GF	960	1200	1150	1438	QSK38-G5	4200×1820×2250	7700
DB-1100GF	-	-	1100	1375	KTA38-G9	4500×2000×2300	8600
DB-1100GF	1100	1375	1260	1575	KTA50-G3	5200×2250×2500	11300
