What Are the 9 Main Components of A Diesel Generator?

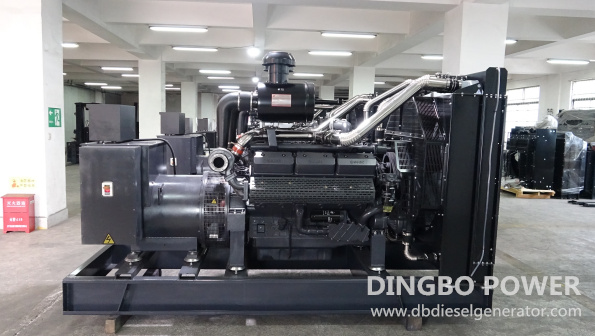

Diesel generators are widely used across many industries due to their high reliability, fuel efficiency, and low maintenance costs. Their complex and multifunctional structure consists of two core components—the diesel engine and the alternator—alongside auxiliary systems such as the control system, cooling system, fuel system and so on. Below are the 9 main components of a diesel generator set.

1. Diesel Engine

The diesel engine is the heart of the generator set, generating power through diesel combustion. Its key components include the cylinder block, pistons, connecting rods, and crankshaft. Its operation follows a four-stroke cycle:

Intake: Air enters the cylinder.

Compression: Air is compressed, raising its temperature.

Combustion: Fuel is injected and ignites, driving the piston.

Exhaust: Burned gases are expelled.
Each cycle completes with a half-rotation of the crankshaft, delivering continuous power output.

2. Alternator

The alternator in diesel generator converts the engine’s mechanical energy into electricity. Its key components include the stator, rotor, windings, and bearings, all made from high-strength electromagnetic materials for stable, efficient performance. Alternating current (AC) generators rely on electromagnetic induction, where the electromotive force depends on magnetic flux density, conductor length, and motion speed.

3. Control System

This system monitors and regulates the diesel generator’s operation by adjusting fuel supply, speed, and other parameters. It includes:

Sensors: Track temperature, pressure, speed, etc.

Controller: Processes data and sends commands.

Actuators: Adjust fuel injection, ignition timing, etc., to optimize performance.

4. Cooling System

The diesel generator cooling system prevents overheating using water-cooling or air-cooling. Water-cooling circulates coolant through the engine block, while air-cooling relies on forced convection.

5. Fuel System

The fuel system is mainly responsible for delivering precise fuel amounts for combustion. Its main components include:

Fuel tank: Stores diesel.

Fuel pump: Transfers fuel.

Filter: Removes impurities.

Injectors: Spray fuel into cylinders.

6. Lubrication System

The lubrication system of diesel genset reduces wear, cools components, cleans residues, and prevents corrosion. Its key parts include:

Oil pump: Circulates lubricant.

Oil pan: Holds oil.

Cooler: Maintains oil temperature.
A forced lubrication system ensures oil reaches all critical engine parts.

7. Exhaust System

The exhaust system manages emissions and reduces noise with components like the exhaust pipe, catalytic converter, and muffler. Advanced systems may include SCR (Selective Catalytic Reduction) and urea injection to further cut pollutants.

8. Battery

Batteries provide energy to crank the engine. Upon startup, they power the starter motor to rotate the crankshaft. Faulty batteries can lead to generator failure.

9. Frame

A customized base or enclosure provides structural support, vibration damping, and protection for the generator set.

Every component of a diesel generator plays a vital role in ensuring efficient, reliable power generation. Regular maintenance is essential for long-term stability and performance across diverse applications.
