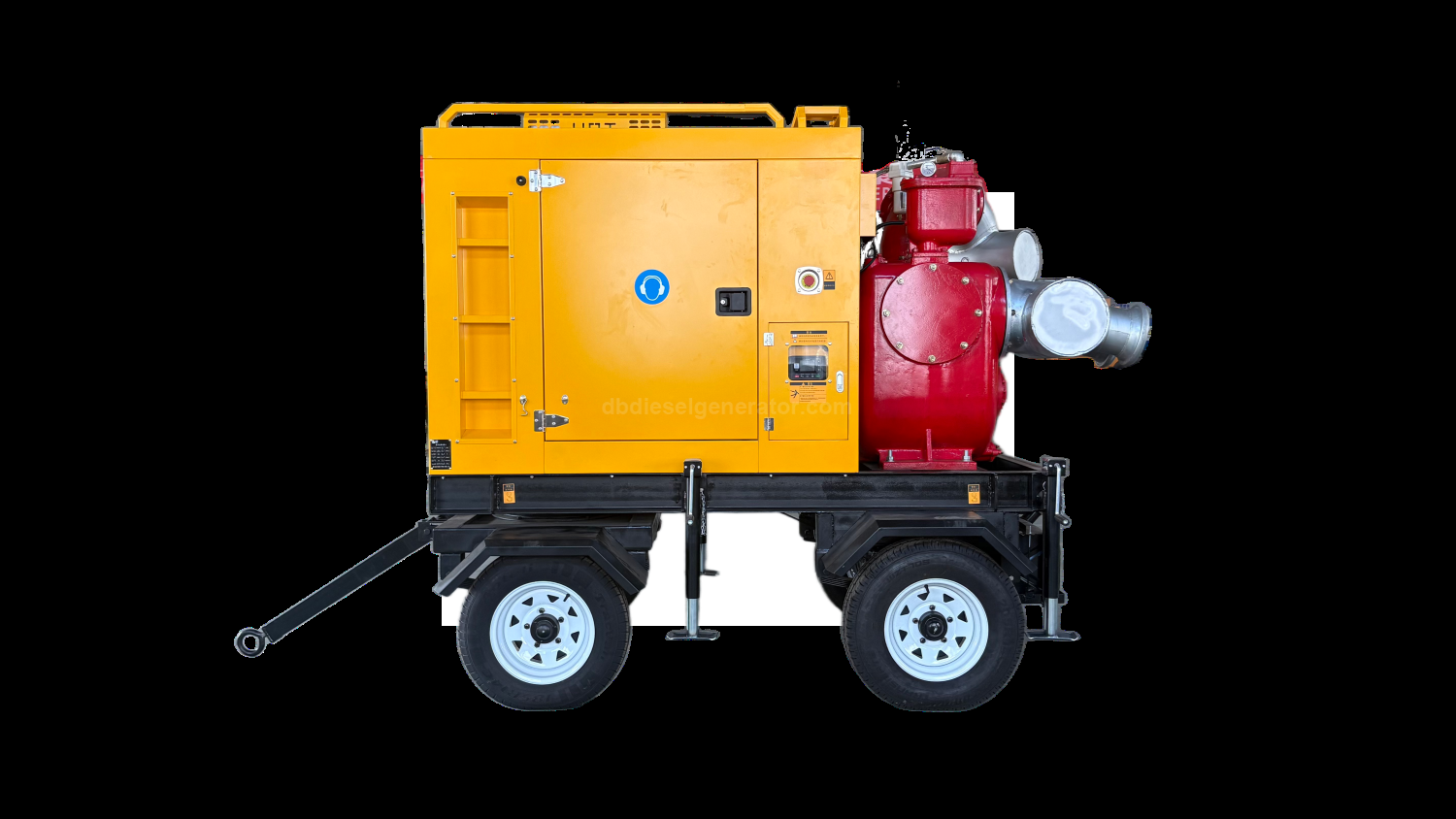

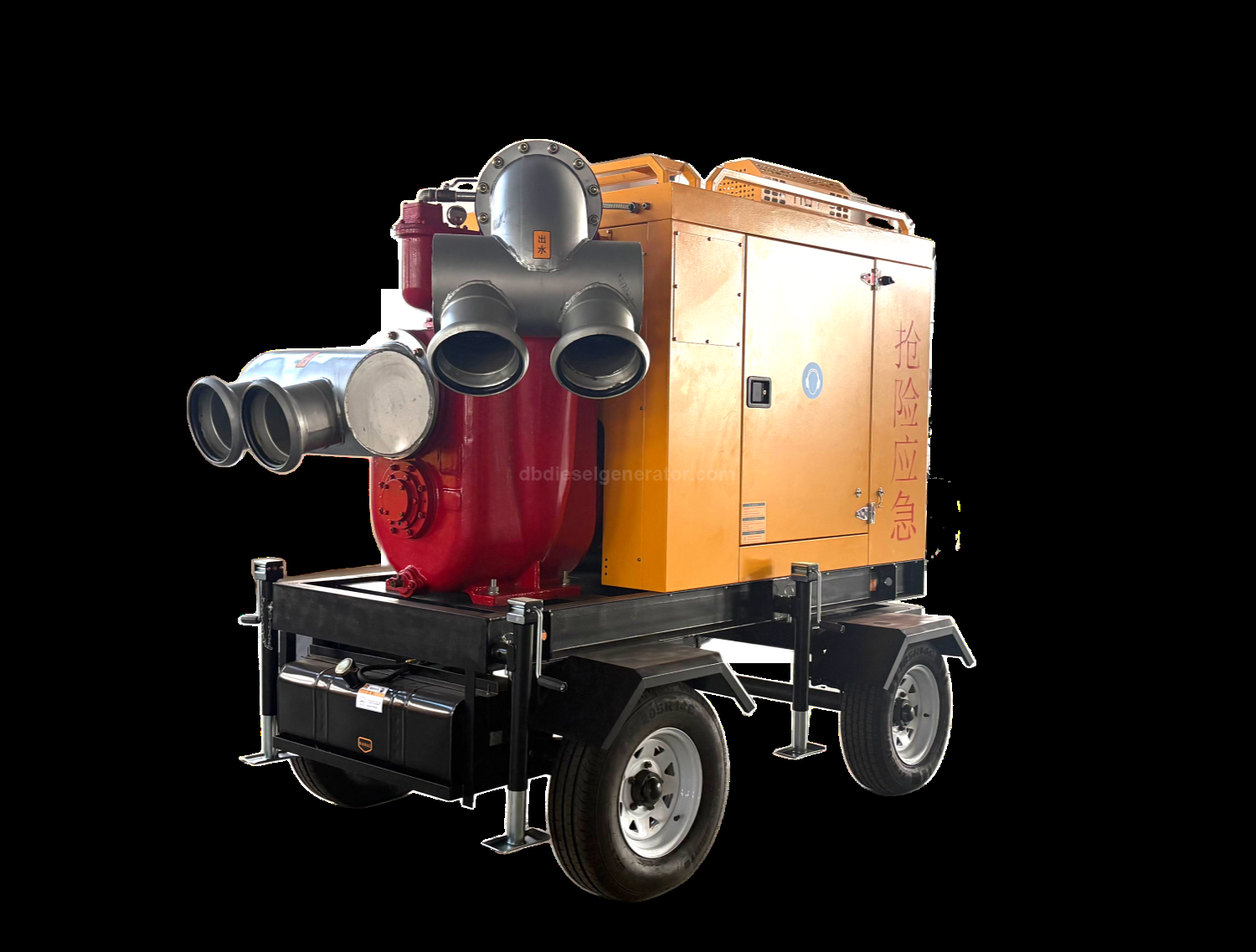

DB1000QZ-25T 1000m3/h Mobile Trailer Diesel Engine Water Pump

YH1000QZ-25T is a trailer-mounted diesel self-priming water pump unit with 1000m³/h flow, 25m head and 8m suction lift. It is powered by a 120kW diesel engine, equipped with a rainproof canopy and 4-wheel mobile trailer. This pump is widely used for flood control, emergency drainage, agricultural irrigation and engineering water supply.

Model:DB1000QZ-25T

Pump type: self-priming pump

Flow rate: 1000 m³/h

Head of delivery :25 meters

Self priming height: 8m

Diesel engine:SDEC Power SC4H180D2 (prime power 120kW)

Speed: 1500r/min

Controller: Intelligent LCD display

For more types, please contact us.

Inquire Now Download Datasheet

Introduction Advantages Technical Parameters Applications Why choose DIngbo Power?

The YH1000QZ-25T mobile trailer diesel water pump unit is a high-efficiency mobile pumping solution built for heavy-duty, high-volume water transfer tasks. It features a powerful 120kW diesel engine paired with a large-capacity pump, delivering a maximum flow rate of 1000m³/h, a 25-meter head, and an 8-meter self-priming lift to meet demanding drainage and irrigation needs. Mounted on a rugged 4-wheel trailer with a fully enclosed rainproof canopy, the unit ensures easy mobility to remote or emergency sites and reliable operation even in harsh weather conditions. Its dual DN200 inlets enable fast water intake, supporting up to 8 hours of continuous stable operation without frequent stops. Compared to fixed pumps, this model offers unmatched flexibility, quick setup, and low maintenance requirements, making it ideal for flood control, urban drainage, farm irrigation, construction dewatering, and temporary water supply projects.

Why Choose Us

Dingbo is original manufacturer of diesel generator set. Factory direct sale, guaranteed quality and affordable price.

Our diesel generator sets are widely used in telecommunications, energy, transportation, real estate, hospital, residential building, data center and other fields, having long-term strategic cooperation with a lot of well-known enterprises. From research and development to production, from raw material procurement, assembly and processing to finished product debugging and testing, each process is strictly implemented, in all aspects meet the national, industry standards and contract provisions of the quality, specifications and performance requirements.

We have a professional and technical team, with an average working experience of more than 10 years in the generator industry. In the spirit of "keep improving", they actively collect and attract advanced technology and products at home and abroad, and constantly update the products, so that our diesel generators have been recognized by the majority of users.

If a customer can not find his supplier to support them when equipment has problem, after sales service is not guaranteed, which is a very helpless thing. While we have perfect after-sales service to support you to solve problem, it's not that you can't find us after you have a problem on your equipment. We will be with you and solve your problems with heart.

Export Case

So far, our diesel genset sold to Ethiopia, Venezuela, Singapore, Nigeria, Thailand, U.S.A etc. all over the world, both having good feedback from customers.

Diesel generators

Specific Project Cases:

https://www.dbdieselgenerator.com/project-case/

FAQ

1. Do you have your own factory?

Yes, we have. Welcome to visit our factory.

2. What is the delivery time and do you have product in stock?

Delivery time depends on order quantity. Generally, within 10 days for open genset, 20 days for silent genset. We have some power capacities in stock, if need details, please contact us.

3. What is your warranty period?

Our warranty is 1 year or 1000running hours whichever comes first. But based on some special project, we can extended our warranty period.

4. Does your generator have global warranty?

Yes, We supply the warranty. Also most of our products like Cummins, Volvo, Perkins, Deutz, Doosan, Yuchai, Weichai etc. power generator enjoy the global warranty service. And the alternator we use like Stamford and marathon also enjoy the global warranty service, so you do not need to worry about the after-sales service.

5. What is your payment terms?

We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight. But based on some special project and special order, we can do something on payment item.

6. Do you provide OEM service?

Yes, we can put your company logo on our diesel genset, just tell us your requirements, then we will do it for you.

Our Service

Before service

Our professional engineer will give you some consultation of technology and related planning before sale, such as selection of equipment, supporting facilities, the design of equipment room. We can also answer and solve the using problem you faced.

After sale service

1. Free guide to install and debugging

2. Free training and consult

3. Guiding how to protect your equipment

4. We will set up clients' document, tracking service, regular inspection, maintenance for life

5. We offers pure perennial spare parts and maintenance engineers will be ready to provide.

Dingbo Cloud on line service will help you to manage your equipment, save cost and improve efficiency.

The advantages of 12kW 15kVA diesel water pump:

Superior Pumping Performance:
Delivers a high flow rate of 1000m³/h, a 25m head, and an 8m self-priming lift, ensuring efficient and fast water transfer even in deep or remote water sources.
Reliable Diesel Power:
Equipped with a 120kW diesel engine, offering strong power output, stable operation, and long continuous working hours for demanding projects.
Mobile & Flexible Design:
Mounted on a rugged 4-wheel trailer with a rainproof canopy, it can be quickly deployed to flood zones, construction sites, or farmlands without complex installation.
Dual Inlet Efficiency:
The DN200 dual inlet design allows for faster water intake, reducing the risk of clogging and improving overall pumping efficiency.
All-Weather Durability:
The enclosed rainproof canopy protects the engine and pump from rain, dust, and harsh environments, ensuring reliable operation in outdoor conditions.
Low Maintenance Cost:
Built with high-quality components and a simple structure, it requires minimal upkeep, reducing long-term operational costs and downtime.
Versatile Applications:
Ideal for flood control, emergency drainage, agricultural irrigation, construction dewatering, and temporary water supply in remote areas.

Model		DB1000QZ-25T
Product Usage		1. Collecting pits or well points for water discharge. 2. Urban drainage. 3. Emergency rescue and flood discharge. 4. Farm irrigation. 5. Remote water supply for firefighting. 6. Fire emergency rescue. 7. Mine drainage, etc
Diesel engine water pump set	Water Inlet diameter {mm}	DN200（8"）x2
	Water outlet diameter {mm}	DN200（8"）x2
	Flow rate {cubic meter/hour}	1000
	Lift {meters}	25
	Self suction height {meters}	8
	Diesel engine power {kW}	120kw
	Diesel engine speed	1500r/min
	Fuel capacity {liters}	250（Can work continuously for 8 hours）
Mobile trailer	tire type	Car tires/inflatable tires
	Number of tires {only}	4
	Weather resistant shell material	2mm high-quality steel plate+outdoor spray painted paint
	movement speed	30km/h
	Length x Width x Height {millimeters}	3250×1840×1950
	Packing size: length x width x height {millimeters}	3450×2040×2550
	Weight {kg}	2850

The applications of 12kW 15kVA DB1000QZ-25T

Flood Control & Emergency Drainage:
Ideal for urban and rural flood relief, fast dewatering of flooded areas, and rapid water removal from low-lying zones.
Agricultural Irrigation & Water Supply:
Supports large-scale farm irrigation, pond water transfer, and water supply for remote farmlands.
Construction Site Dewatering:
Used for foundation pit dewatering, construction site drainage, and temporary water supply for engineering projects.
Municipal & Disaster Relief:
Deployed in municipal emergency works, disaster response operations, and temporary water transfer tasks.
Industrial & Mining Use:
Suitable for mine drainage, factory wastewater transfer, and water supply for remote industrial sites.

Why choose DIngbo Power 12kW 15kVA DB1000QZ-25T

As a professional manufacturer of power equipment with years of industry experience, we are committed to providing reliable and high-quality diesel generators, water pumps and related solutions. Our products are built with high-quality components and undergo strict quality control to ensure stable performance and long service life even in harsh working environments. We also offer customized design services to meet your specific project needs, along with competitive pricing, short lead times and comprehensive after-sales support including global technical assistance and maintenance guidance. By choosing Dingbo Power, you gain a trusted partner dedicated to delivering durable, efficient and cost-effective power solutions that support the success of your projects.
