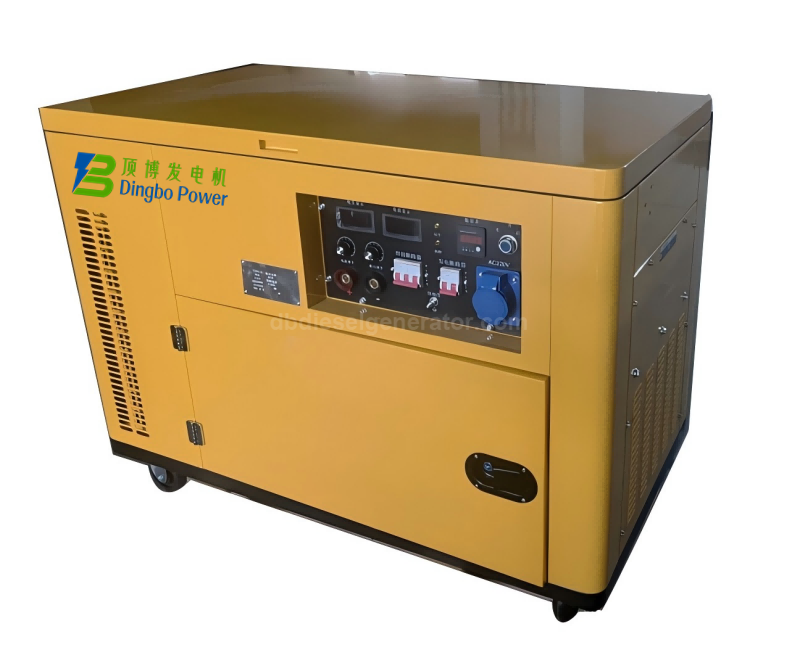

Silent Type 200A Diesel Welding Generator

Model No.:DB-AXC-200A

Welding Type: Manual welding//Argon arc Welding

No Load Voltage: 65V

Welding Voltage: 28V

Welding Current: 0-200A

Duty Cycle: 60%

Electrode Diameter: 2.5mm-3.2mm

Noise Level: 78 dBA/7m

For more types, please contact us.

Inquire Now Download Datasheet

Introduction Advantage Technical Parameters 50Hz 60Hz

With a 60% duty cycle, Dingbo Power DB-AXC-200A silent diesel welder generators use adjustable amperage from 0 to 200 Amp for steady welding. They are suitable for applications such as pipeline welding, construction, maintenance, and repairs.

Why Choose Us

Dingbo is original manufacturer of diesel generator set. Factory direct sale, guaranteed quality and affordable price.

Our diesel generator sets are widely used in telecommunications, energy, transportation, real estate, hospital, residential building, data center and other fields, having long-term strategic cooperation with a lot of well-known enterprises. From research and development to production, from raw material procurement, assembly and processing to finished product debugging and testing, each process is strictly implemented, in all aspects meet the national, industry standards and contract provisions of the quality, specifications and performance requirements.

We have a professional and technical team, with an average working experience of more than 10 years in the generator industry. In the spirit of "keep improving", they actively collect and attract advanced technology and products at home and abroad, and constantly update the products, so that our diesel generators have been recognized by the majority of users.

If a customer can not find his supplier to support them when equipment has problem, after sales service is not guaranteed, which is a very helpless thing. While we have perfect after-sales service to support you to solve problem, it's not that you can't find us after you have a problem on your equipment. We will be with you and solve your problems with heart.

Export Case

So far, our diesel genset sold to Ethiopia, Venezuela, Singapore, Nigeria, Thailand, U.S.A etc. all over the world, both having good feedback from customers.

Diesel generators

Specific Project Cases:

https://www.dbdieselgenerator.com/project-case/

FAQ

1. Do you have your own factory?

Yes, we have. Welcome to visit our factory.

2. What is the delivery time and do you have product in stock?

Delivery time depends on order quantity. Generally, within 10 days for open genset, 20 days for silent genset. We have some power capacities in stock, if need details, please contact us.

3. What is your warranty period?

Our warranty is 1 year or 1000running hours whichever comes first. But based on some special project, we can extended our warranty period.

4. Does your generator have global warranty?

Yes, We supply the warranty. Also most of our products like Cummins, Volvo, Perkins, Deutz, Doosan, Yuchai, Weichai etc. power generator enjoy the global warranty service. And the alternator we use like Stamford and marathon also enjoy the global warranty service, so you do not need to worry about the after-sales service.

5. What is your payment terms?

We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight. But based on some special project and special order, we can do something on payment item.

6. Do you provide OEM service?

Yes, we can put your company logo on our diesel genset, just tell us your requirements, then we will do it for you.

Our Service

Before service

Our professional engineer will give you some consultation of technology and related planning before sale, such as selection of equipment, supporting facilities, the design of equipment room. We can also answer and solve the using problem you faced.

After sale service

1. Free guide to install and debugging

2. Free training and consult

3. Guiding how to protect your equipment

4. We will set up clients' document, tracking service, regular inspection, maintenance for life

5. We offers pure perennial spare parts and maintenance engineers will be ready to provide.

Dingbo Cloud on line service will help you to manage your equipment, save cost and improve efficiency.

Dual output capability: The same unit provides both single-phase and three-phase AC output at identical power ratings. The AC output is suitable for grinding, cutting, lighting, and other applications.

Superior welding performance:

Automatic voltage fluctuation compensation.

Automatic arc force compensation.

Stable welding current.

Excellent dynamic characteristics with fast response.

Minimal spatter and strong penetration.

Continuously and precisely adjustable welding current.

Wide applicability: Ideal for use in power utilities, municipal projects, the chemical industry, water supply and the construction of gas pipelines and so on.

Quiet operation: Equipped with a soundproof enclosure for low noise emission.

Model No.		DB-AXC-200A
Alternator	Rated Power (W)	7000
	Max. Power(W)	8000
	Rated Speed(r/min)	3000
	Rated Frequency(Hz)	50
	Rated Voltage(V)	230/400
	Phase	Single Phase/Three Phase
Engine	Engine Model	195
	Engine Type	1 Cylinder, 4-Stroke, Air-cooled, vertical type
	Bore x Stroke (MM)	95x75
	Displacement(L)	0.531
	Fuel consumption(L/ h)	2.4
	Oil capacity(L)	1.7
	Ignition system	Compression ignition
	Starting Type	Electric Start
	Fuel Type	Diesel：0#(Summer)-10#(Winter)-35#(severe cold)
Welding machine	Welding Type	Manual Welding/Argon arc Welding
	Welding no-load voltage(V)	65
	Welding Voltage(V)	28
	Welding current (A)	0-200
	Duty Cycle(%)	60
	Electrode Diameter(mm)	2.5-3.2
Auxiliary configuration	Fuel Tank capacity (L)	20
	Continuous Working Hours (h)	8
	Battery capcity	12V-32AH maintenance-free battery
	Engine oil Alarm	√
	Fuel indicator	√
	Noise Level(dBA/7meters)	78
	Dimensions(MM)	1200X650X930
	Weight (KG)	228
