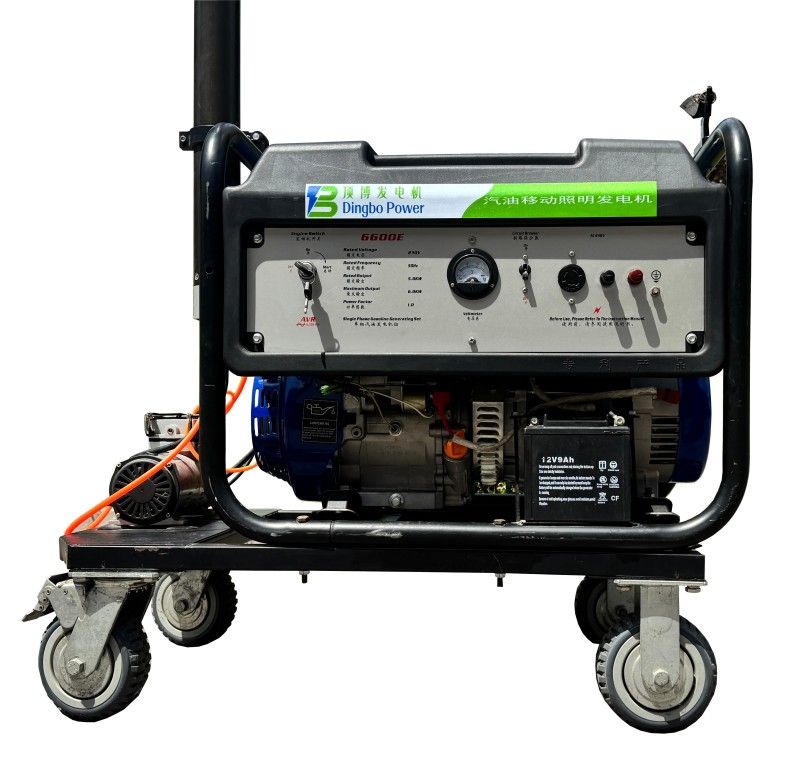

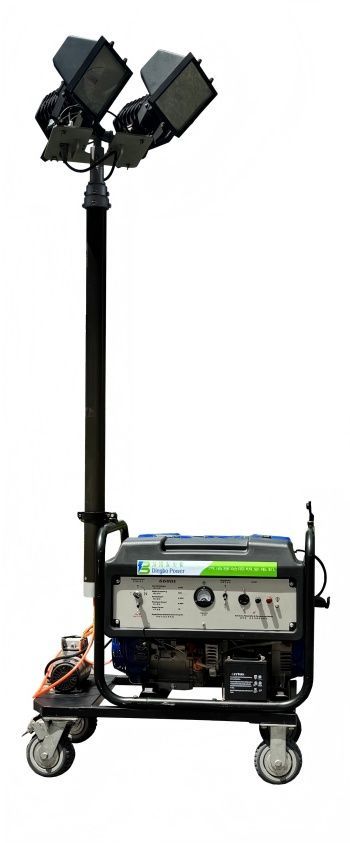

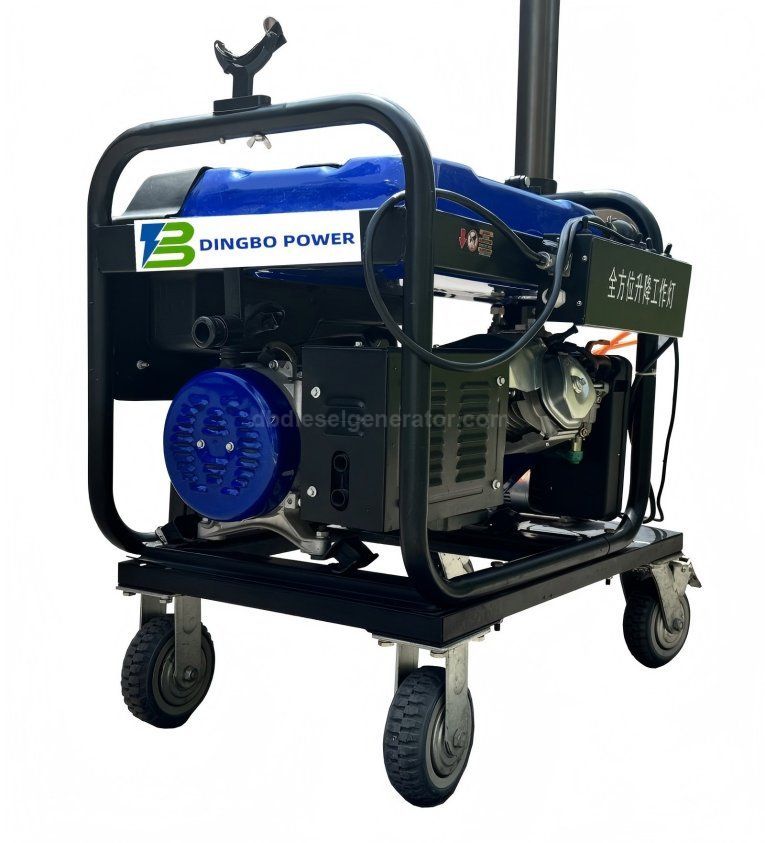

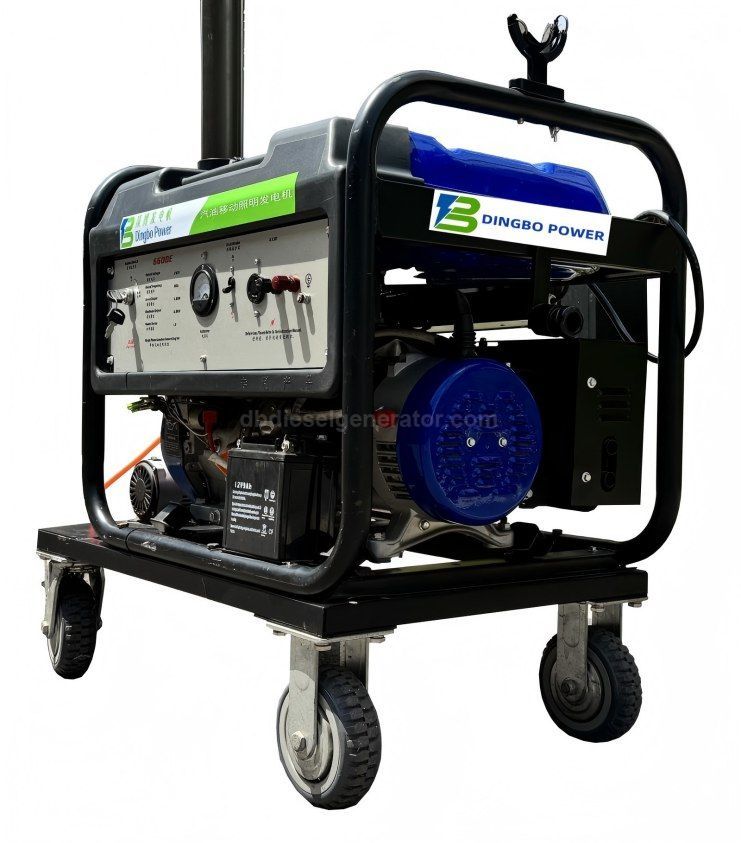

5KW Mobile Gasoline Lighting Tower

Dingbo Power 5kW gasoline-powered mobile lighting tower serves diverse applications, primarily in outdoor operations, disaster relief and rescue operations, road maintenance, and emergency lighting scenarios.

Inquire Now Next Product

Introduction Advantage Technical Parameters 50Hz 60Hz

Product features of 5kW LED mobile lighting tower with gasoline generator:

1. Features four high-efficiency independent 1000W Philips lamp heads. Each lamp can be rotated with wide-angle vertical/horizontal adjustment for 360° omnidirectional illumination according to on-site requirements.

2. Extends to 4.5m max height via 3-section telescopic pneumatic mast. The light beam angle can be adjusted by rotating the lamp head up and down, and the light coverage radius can reach 45-65 meters.

3. The generator set can be used to provide power directly and it can work continuously for up to 13 hours when the fuel tank is filled up with gasoline. Additionally, it also supports direct 220V AC mains connection.

4. The wireless remote control can control the power on and off of each lamp within 50 meters, and the electric and manual air pumps can be used for rapid mast deployment and retraction.

5. The bottom of the generator is equipped with universal wheels or flange wheels, allowing it to operate on rugged terrain and railway tracks.

5kW mobile gasoline lighting tower technical specifications:

Model No.		DB6600ZM
Alternator	Rated Voltage	230V
	Frequency	50HZ
	Max. Output	5.5KW
	Rated Output	5KW
	Power Factor	1.0
	Insulation Class	F
Engine	Engine Model	190F
	Bore*Stroke	90×66mm
	Displacement	420cc
	Fuel Consumption	374g/kw.h
	Ignition Type	electromagnetic ignition
	Engine Type	1 Cylinder,4-stroke,air-cooled,OHV
	Fuel Type	Gasoline (90# or higher)
	Oil Capacity	0.6L
	Starting Mode	Manual Recoil/Electric Start
Accessory Configuration	Fuel Capacity	25L
	Battery capacity	12V-9AH
	Oil Alarm	√
	Fuel Indicator	√
	Control Panel	√
	Wheels	√
Other Configuration	Noise Level	75dBA/7m
	Lamp Protection Class	IP65
	Lighting Power	4x1000W
	Max Height	4.5m
	Lifting Rod Size	1350x500x800mm
	Lamp Size	600x530x450mm
	Weight	120kg
