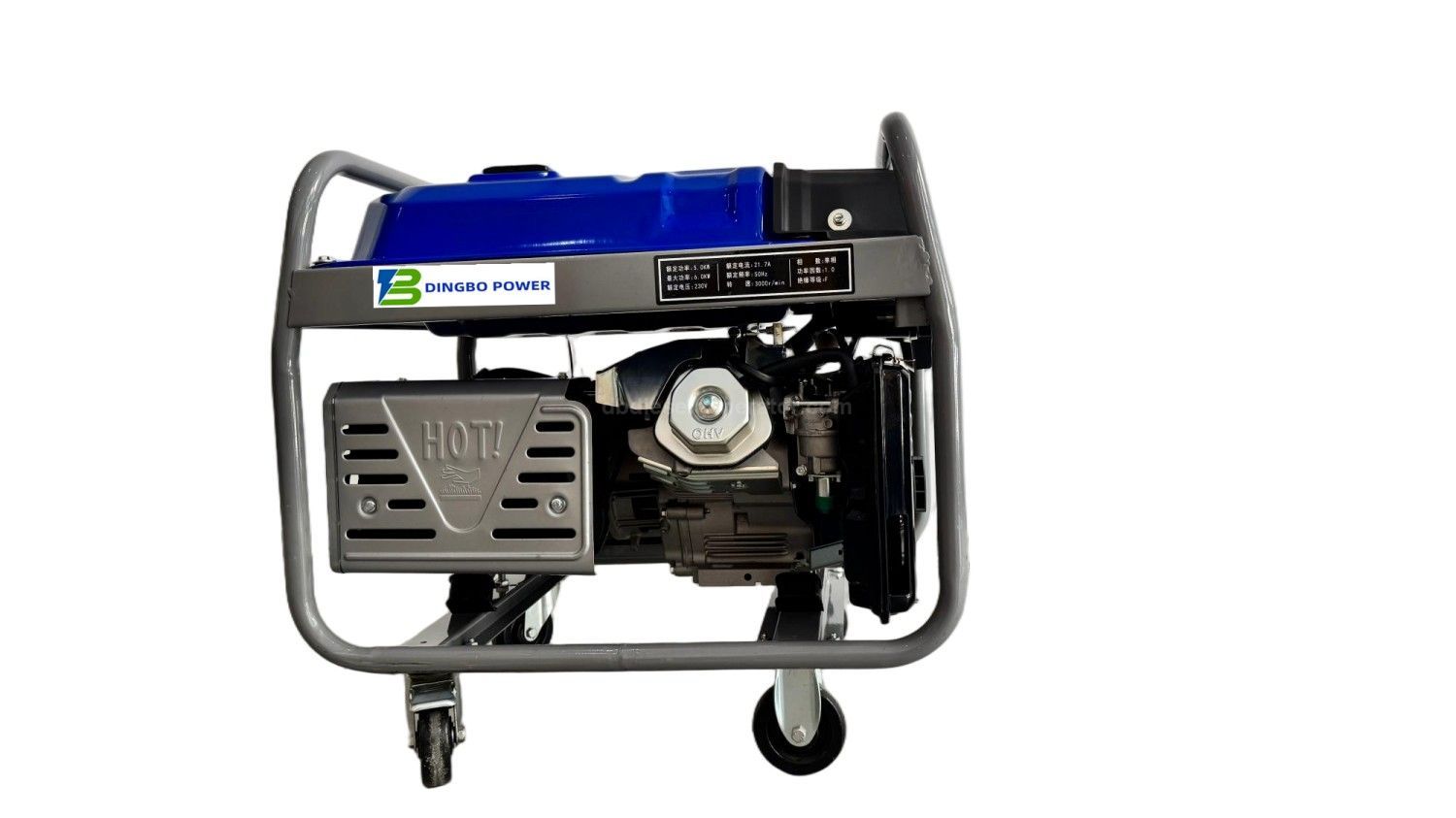

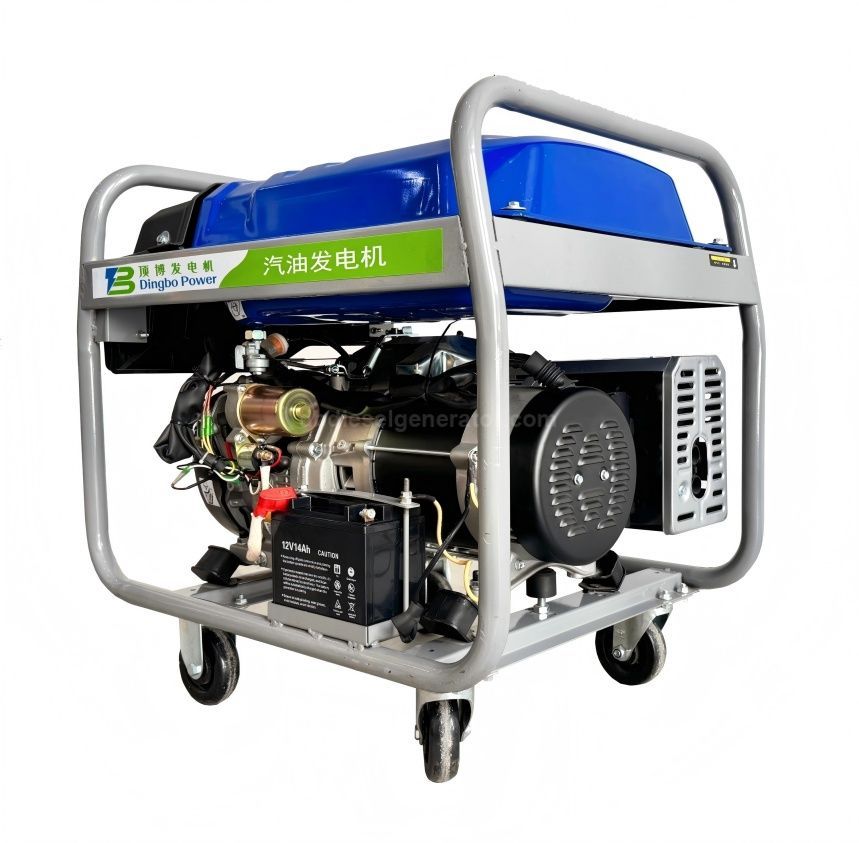

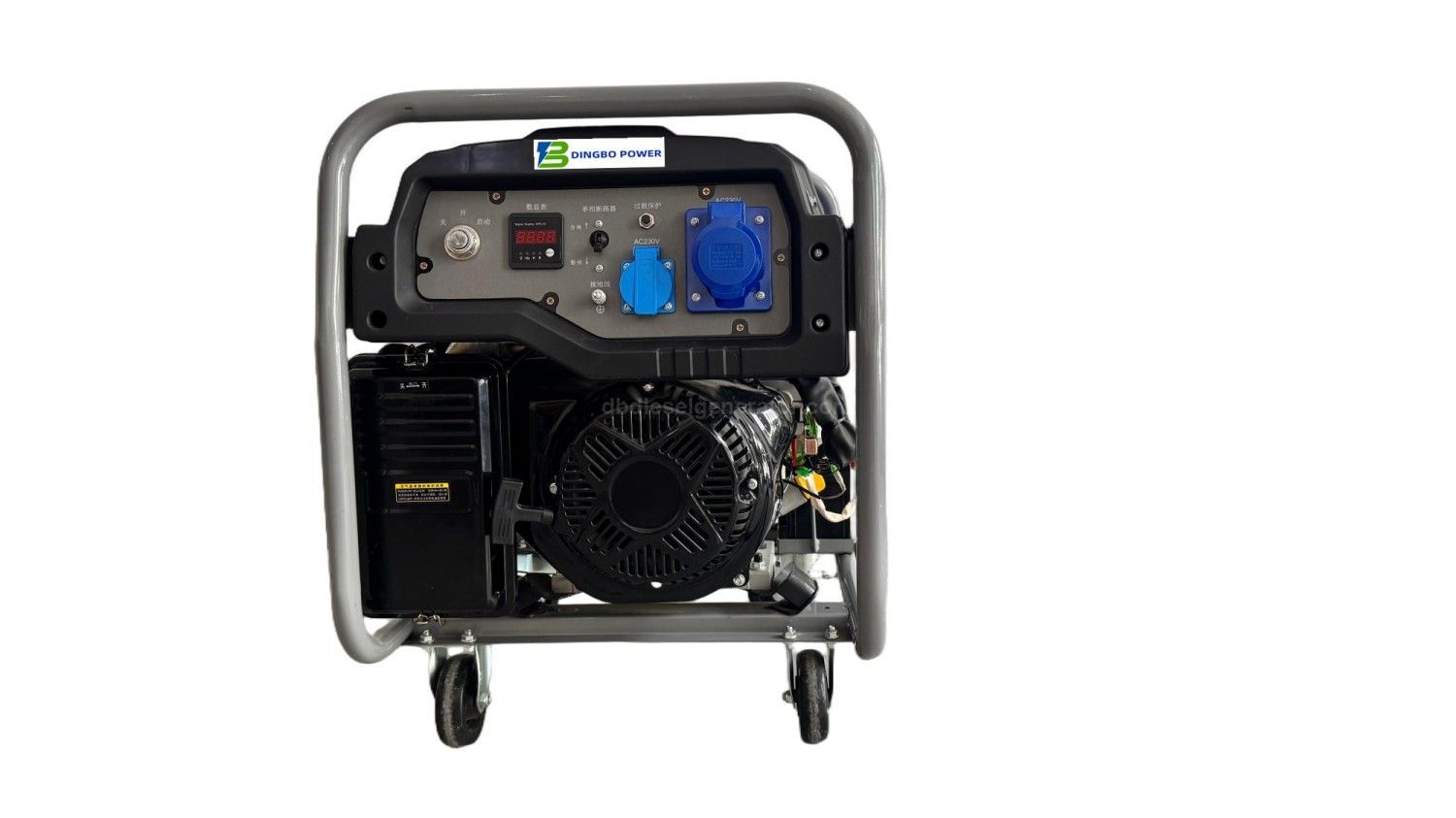

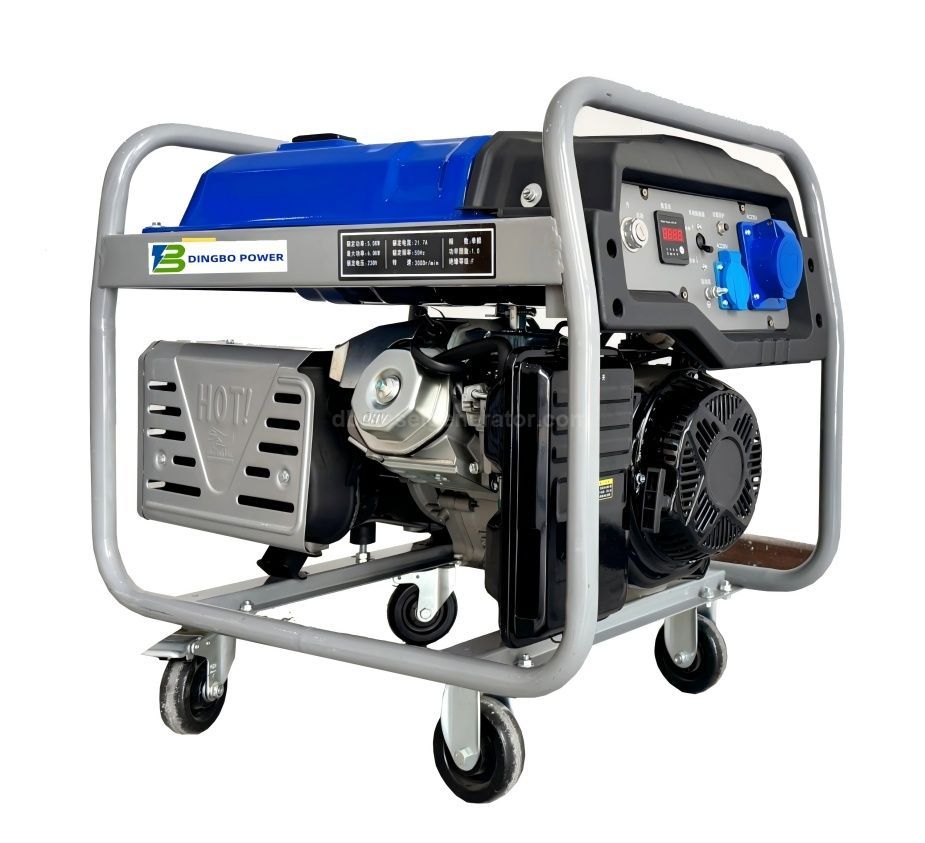

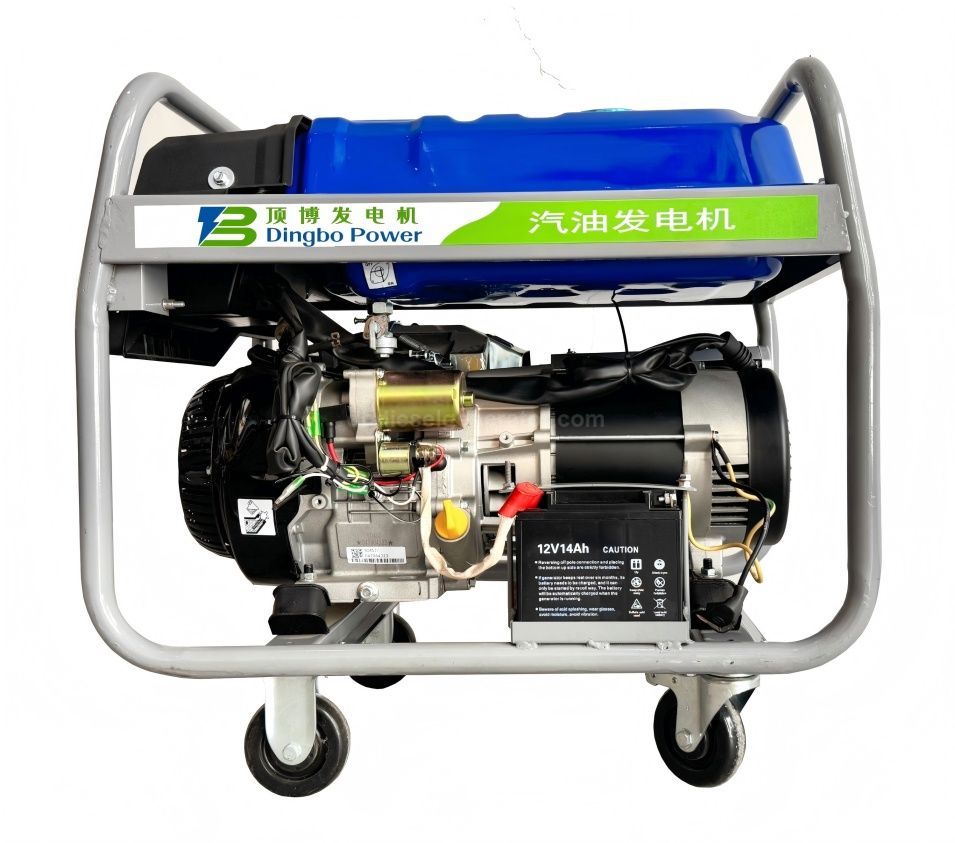

5KW Portable Gasoline Generator with Electric Start

5000 Watt Portable Gasoline Generator

Model:DB6600E

Type: Open type

Rated Power Output:5KW

Rated Voltage: 230V

Rated Frequency: 50Hz

Nosie Level: 75 dBA/7m

For more types, please contact us.

Inquire Now Next Product

Introduction Advantage Technical Parameters 50Hz 60Hz

1. Four-stroke single-cylinder forced air cooled engine delivers low emissions and stable performance.

2. The 100% copper alternator is equipped with AVR automatic voltage regulation, featuring strong power, reliable excitation and convenient maintenance.

3.The heavy-gauge steel frame design makes the generator sturdy and durable and the heavy-duty casters equipped with as standard significantly enhance the generator’s mobility.

4. The generator has overload circuit breaker protection and low-oil shutdown protection.

5 Acoustic-optimized muffler can reduce the noise effectively.

5kw portable gasoline genrator technical specifications:

Genset Model		DB6600E
Alternator	Exciting Type	AVR
	Rated Power	5.0KW
	Max. Power	5.5KW
	Rated Voltage	230V
	Rated Current	21.7A
	Max. Current	26.0A
	Rated Frequency	50HZ
	Phase	Single Phase
	Power Factor(COSφ)	1.0
	Insulation Class	F
Engine	Engine Model	DH190FD
	Bore*Stroke	90x66mm
	Displacement	420cc
	Fuel Consumption	≤374g/kw.h
	Ignition Type	Electromagnetic ignition
	Engine Type	1 Cylinder,4-stroke,air-cooled
	Fuel Type	Gasoline (90# or higher )
	Oil Capacity	1.1L
	Starting Type	Electric Start
Genset	Fuel Tank Capacity	25L
	Battery Capacity	12V-14AH Maintenance-free Battery
	Noise Level	75dBA/7m
	Dimensions	716x531x570mm
	Weight	80kg

Dingbo Power 5kW Portable Gasoline-powered Generator delivers 5,500 peak watts/5,000 running watts. They are ideal for home backup use, recreations, job sites or other commercial applications.
