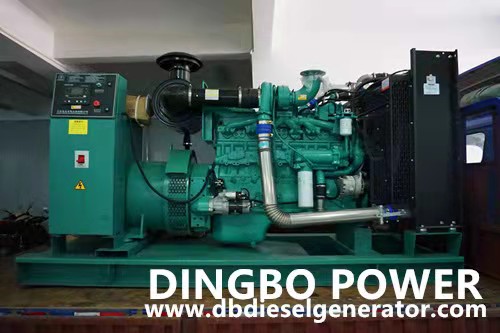

A Diesel Generator Including Two Components And Five Systems

One, combustion chamber components

The combustion chamber assembly is mainly composed of fixed stationary assembly, including the body, cylinder head, cylinder liner, piston assembly and cylinder pad. The components that make up the combustion chamber

In addition to the piston assembly can move, other parts are fixed components. The main function of these components is to form a sealed combustion chamber and complete the diesel generator energy conversion.

Two, power transmission components

The power transmission assembly is mainly composed of moving parts, including connecting rod assembly, crankshaft flywheel assembly and piston assembly. The function of the power transmission assembly is to push the piston forward.

The complex linear motion is transformed into the rotating motion of the crankshaft, and the gas pressure acting on the top of the piston is transformed into torque, which outputs power through the crankshaft and makes heat energy

To mechanical energy.

Fuel supply system

The main function of the fuel supply system is to ensure that when the piston moves upward from BDC to a certain degree before the compression TDC, the timing, quantity and texture of the piston move to the combustion chamber

High pressure atomized fuel is injected internally. Diesel generator fuel supply system mainly includes oil tank, low pressure tubing, oil pump, diesel filter, fuel injection pump, governor, high-pressure tubing and injector, etc.

Four, lubrication system

The function of lubricating oil system is to transport oil (lubricating oil) to the friction surface of the moving parts of the diesel generator to reduce the surface friction of parts and take away parts .Part of the absorbed heat, rinse the surface of parts, improve the sealing effect of the combustion chamber, prevent parts rust. The lubrication system is mainly composed of oil sump, oil suction pan and oil Pump, oil radiator, oil coarse filter, oil fine filter, cylinder head internal oil passage and body internal oil passage and so on.

Five, cooling system

The cooling system is mainly composed of water pump, fan, water radiator, water temperature meter, thermostat, internal sleep of the body and internal channel of the cylinder head. The master of the cooling system to the diesel generator operation of the parts overheating and damage; At the same time, the oil (lubricating oil) is forced to cool.

Six, air distribution system

The air distribution system mainly includes intake pipe, exhaust pipe, air filter, exhaust muffler, intake valve, exhaust valve, tappet, air distribution CAM and transmission gear and other machines

A. The main function of the air distribution system is to open and close the intake and exhaust doors of each cylinder regularly, so as to make the combustion chamber sufficient air intake, exhaust clean, and to achieve sealing good purpose.

Starting and charging system:the main purpose of the starting and charging system is to ensure the punctual starting of the Double Ninth Festival and charging the battery. Starting and charging system mainly includes battery, starter,

Magnetic switch (electromagnetic motor), control button, charge regulator, ac (dc) current generator. Charging circuit, electrical load and control switch, etc.
