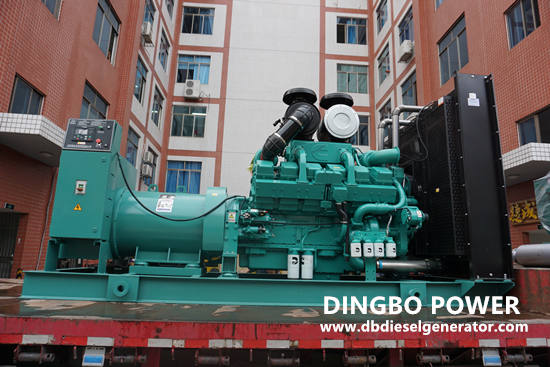

Function of 800kW Diesel Generator Set Intercooler

Today we are going to introduce the function of 800kW diesel generator set intercooler.

The intercooler consists of a shell and an inner core. As a part of the intake manifold of 800kW diesel generator, the inner core is made of pipes, and the water tank of 800kW diesel generator circulates in it. The air flows through the core and is cooled before entering the combustion chamber of 800kW diesel generator. In this way, the application of intercooler can better control the intake air temperature (cooling) of diesel generator, thus improving the combustion phenomenon of diesel generator. Intercooler is an important part of supercharged diesel generator. The purpose of the intercooler is to make the air passing through the supercharger enter the cooling process first, so as to maintain the stable temperature and pressure of the charge air entering the cylinder for combustion. Most of them are installed in front of the radiator of the water tank, and their appearance and composition also have many similarities with the water tank.

The 800kW diesel generator intercooler is used to cool the supercharged air and reduce the inlet air temperature after supercharging. The temperature drop of charge air in intercooler of 800kW diesel generatoris generally 25~60 ℃. On the one hand, it can increase the inflation density, and on the other hand, it can also reduce the cylinder temperature at the end of the intake and the average temperature of the entire cycle. The supercharged diesel generator for power generation generally adopts water-cooled intercooler.

After the turbocharger and intercooler are assembled, the lubricating oil circuit and coolant circuit of the diesel generator are also changed according to the detailed conditions to meet the needs of turbocharging and intercooling.

The internal pipes of the intercooler are often attached with oil sludge, gum and other dirt, which not only narrows the air flow channel, but also weakens the cooling heat exchange capacity, so maintenance and cleaning must be carried out. Generally, the interior of the intercooler shall be cleaned and tested every year or when diesel genset is overhauled and the water tank is welded.

When the diesel generator is rapidly loaded to high speed, some black smoke is discharged from the exhaust pipe. When there is a slight air leakage sound during idle speed operation, attention should be paid to check and repair the source of the air leakage. It is the intercooler inlet hose (supercharger intercooler) that cracked, leading to air leakage. Especially during high-speed operation, a large amount of high-pressure gas from the supercharger leaked from the hose crack, reducing the amount of air entering the cylinder from the chamber, Affects the power output of diesel generator. Causing poor loading at medium to high speeds.

Cleaning plan: add an aqueous solution containing 2% soda ash (the temperature should be 70-80 ℃) into the intercooler, fill it, wait for 15 minutes, and see if there is water seepage in the intercooler. If any, it should be disassembled, inspected, and welded for repair (the same as repairing the water tank); If there is no water seepage, shake it back and forth several times, pour out the washing solution, then fill it with a clean water solution containing 2% pure alkali for flushing until it is relatively clean, and then add clean hot water (80-90 ℃) for cleaning until the discharged water is clean.
