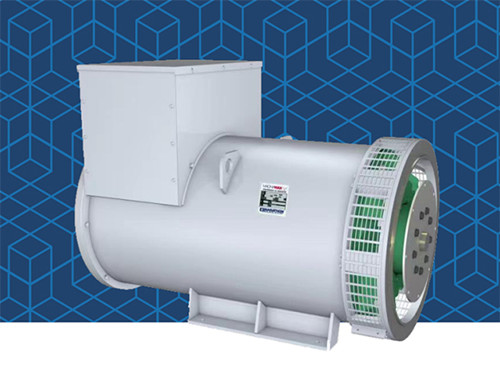

Marathon MAGNAPRO Series Alternator 560~850kW

Recently, Marathon launched a new 570A MAGNAPRO series product with a power of 560kw-850kw, which can provide customers with powerful performance, reliable power output and convenient installation. MAGNAPRO 570 series generators can meet the needs of a variety of application environments. With their efficient operation, excellent corrosion resistance, excellent stability and optimized space volume, they are reliable choices for customers. Generators can provide continuous, standby or emergency power supply for industries, buildings, ports, offshore ships, etc.

The product meets the standard

The MAGNAPRO 570 series generators produced by Marathon meet the requirements of IEC60034, IS08528, GB/T755, GB/T23640 and NEMA MG133 standards.

Product features

Steady state voltage regulation rate ≤± 0.5%

1. Transient voltage regulation rate+20% - 154Un (60% In.cos φ ≤ 0.4 lagging)

2. Voltage regulation range ≥ ± 10% Un

3. Rated voltage: 400V 50Hz/480V 60Hz

4. Class H insulation system

5. It can withstand more than 3 times of continuous short circuit current for 10 seconds

6. 2/3 pitch design

7. Closed ball bearing

8. Single bearing, SAE flange, standard footing (IMB 35)

9. Standard 4-wire system (6-way outgoing line)

10. PM500 voltage regulator DC 0-5V analog quantity regulation

Conditions of Use

11. Ambient temperature not exceeding: 40℃

12. Altitude not exceeding 1000m

If the service conditions do not conform to the above environment, the power output quota must be corrected as required.

The design of this new model of Marathon pays more attention to the practicality of the product. It not only optimizes the appearance and structure, but also improves the electrical performance, which can be used as the power guarantee for continuous use or emergency backup of end customers.

Dingbo Power is a manufacturer of diesel generator in China, founded in 2006. We also supply diesel generators coupling with Marathon alternator, if you are interested, welcome to contact us by email dingbo@dieselgeneratortech.com, we will reply you at any time.
