Diesel Generator Set Data
Model: DB-800GF
Standby power: 800KW/900KVA
Rated current: 1440A
Rated frequency: 50Hz
Power factor: 0.8lag
Rated voltage: 230/400V
Connection way: 3 phase 4 wire
Start Mode: Electric start
Production lead time: 15 to 20 days
For more types, please contact us.

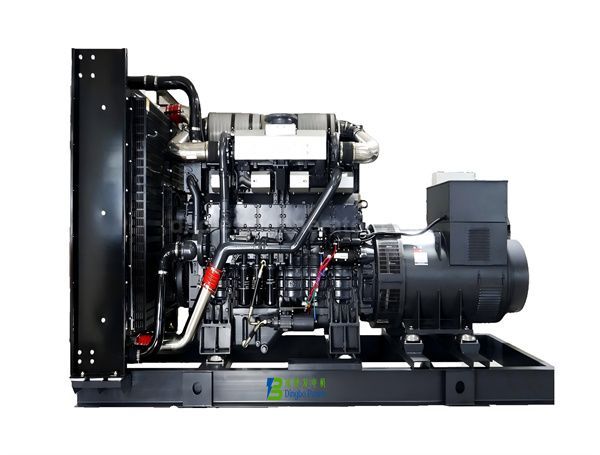

800kw Diesel Generator Set Powered by Shangchai Engine with ISO and Ce
1. Power by Shangchai Engine
2. With Stamford / Leroy Somer / Marathon / ENGGA Alternator
3. With Suyang / CHINT / ABB MCCB & Electronic Components
4. Electric Start with Battery
5. Base Integrated Fuel Tank
6. ATS, Deepsea / ComAp / SmartGen Controller
7. Comply with ISO9001/CE
8. After-sale Services
9. Optional: Silent / open / trailer / containerized type
Engine
*Heavy duty diesel engine
*Four stroke, water cooled
*12V and 24V stater and charge alternator
*Cooling radiator and fan
*Maintenance free battery including ract and cable
*Flexible fuel connection hoses and manual oil sump drain valve
*Exhaust silencer
Alternator
*Brushless, single bearing
*Insulation class: H
*Protection class: IP23
*Self-exciting and Self-regulation
Base Frame
*Integral fuel tank options
*Daily fuel tank continuously supply for 8-24 hours
*Fuel tank easy to maintain and clean
*Anti-vibration pads are flexed between engine and alternator.
Control System
*Control, monitor and protect the Generator Set including:
*High water temperature
*Low oil pressure
*Over and under speed
*Over current
*Under/Over generator voltage
*Start and stop failure
*Low and high battery voltage
*Charge fail
*Emergency stop
Why Choose Us
We are original manufacturer of diesel generator set. Factory direct sale, guaranteed quality and affordable price.
Our diesel generator sets are widely used in telecommunications, energy, transportation, real estate, hospital, residential building, data center and other fields, having long-term strategic cooperation with a lot of well-known enterprises. From research and development to production, from raw material procurement, assembly and processing to finished product debugging and testing, each process is strictly implemented, in all aspects meet the national, industry standards and contract provisions of the quality, specifications and performance requirements.
We have a professional and technical team, with an average working experience of more than 10 years in the generator industry. In the spirit of "keep improving", they actively collect and attract advanced technology and products at home and abroad, and constantly update the products, so that our diesel generators have been recognized by the majority of users.
If a customer can not find his supplier to support them when equipment has problem, after sales service is not guaranteed, which is a very helpless thing. While we have perfect after-sales service to support you to solve problem, it's not that you can't find us after you have a problem on your equipment. We will be with you and solve your problems with heart.
Export Case
So far, our diesel genset sold to Ethiopia, Venezuela, Singapore, Nigeria, Thailand, U.S.A etc. all over the world, both having good feedback from customers.
FAQ
1. Do you have your own factory?
Yes, we have. Welcome to visit our factory.
2. What is the delivery time and do you have product in stock?
Delivery time depends on order quantity. Generally, within 10 days for open genset, 20 days for silent genset. We have some power capacities in stock, if need details, please contact us.
3. What is your warranty period?
Our warranty is 1 year or 1000running hours whichever comes first. But based on some special project, we can extended our warranty period.
4. Does your generator have global warranty?
Yes, We supply the warranty. Also most of our products like Cummins, Volvo, Perkins, Deutz, Doosan, Yuchai, Weichai etc. power generator enjoy the global warranty service. And the alternator we use like Stamford and marathon also enjoy the global warranty service, so you do not need to worry about the after-sales service.
5. What is your payment terms?
We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight. But based on some special project and special order, we can do something on payment item.
6. Do you provide OEM service?
Yes, we can put your company logo on our diesel genset, just tell us your requirements, then we will do it for you.
Our Service
Before service
Our professional engineer will give you some consultation of technology and related planning before sale, such as selection of equipment, supporting facilities, the design of equipment room. We can also answer and solve the using problem you faced.
After sale service
1. Free guide to install and debugging
2. Free training and consult
3. Guiding how to protect your equipment
4. We will set up clients' document, tracking service, regular inspection, maintenance for life
5. We offers pure perennial spare parts and maintenance engineers will be ready to provide.
Dingbo Cloud on line service will help you to manage your equipment, save cost and improve efficiency.
1.Four valves per cylinder, fuel system can be equipped with electronic speed requlating mechanical pump and electric control single pump, which can effectively improve combustion and emission, smooth operation and good economy.
2.Gantry-type cylinder block, rationally-arranged reinforcing ribs provide good rigidity, compact structure, small vibration and low noise.
3.Precise timing control of valves and fuel injection due to split-type camshaft design and reduction in impact force due to optimized cam profiles improve reliabilityand durability.
4.Electric pre-oil-supply pump provides automatic oil supply before engine starting.
Diesel Generator Set Data | ||||||
Manufacturer: | Guangxi Dingbo Power Equipment Manufacturing Co.,Ltd | |||||
Set Type: | DB-800GF | |||||
Standby Power: | 800KW/1000KVA | |||||
Rated Current: | 1440(A) | |||||
Rated Frequency: | 50(Hz) | |||||
Start-up time: | 5~6(s) | |||||
Power Factor: | 0.8(Lag) | |||||
Rated Voltage: | 400/230(V) | |||||
Standard Features | ||||||
Engine: Shangchai SC33W1150D2 Radiator 40℃ Fans are driven by belt, with safety guard 24V charge alternator Dry type air filter, fuel filter, oil filter Alternator: single bearing alternator, IP22-IP23, insulation class H/H Main line circuit breaker Standard control panel Absorber Muffler Factory test report, User manual etc. | ||||||
Diesel Engine Data | ||||||
Manufacturer: | Shanghai Diesel Engine Co.,Ltd | |||||
Model: | SC33W1150D2 | |||||
Prime/Standby Power: | 782KW/860KW | |||||
Rated Speed: | 1500(r/min) | |||||
Cycle: | 4 stroke | |||||
Engine type | 6 cylinders, in line, wet liner, 4 valves, direct injection | |||||
Displacement: | 32.8L | |||||
Bore and Stroke: | 180*215(mm) | |||||
Compression Ratio: | 15:1 | |||||
Governor Type: | Electronic | |||||
Start battery voltage: | 24V DC | |||||
Air Intake System | ||||||
Air Intake System: | Turbocharged, air-air intercooled | |||||
Injection timing | 22°BTDC | |||||
Exhaust System | ||||||
Max Allowable Back Pressure: | 10kpa | |||||
Fuel System | ||||||
Fuel System: | Direct injection | |||||
100%( Prime Power) Load: | 186.4L/h | |||||
75%(Prime Power( Load | 138.1L/h | |||||
50%( Prime Power) Load: | 92.6L/h | |||||
Oil System | ||||||
Total Oil Capacity: | 75-100L | |||||
Oil pump | Gear type driven by crankshaft | |||||
Cooling System | ||||||
Cooling Way: | Fresh water forced circulation | |||||
Engine Coolant Capacity: | 56L | |||||
Thermostat: | 77-90℃ | |||||
Cooling fan | Blower type, iron 1371mm diameter, 8 blades | |||||
Alternator Data | ||||||
Manufacturer: | Stamford/ Siemens/ Marathon/ ENGGA / Leroy Somer | |||||
Excitation Mode: | Brushless and self- exciting | |||||
Number of phase and Access Act: | 3-phase 4-wire | |||||
Connecting Type: | “Y” type connecting | |||||
Alternator Capacity: | 1000KVA | |||||
Alternator Efficiencies: | 95% | |||||
Overload: | (PRP)110% load can run 1h | |||||
Protection Level: | IP22-IP23 | |||||
Insulation Class, Temperature Rise: | H/H | |||||
Telephone Influence Factor (TIF): | <50 | |||||
THF: | <2% | |||||
Voltage Regulation, Steady State: | ≤±1% | |||||
Altitude: | ≤1000m | |||||
Genset Electrical Performance | ||||||
Voltage Regulation: | ≥±5% | |||||
Voltage Regulation, Stead State: | ≤±1% | |||||
Sudden Voltage Warp (100% Sudden Reduce): | ≤+25% | |||||
Sudden Voltage Warp (Sudden Increase): | ≤-20% | |||||
Voltage Stable Time (100% Sudden Reduce): | ≤6S | |||||
Voltage Stable Time (Sudden Increase): | ≤6S | |||||
Frequency Regulation, Stead State: | ≤5% | |||||
Frequency Waving: | ≤1.5% | |||||
Sudden Frequency Warp (100% Sudden Reduce): | ≤+12% | |||||
Sudden Frequency Warp (Sudden Increase): | ≤-10% | |||||
Frequency Recovery Time(100%Sudden Reduce): | ≤5S | |||||
Frequency Recovery Time(Sudden Increase): | ≤5S | |||||
Options | ||||||
Engine | Alternator | |||||
Heater | Anti Condensation Heater | |||||
Battery Charger | Permanent Magnet Generator(PMG) | |||||
Water Separator | Drop CT(For Paralleling) | |||||
Daily Fuel Tank | ||||||
Fuel Level Sensor | ||||||
Control System | Others | |||||
Remote Control Panel | Rainproof Type | |||||
Auto Transfer Switch (ATS) | Soundproof Type | |||||
Paralleling System | Trailer Type | |||||
Open Type | ||||||
Overall Size | Weight | |||||
4850*1850*2200(mm) | 6500(kg) | |||||
Soundproof Type | ||||||
Overall Size | Weight | |||||
6000*2600*2800(mm) | 10000(kg) |
More technical information, please send inquiry to us.
Genset Model | Generating Set Output | Engine Model | Engine Power | ||||
Prime Power | Standby Power | Prime | Standby | ||||
KW | KVA | KW | KVA | KW | kW | ||
T2 emission | |||||||
DB-50GF | 50 | 62.5 | 55 | 68.75 | SC4H95D2 | 62 | 68 |
DB-68GF | 68 | 85 | 75 | 93.75 | SC4H115D2 | 78 | 86 |
DB-90GF | 90 | 112.5 | 100 | 125 | SC4H160D2 | 105 | 116 |
DB-100GF | 100 | 125 | 110 | 137.5 | SC4H180D2 | 120 | 132 |
DB-130GF | 130 | 162.5 | 143 | 178.75 | SC7H220D2 | 150 | 165 |
DB-136GF | 136 | 170 | 150 | 187.5 | SC7H230D2 | 154 | 170 |
DB-150GF | 150 | 187.5 | 165 | 206.25 | SC7H250D2 | 168 | 185 |
DB-165GF | 165 | 206 | 182 | 227.5 | SC8D280D2 | 185 | 204 |
DB-180GF | 180 | 225 | 200 | 250 | SC9D310D2 | 208 | 228 |
DB-200GF | 200 | 250 | 220 | 275 | SC9D340D2 | 228 | 255 |
DB-220GF | 220 | 275 | 240 | 300 | SC10E380D2 | 255 | 280 |
DB-250GF | 250 | 312.5 | 275 | 343.75 | SC12E420D2 | 280 | 308 |
DB-250GF | 250 | 312.5 | 275 | 343.75 | SC13G420D2 | 280 | 308 |
DB-280GF | 280 | 350 | 308 | 385 | SC12E460D2 | 307 | 338 |
DB-300GF | 300 | 375 | 330 | 412.5 | SC15G500D2 | 330 | 373 |
DB-360GF | 360 | 450 | 400 | 500 | SC25G610D2 | 405 | 445 |
DB-400GF | 400 | 500 | 450 | 562.5 | SC25G690D2 | 459 | 505 |
DB-450GF | 450 | 562.5 | 500 | 625 | SC27G755D2 | 505 | 560 |
DB-500GF | 500 | 625 | 550 | 687.5 | SC27G830D2 | 561 | 610 |
DB-550GF | 550 | 687.5 | 600 | 750 | SC27G900D2 | 602 | 662 |
DB-600GF | 600 | 750 | 660 | 825 | SC33W990D2 | 660 | 726 |
DB-700GF | 700 | 875 | 770 | 962.5 | SC33W1150D2 | 782 | 860 |
T3 emission | |||||||
DB-40GF | 40 | 50 | 45 | 56.25 | 4HTAA4.3-G31 | 51 | 56 |
DB-50GF | 50 | 62.5 | 55 | 68.75 | 4HTAA4.3-G32 | 62 | 68 |
DB-64GF | 64 | 80 | 70 | 87.5 | 4HTAA4.3-G33 | 78 | 86 |
DB-80GF | 80 | 100 | 88 | 110 | 4HTAA4.3-G34 | 95 | 105 |
DB-90GF | 90 | 112.5 | 100 | 125 | 4HTAA4.3-G35 | 106 | 117 |
DB-100GF | 100 | 125 | 110 | 137.5 | 4HTAA4.3-G36 | 125 | 140 |
DB-120GF | / | / | 120 | 150 | 4HTAA4.3-G36 | 125 | 140 |
DB-110GF | 110 | 137.5 | 120 | 150 | 6HTAA6.5-G31 | 128 | 141 |
DB-120GF | 120 | 150 | 132 | 165 | 6HTAA6.5-G32 | 140 | 155 |
DB-136GF | 136 | 170 | 150 | 187.5 | 6HTAA6.5-G35 | 155 | 170 |
DB-150GF | 150 | 187.5 | 165 | 206.25 | 6HTAA6.5-G33 | 168 | 185 |
DB-176GF | / | / | 176 | 220 | 6HTAA6.5-G34 | 186 | 205 |
DB-165GF | 165 | 206.25 | 180 | 225 | 6DTAA8.9-G31 | 185 | 204 |
DB-180GF | 180 | 225 | 200 | 250 | 6DTAA8.9-G32 | 208 | 228 |
DB-200GF | 200 | 250 | 220 | 275 | 6DTAA8.9-G33 | 230 | 253 |
DB-220GF | 220 | 275 | 240 | 300 | 6DTAA8.9-G34 | 255 | 280 |
DB-250GF | / | / | 250 | 312.5 | 6DTAA8.9-G34 | 255 | 280 |
DB-250GF | 250 | 312.5 | 275 | 343.75 | 6ETAA11.8-G32 | 280 | 308 |
DB-280GF | 280 | 350 | 308 | 385 | 6ETAA11.8-G33 | 307 | 338 |
DB-300GF | 300 | 375 | 330 | 412.5 | 6ETAA11.8-G31 | 340 | 380 |
DB-320GF | 320 | 400 | 352 | 440 | 6ETAA12.8-G32 | 360 | 400 |
DB-360GF | 360 | 450 | 400 | 500 | 6ETAA12.8-G31 | 400 | 440 |
DB-400GF | 400 | 500 | 450 | 562.5 | 12GTAA27-G34 | 459 | 505 |
DB-450GF | 450 | 562.5 | 500 | 625 | 12GTAA27-G33 | 505 | 555 |
DB-500GF | 500 | 625 | 550 | 687.5 | 12GTAA27-G32 | 565 | 610 |
DB-550GF | 550 | 687.5 | 600 | 750 | 12GTAA27-G31 | 622 | 684 |
DB-400GF | 400 | 500 | 450 | 562.5 | 6KTAA25-G311 | 460 | 506 |
DB-460GF | 460 | 575 | 506 | 632.5 | 6KTAA25-G310 | 520 | 572 |
DB-510GF | 510 | 637.5 | 561 | 701.25 | 6KTAA25-G39 | 572 | 629 |
DB-560GF | 560 | 700 | 616 | 770 | 6KTAA25-G38 | 622 | 684 |
DB-400GF | 400 | 500 | 450 | 562.5 | 6KTAA25-G36 | 460 | 506 |
DB-460GF | 460 | 575 | 506 | 632.5 | 6KTAA25-G35 | 520 | 572 |
DB-510GF | 510 | 637.5 | 561 | 701.25 | 6KTAA25-G34 | 572 | 629 |
DB-560GF | 560 | 700 | 616 | 770 | 6KTAA25-G33 | 622 | 684 |
DB-600GF | 600 | 750 | 660 | 825 | 6KTAA25-G32 | 685 | 754 |
DB-650GF | 650 | 812.5 | 720 | 900 | 6KTAA25-G31 | 728 | 800 |
DB-720GF | 720 | 900 | 800 | 1000 | 6WTAA35-G32 | 818 | 900 |
DB-800GF | 800 | 1000 | 880 | 1100 | 6WTAA35-G31 | 882 | 970 |
Genset Model | Generating Set Output | Engine Model | Engine Power | ||||
Prime Power | Standby Power | Prime | Standby | ||||
KW | KVA | KW | KVA | KW | kW | ||
DB-50GF | 56 | 70 | 62 | 77 | 4HT4.3-G21 | 62 | 68 |
DB-68GF | 61 | 76 | 67 | 84 | 4HT4.3-G22 | 67 | 74 |
DB-90GF | 80 | 100 | 88 | 110 | 4HT4.3-G23 | 86 | 95 |
DB-100GF | 95 | 119 | 105 | 131 | 4HTAA4.3-G21 | 105 | 116 |
DB-130GF | 110 | 138 | 121 | 151 | 4HTAA4.3-G23 | 120 | 132 |
DB-136GF | 110 | 138 | 121 | 151 | 4HTAA4.3-G22 | 120 | 132 |
DB-150GF | 125 | 156 | 138 | 172 | 6HTAA6.5-G21 | 136 | 150 |
DB-165GF | 136 | 170 | 150 | 187 | 6HTAA6.5-G22 | 150 | 165 |
DB-180GF | 166 | 208 | 183 | 228 | 6HTAA6.5-G23 | 180 | 198 |
DB-200GF | 186 | 233 | 205 | 256 | 6DTAA8.9-G21 | 205 | 226 |
DB-220GF | 207 | 259 | 228 | 285 | 6DTAA8.9-G24 | 228 | 250 |
DB-250GF | 215 | 269 | 237 | 296 | 6DTAA8.9-G22 | 235 | 259 |
DB-250GF | 232 | 290 | 255 | 319 | 6DTAA8.9-G23 | 255 | 282 |
DB-280GF | 280 | 350 | 308 | 385 | 6ETAA11.8-G21 | 307 | 338 |
Related Products
Quicklink
Mob.: +86 134 8102 4441
Tel.: +86 771 5805 269
Fax: +86 771 5805 259
E-mail: dingbo@dieselgeneratortech.com
Skype: +86 134 8102 4441
Add.: No.2, Gaohua Road, Zhengxin Science and Technology Park, Nanning, Guangxi, China.
Get in Touch
