Function: control parallel operation between two or more generator sets.
Operation mode: full automatic: automatic start, automatic paralleling and automatic load distribution.
For more details, please contact us.
Dingbo Power series automatic paralleling device is a special device specially designed and manufactured for parallel operation of diesel generator sets. It is applicable to the parallel operation of multiple diesel generator sets with electronic governor or EFI. The voltage regulation mode can be selected according to the model of the regulator (voltage regulation mode: one of potentiometer, switching value, voltage signal, current signal, etc.). The core components of the device adopt the synchronizer and load distributor of American GAC company, PLC of Siemens company and China high-quality electrical components and Schneider circuit breaker, which are optimized and designed by professional senior engineers. The device has the characteristics of complete functions, reliable operation and convenient maintenance.
Installation and use environment
1. Ambient air temperature: ≮ - 5 ℃ and ≯ + 45 ℃.
After adding preheating device, it can be used in the environment of ≮ - 30 ℃.
2. Installation location: altitude ≯ 2000m.
3. Relative humidity: ≯ 90%, no condensation on the surface.
4. No conductive dust.
5. There is no corrosive gas or steam sufficient to damage the metal.
6. Occasions without explosion hazard.
7. A place free from rain and snow.
8. Installation conditions: the vertical inclination of the cabinet shall not exceed 5 °.
Why Choose Us
Dingbo is original manufacturer of diesel generator set. Factory direct sale, guaranteed quality and affordable price.
Our diesel generator sets are widely used in telecommunications, energy, transportation, real estate, hospital, residential building, data center and other fields, having long-term strategic cooperation with a lot of well-known enterprises. From research and development to production, from raw material procurement, assembly and processing to finished product debugging and testing, each process is strictly implemented, in all aspects meet the national, industry standards and contract provisions of the quality, specifications and performance requirements.
We have a professional and technical team, with an average working experience of more than 10 years in the generator industry. In the spirit of "keep improving", they actively collect and attract advanced technology and products at home and abroad, and constantly update the products, so that our diesel generators have been recognized by the majority of users.
If a customer can not find his supplier to support them when equipment has problem, after sales service is not guaranteed, which is a very helpless thing. While we have perfect after-sales service to support you to solve problem, it's not that you can't find us after you have a problem on your equipment. We will be with you and solve your problems with heart.
Export Case
So far, our diesel genset sold to Ethiopia, Venezuela, Singapore, Nigeria, Thailand, U.S.A etc. all over the world, both having good feedback from customers.
Specific Project Cases:
FAQ
1. Do you have your own factory?
Yes, we have. Welcome to visit our factory.
2. What is the delivery time and do you have product in stock?
Delivery time depends on order quantity. Generally, within 10 days for open genset, 20 days for silent genset. We have some power capacities in stock, if need details, please contact us.
3. What is your warranty period?
Our warranty is 1 year or 1000running hours whichever comes first. But based on some special project, we can extended our warranty period.
4. Does your generator have global warranty?
Yes, We supply the warranty. Also most of our products like Cummins, Volvo, Perkins, Deutz, Doosan, Yuchai, Weichai etc. power generator enjoy the global warranty service. And the alternator we use like Stamford and marathon also enjoy the global warranty service, so you do not need to worry about the after-sales service.
5. What is your payment terms?
We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight. But based on some special project and special order, we can do something on payment item.
6. Do you provide OEM service?
Yes, we can put your company logo on our diesel genset, just tell us your requirements, then we will do it for you.
Our Service
Before service
Our professional engineer will give you some consultation of technology and related planning before sale, such as selection of equipment, supporting facilities, the design of equipment room. We can also answer and solve the using problem you faced.
After sale service
1. Free guide to install and debugging
2. Free training and consult
3. Guiding how to protect your equipment
4. We will set up clients' document, tracking service, regular inspection, maintenance for life
5. We offers pure perennial spare parts and maintenance engineers will be ready to provide.
Dingbo Cloud on line service will help you to manage your equipment, save cost and improve efficiency.
A. Improve the flexibility of the power supply system.
Parallel generators make it convenient for users to increase or decrease the number of generators according to the current electricity usage. When the generators need maintenance or other special circumstances, users can conveniently arrange the entire power supply system.
B. Reduce energy consumption and usage costs, and extend the service life.
For a long-term equipment such as a generator set, not only the purchase cost should be considered, but also the whole life cost should be considered. In the actual use of the parallel system, the user can choose the number of generator sets according to the size of the power consumption, saving fuel, compared with a single high-power generator, the spare parts of a small generator are easier to buy, the price is relatively cheap, and the maintenance cost is relatively low. Therefore, the life-time cost of the generator running in parallel is relatively low.
C. Improve the power supply safety of important equipment.
If one or part of the generators fails in the parallel system, reasonable arrangements can be made to allow the normal units to supply power to the particularly important loads in the system, which is impossible for a single generator.
1. Structure description

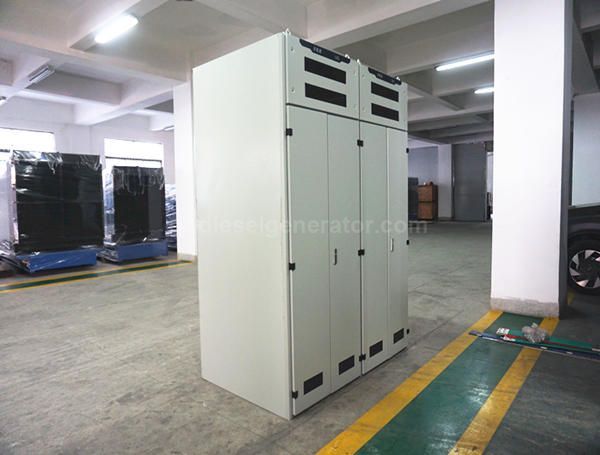

a. The frame adopts GGD cabinet, the surface is sprayed and the color is international gray.
b. The main bus bar adopts TMR copper bus bar, which is designed according to full load and is designed in the upper middle of the cabinet. The cable at the generator set end is connected from the upper end of the cabinet, and the outgoing line is connected from the upper copper bar of the outlet cabinet.
2. Technical parameters
a. The voltage of the generator set: 110~480VAC.
b. Power of a single generator set: 20KW~2400KW
c. Frequency: 50Hz/60Hz
d. Wiring mode: Y connects to three-phase four-wire.
e. Synchronization phase difference: 1～25, generally set at 100.
f. Load distribution difference: ±5% adjustable.
g. Reverse power action: 0.5～20% adjustable.
h. Positive power action:
"NO" is adjustable from 20 to 100%.
"OFF" is adjustable from 0 to 80%.
3. Automatic load distribution:
When the parallel operation of 2 or more units is completed, the unit starts to run with load, and the load distributor will act as an ESC to distribute the load proportionally according to the power of the unit.
4. Protective function:
a. Synchronization protection;
b. Reverse power protection;

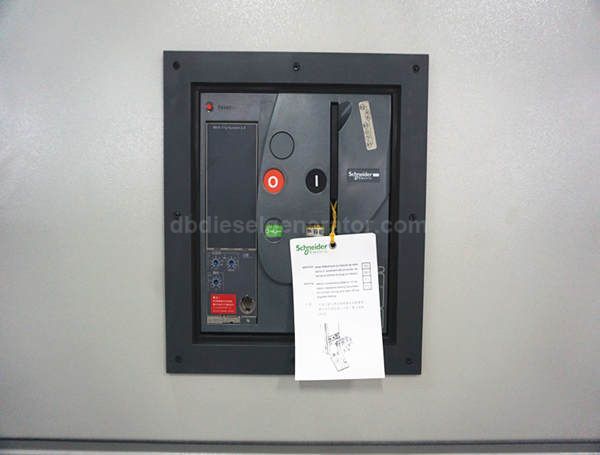

c. Over current and short circuit protection (completed by air switch);
d. Undervoltage protection.
5. Indicating instrument:
a. Voltmeter;
b. Ammeter;
c. Frequency table;
d. Power meter;
e. Power factor meter:
f. Synchronization table SCM-225 (for observation in parallel).

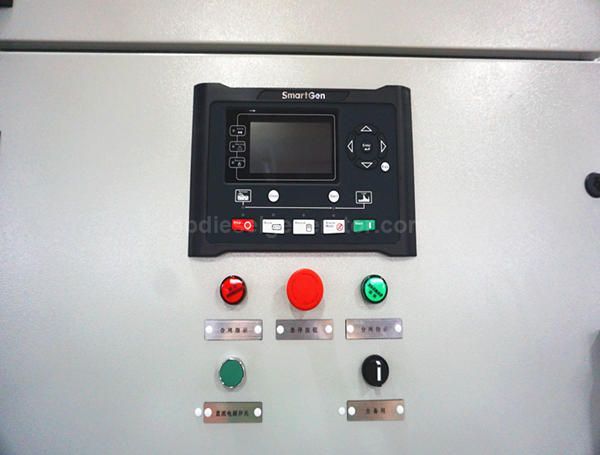

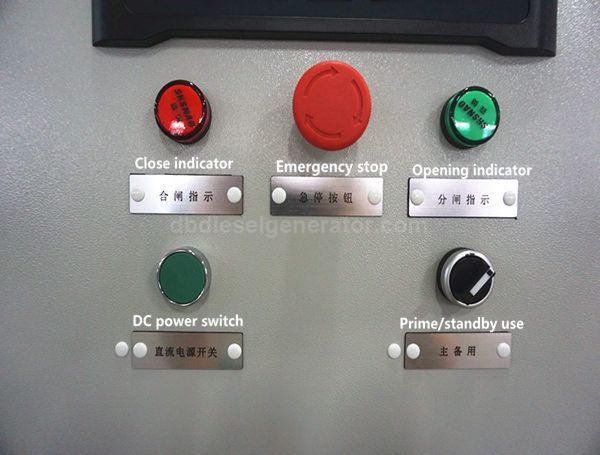

There are closing, opening and genset operation indicators on the panel of the cabinet, and a fault alarm (acousto-optic alarm) (when there is reverse power, the unit is faulty, the acousto-optic alarm will alarm, there is manual/automatic, peak adjustment /Cut, single/parallel, master/standby selection switch.

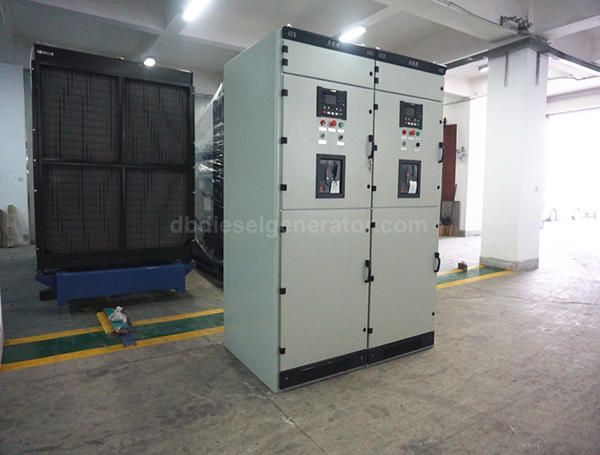

Dingbo Power parallel cabinet can be used for 50Hz diesel generating sets.
Dingbo Power parallel cabinet can be used for 50Hz diesel generating sets.
