500kw 625kva Volvo Diesel Generator Set


Diesel Generator Set Data

Model: DB-500GF

Prime power: 500KW/625KVA

Rated current: 900A

Rated frequency: 50Hz

Power factor: 0.8lag

Rated voltage: 230/400V

Start mode: electric start


For more types, please contact us

Share:

Introduction

Dingbo Power is original manufacturer of diesel generators equipped with Volvo diesel engine. Dingbo Volvo series diesel generator sets power range is from 68kw to 560kw. Dingbo Volvo genset emission level can reach to EU Stage II/EPA Tier 2, EU Stage III/EPA Tier 3 etc. Dingbo Power always adheres to quality, safety and environmental protection. With excellent products and perfect services, it has won the praise and welcome of the majority of users.

Why Choose Us

Dingbo is original manufacturer of diesel generator set. Factory direct sale, guaranteed quality and affordable price.



Our diesel generator sets are widely used in telecommunications, energy, transportation, real estate, hospital, residential building, data center and other fields, having long-term strategic cooperation with a lot of well-known enterprises. From research and development to production, from raw material procurement, assembly and processing to finished product debugging and testing, each process is strictly implemented, in all aspects meet the national, industry standards and contract provisions of the quality, specifications and performance requirements.



We have a professional and technical team, with an average working experience of more than 10 years in the generator industry. In the spirit of "keep improving", they actively collect and attract advanced technology and products at home and abroad, and constantly update the products, so that our diesel generators have been recognized by the majority of users.



If a customer can not find his supplier to support them when equipment has problem, after sales service is not guaranteed, which is a very helpless thing. While we have perfect after-sales service to support you to solve problem, it's not that you can't find us after you have a problem on your equipment. We will be with you and solve your problems with heart.


Export Case

So far, our diesel genset sold to Ethiopia, Venezuela, Singapore, Nigeria, Thailand, U.S.A etc. all over the world, both having good feedback from customers.

Diesel generators


Specific Project Cases:

https://www.dbdieselgenerator.com/project-case/

FAQ

1. Do you have your own factory?

Yes, we have. Welcome to visit our factory.

2. What is the delivery time and do you have product in stock?

Delivery time depends on order quantity. Generally, within 10 days for open genset, 20 days for silent genset. We have some power capacities in stock, if need details, please contact us.

3. What is your warranty period?

Our warranty is 1 year or 1000running hours whichever comes first. But based on some special project, we can extended our warranty period.

4. Does your generator have global warranty?

Yes, We supply the warranty. Also most of our products like Cummins, Volvo, Perkins, Deutz, Doosan, Yuchai, Weichai etc. power generator enjoy the global warranty service. And the alternator we use like Stamford and marathon also enjoy the global warranty service, so you do not need to worry about the after-sales service.

5. What is your payment terms?

We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight. But based on some special project and special order, we can do something on payment item.

6. Do you provide OEM service?

Yes, we can put your company logo on our diesel genset, just tell us your requirements, then we will do it for you.

Our Service

Before service

Our professional engineer will give you some consultation of technology and related planning before sale, such as selection of equipment, supporting facilities, the design of equipment room. We can also answer and solve the using problem you faced.



After sale service

1. Free guide to install and debugging

2. Free training and consult

3. Guiding how to protect your equipment

4. We will set up clients' document, tracking service, regular inspection, maintenance for life

5. We offers pure perennial spare parts and maintenance engineers will be ready to provide.

Dingbo Cloud on line service will help you to manage your equipment, save cost and improve efficiency.

Advantage

1.Low fuel consumption

2.Max. durability for long service life

3.Emission controlled with minimal vibrations and noise

4.Mechanical or electronic governor with CAN‐bus communication
5.Belt‐driven, maintenance‐free coolant pump
6.Piston cooling for low piston temperature
7.Easily accessible service and maintenance points
8.Cast‐iron cylinder block
9.Compact design

10.Both 50Hz and 60Hz

11.ISO9001, ISO14001, GB/T2800 certification

12.Spare parts are easy to get from worldwide market

Configuration

1) Volvo engine

2) Shanghai Stamford alternator(Stamford, Leroysomer, Marathon, Siemens, ENGGA brand for option)

3) SmartGen 6110 control panel as standard, AMF Control Panel Deep Sea DSE7320, SmartGen HGM6120, cloud monitoring platform for option. ATS, synchronous parallel for option

4) Chint breaker as standard, ABB, Schneider Breaker for option

5) 8/12 Working hours base bottom fuel tank, external fuel tank for option

6) Anti-Vibration mounted system

7) Battery and battery connecting cable, battery charger

8) Industrial silencer and flexible exhaust hose


500kW Volvo Diesel Generator Set Technical Datasheet


Manufacturer:Guangxi Dingbo Power EquipmentManufacturing Co.,Ltd
Genset modelDB-500GF
TypeOpen type or Silent type
Prime Power:500KW/625KVA
Standby Power:550KW/687.5KVA
Rated current:900A
Rated voltage:400/230V or as you required
Rated frequency/speed:1500rpm/50Hz
Power factor:0.8lag
Phase:3 phase 4 wire
Noise level:100dB at 7m ( open type generator)
70dB at 7m(silent type generator)
Dimension (L x W x H):Open type: 3460×1400×2100mm(for reference)
Silent type: 4500 x 2000 x 2400mm(for reference)
Net weight:Open type: 3300kg
Silent type: 7200kg


Volvo TWD1643GE Diesel Engine Datasheet


Manufacturer:Volvo Engine Co.,Ltd
Engine modelTWD1643GE
Prime power:560kW
Standby power:596kW
Frequency/Speed:1500RPM / 50Hz
Cylinders no. & Type:6, Vertical in-line, 4 stroke
Aspiration:Turbocharged
Cooling methodWater-cooled
Displacement:16.12L
Compression ratio16.5:1
GovernorElectronic
Bore x Stroke(mm):144 × 165
Start mode:Electric start
Starter motor:24V DC
Type Injection System:Direct injection
Total Lubrication System Capacity48L
Max. oil temperature (°C)125
Coolant Capacity (L)95


Alternator technical datasheet


ManufacturerStamford/ Marathon/ Engga/ Shanghai Stamford/ Leroy Somer
Continuous rated power:500KW/625KVA
Rated Voltage:400/230V
Frequency/Speed:1500rpm /50Hz
Phase:3 phase 4 wire
Power Factor:0.8lag
Efficiency:94.7%
Regulator:AVR
Stator:Double layer concentric
Rotor:Single/double bearing
Exciter type:Brushless excitation
Windings:100% copper
Short circuit current capacity(%)>300IN 10s( with PMG or Auxiliary winding)
Recovery time(Tr)1s
Waveform : TIF<50
Waveform : THD<3%
Waveform : THF<2%
Winding pitch2/3
Voltage regulation:± 1.0 %
Protection:IP22 or IP23
Insulation classH
DutyContinuous
Number of poles4
Altitude≤1000m
Rated power factor0.8lag
Stator winding6ends
RotorWith damping cage
Overload110% rated load for 2 hour per 24 hour
Ambient temperature40℃
Maximum overspeed2250 rpm 2minutes


Controller

Standard controller

Model: Deep Sea 7320 or SmartGen 6110

Automatic controller, integrating digital, intelligent and network techniques, is used for automatic control and monitoring system of single genset. It can carry out functions of automatic start/stop, data measurement, alarm protection and three remote (remote control, remote measurement and remote communication). The controller uses LCD display, optional language interface including Chinese, English, Spanish, Russian, Portuguese, Turkish, Polish and French with easy and reliable operation.

Auto parallel controller

Model: Deep Sea 8610 or SmartGen HGM9510

Synchronising & Load Sharing Control Module

The auto parallel controller represents the latest in complex load sharing & synchronising control technology. Designed to handle the most complex grid type generator applications the control module is packed with multiple features and benefits that are unrivalled across the generator control industry.



Dingbo Volvo Series Open Type Diesel Generators (50Hz)

Genset ModelGenerating Set OutputVolvo Penta Engine ModelSize
Prime PowerStandby PowerDimension(L x W x H:mm)Weight(kg)
KWKVAKWKVA
DB-68GF68307533TAD530GE2200×720×13801050
DB-68GF68387541TAD550GE2200×720×13801050
DB-80GF80638869TAD531GE2200×720×13801200
DB-80GF80758883TAD551GE2200×720×13801200
DB-100GF1008011088TAD532GE2300×720×13801250
DB-105GF105125120138TAD750GE2600×1000×16501400
DB-120GF120125132165TAD731GE2600×1000×16501480
DB-120GF120150132165TAD751GE2600×1000×16501480
DB-150GF150175165188TAD732GE2600×1000×16501500
DB-150GF150188165206TAD752GE2600×1000×16501500
DB-160GF160225180206TAD733GE2650×1070×16501550
DB-160GF160250180275TAD753GE2650×1070×16501550
DB-200GF200313220344TAD734GE2650×1070×16501650
DB-200GF200350220385TAD754GE2650×1070×16501650
DB-250GF250375275413TAD1341GE-B3000×1100×17502300
DB-250GF250438275481TAD1351GE3000×1100×17502300
DB-280GF280563308625TAD1342GE-B3000×1100×17502300
DB-300GF300625330688TAD1343GE-B3100×1200×17502900
DB-300GF300625330825TAD1352GE3100×1200×17502900

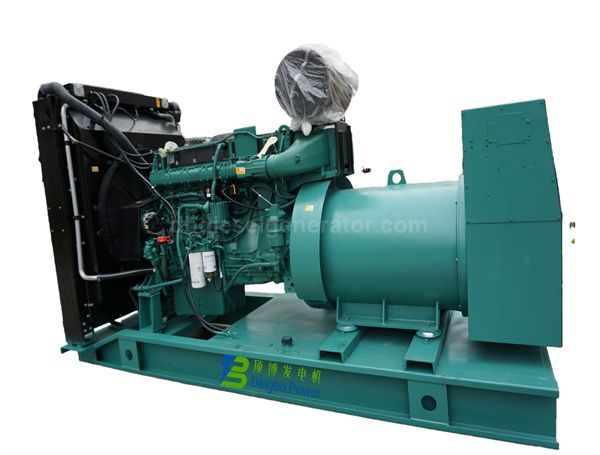

DB-305GF305800340880TAD1354GE3100×1200×17502900
DB-320GF320875352963TAD1344GE-B3100×1200×17502950
DB-330GF33010003601100TAD1355GE3100×1200×17502950
DB-350GF35010003851100TAD1345GE-B3100×1200×17502950
DB-360GF36012504001375TAD1650GE3200×1160×20223000
DB-400GF40012504401375TAD1641GE-B3200×1160×20223100
DB-400GF40013754401513TAD1651GE3200×1160×20223100
DB-470GF47015005201650TAD1642GE-B3200×1160×20223200
DB-480GF48016885281856TWD1652GE3200×1160×20223300
DB-500GF50018755502063TWD1643GE3460×1400×21003300
DB-520GF52020005722200TWD1653GE3460×1400×21003400
DB-550GF55022506052475TWD1645GE3460×1400×21003600


For more details, please contact us.


Dingbo Volvo Series Open Type Diesel Generators(60Hz)

Genset ModelGenerating Set OutputVolvo Penta Engine ModelSize
Prime PowerStandby PowerDimension(L x W x H:mm )Weight( kg )
KWKVAKWKVA
Stage II
DB-70GF70887796TAD530GE2200×720×13801050
DB-84GF8410592116TAD531GE2200×720×13801200
DB-106GF106133117146TAD532GE2300×720×13801250
DB-129GF129161142177TAD731GE2600×1000×16501480
DB-164GF164205180226TAD732GE2600×1000×16501500
DB-182GF182228200250TAD733GE2650×1070×16501550
DB-200GF200250220275TAD734GE2650×1070×16501650
DB-318GF318398350437TAD1342GE-B3000×1100×17502300
DB-327GF327409360450TAD1343GE-B3100×1200×17502300
DB-364GF364455400501TAD1344GE-B3100×1200×17502300
DB-364GF364455400501TAD1345GE-B3100×1200×17502900
DB-455GF455569501626TAD1641GE-B3200×1160×20223100
DB-500GF500625550688TAD1642GE-B3200×1160×20223200
DB-550GF550688605756TAD1643GE3460×1400×21003300
Stage III
DB-77GF779685106TAD550GE2200×720×13801050
DB-92GF92115101127TAD551GE2200×720×13801200
DB-115GF115144127158TAD750GE2600×1000×16501400
DB-136GF136170150187TAD751GE2600×1000×16501480
DB-163GF163204179224TAD752GE2600×1000×16501500
DB-183GF183229201252TAD753GE2650×1070×16501550
DB-206GF206258227283TAD754GE2650×1070×16501650
DB-273GF273341300375TAD1351GE3000×1100×17502300
DB-320GF320400352440TAD1352GE3100×1200×17502900
DB-320GF320400352440TAD1354GE3100×1200×17502900
DB-323GF323404355444TAD1355GE3100×1200×17502900
DB-413GF413516454568TAD1650GE3200×1160×20223000
DB-464GF464580510638TAD1651GE3200×1160×20223100
DB-582GF582728640800TAD1645GE3460×1400×21003600


For more details, please contact us.
