450KVA Cummins Diesel Generator Exported to Thailand

May. 19, 2021

On May 2021, Guangxi Dingbo Power Equipment Manufacturing Co.,Ltd exported one set of prime 450KVA standby 500KVA Cummins open type diesel generator set to Thailand. Thanks for the client’s support, we will always provide good quality product and perfect service for you.


Guangxi Dingbo Power Equipment Manufacturing Co.,Ltd is a manufacturer of diesel generator set in China, who has focused on generators for more than 25 years. Our diesel generator sets have sold to all over the world and gain good feedback from clients.

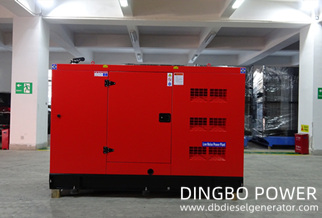

450KVA 500KVA Cummins Generators


Today we also share technical specifications of the 450KVA Cummins generator set.


1.Technical Specifications of Cummins Generator Set

Manufacturer: Guangxi Dingbo Power Equipment Manufacturing Co.,Ltd

Genset model: DB-360GF

Prime rated power: 360KW/450KVA

Standby rated power: 400KW/500KVA

Rated voltage: 220/380V

Rated current: 648A

Frequency/ speed: 1500rpm/ 50Hz

Power factor: 0.8lag

Start-up mode: manual/automatic

Dimension: 3480x1370x2140mm ( L x W x H)

Net weight: 4000kg

Accessories: base bottom fuel tank for 8 hours, battery, battery charger, CCEC Cummins standard tool kit, use manual, factory test report, certificate etc.


2.Technical Specifications of CCEC Cummins Engine


Manufacturer: Chongqing Cummins Engine Co.,Ltd

Model: KTA19-G3

Prime/standby power: 403KW/448KW

Speed: 1500rpm

Air intake type: Turbocharged Aftercooled

No of cylinder and type: 6, inline

Displacement: 19L

Bore and stroke: 159x159mm

Compression Ratio: 13.9:1

Governor type: Electronic

Start battery voltage: 24V DC

Fuel system: Cummins PT

Total oil capacity: 50L

Total coolant capacity(engine only): 45L

Fuel consumption: 100%:205g/kw.h   75%:205g/kw.h   50%:191g/kw.h   25%:150g/kw.h


Cummins generating set


3.Technical Specifications of Stamford AC alternator


Manufacturer: Cummins Generator Technologies(China) Co.,Ltd

Model: HCI 544C1

Alternator capacity: 450KVA

Overload: 10% load can run 1 hour in 12 hours

Type: Brushless self-exciting synchronous generator

Temperature rise class: H

Insulation class: H

Enclosure protection degree of generator: IP23

Voltage regulation: AVR

Number of phase and Access Act: 3-phase 4-wire, Neutral grounding

Alternator efficiency: 95%

Bearing: single bearing


4.Controller

Manufacturer: Shenzhen Haiway Technology Co.,Ltd

Model: Deep Sea 7320



The technical specification we provided can meet client's requirement, and we can provide competitive price, and fast delivery time. So, the client choose us. All our generator sets are brand full new and high quality, brand covers Cummins, Volvo, Perkins, Deutz, Yuchai, Shangchai, Weichai, Ricardo, MTU etc. Power range is from 20kw to 3000kw. If you also have purchasing plan of diesel generator sets, welcome to contact us by email dingbo@dieselgeneratortech.com, or call us directly by phone +8613481024441. Our sales team will work with you.
