A 200KW Volvo Soundproof Diesel Generator Set Was Exported to Malaysia

In August, 2023, Dingbo Power produced and exported a prime power 200kw 250kva silent type diesel generator to Malaysia. The genset is equipped with a Volvo engine, a Leroy Somer alternator and a SmartGen controller. It is perfect for continuous use and has plenty of power to power up homes, construction sites, business, etc.

Generator set general information

Manufacturer: Guangxi Dingbo Generator Set Manufacturing Co.,Ltd.

Genset model: DB-200GF

Type: Silent type

Prime/standby rating: 200kw/220kw

Rated voltage: 415/240V

Rated Current: 348A

Speed/frequency: 1500rpm/50Hz

Phase & Wire: 3 Phase 4 Wire

Power factor: 0.8lag

Diesel engine: Volvo TAD841GE

Alternator: Leroy Somer TAL-A46-D

Controller: SmartGen HGM6120CAN

Features of 200KW Volvo generator set

This Volvo genset offers a prime rating of 200 kW (250 kVA) and a standby rating of 220 kW (275 kVA), which is ideal for a variety of applications. By utilizing a Volvo TAD841GE engine, this generator set provides Stage II / Tier 2 EPA standards and also provides unsurpassed performance and reliability. Below are some key features of the genset:

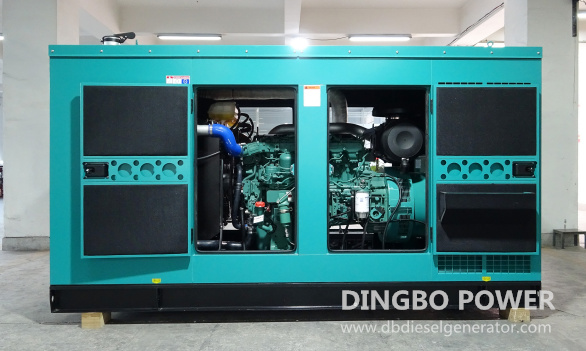

Equipped with a sound attenuated enclosure, which can protect the genset from the elements such as rain and snow and reduce the noise level effectively. The noise level of the genset is 75 dB at 7 meters.

Volvo TAD841GE engine is a powerful, reliable and economical Generating Set Diesel Engine built on the dependable in-line six design. It has the advantages of durability, low noise, low exhaust emission and easy service and maintenance.

By utilizing the latest technologies, the Leroy Somer TAL-A46-D alternator can deliver superior efficiencies in Standby, Continuous and Prime generator applications worldwide.

Smartgen HGM6120CAN controller is used for automatic control and monitoring system of genset. It has mains AC monitoring and mains/generator automatic switching control (AMF), especially suitable for the automation system composed by mains and genset.

Equipped with a built-in Schneider ATS, a Schneider circuit breaker and a 500L base bottom fuel tank.

Several tips on operating diesel generators

Generally speaking, the lifespan of a diesel generator depends on how the user uses and maintains the generator. Improper operation can cause damage to the unit and lead to many generator problems. The following are some tips on how to operate your diesel generator properly.

Before adding engine oil or diesel fuel to a generator, ensure that the generator is turned off and any connected loads are disconnected. Check the oil level with the oil dipstick, make sure the oil level is between the minimum and maximum marks. Add or remove oil depending on the oil level conditions if necessary.

After starting the generator set, check whether the electrical instruments or the controller are normal, and whether there is any abnormal noise. Check if the diesel generator voltage and frequency meet the required values. Carefully observe the working status lights and oil pressure on the generator set and check if the water temperature is normal.

Before shutting down the generator, remember to remove all loads first. Reduce the speed to idle and finally stop the generator. If the genset has been operated for a long time, don’t stop it immediately after removing the loads. Please let the diesel generator run without load for a few minutes to allow it to have enough cooling time.

If the generator will be left not used for a long time, the battery power cords should be disconnected, and the generator should be started once within a period of time.

Dingbo Power is a professional diesel generator manufacturer in China with 18 year’s experience. We offer a wide range of high-quality diesel generators that can meet your specific needs. Feel free to contact us with any questions, concerns, or inquiries to learn more about the products & services we provide.
