Nov. 27, 2025

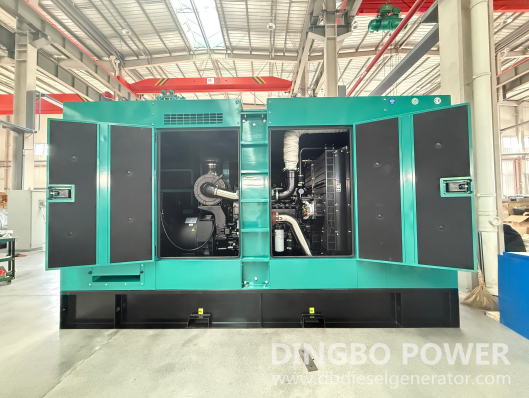

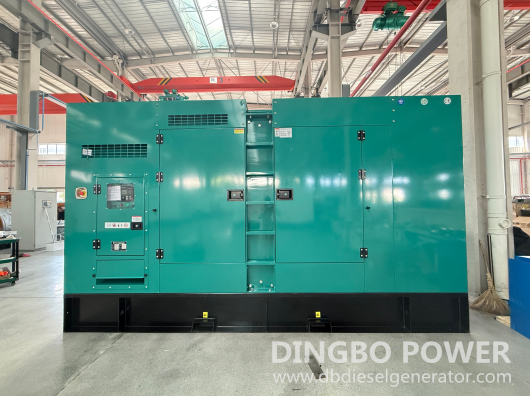

Good news! Dingbo Power exported 500kVA 400kW Cummins silent diesel generator set to Somalia. In 2024, the customer contacted us for the first time. After several technical discussions, the customer finally confirmed three 500kVA 400kW Cummins soundproof diesel generator sets. The customer was very satisfied with the product quality after using our diesel generator, so this year 2025 he continued to purchase 500kVA 400kW Cummins silent generator with the same configuration. This product is one of our most popular products. Pictures of the real product are attached below.
Here we will introduce the specific technical parameters of 500kVA 400kW silent generating set, mainly configured with Dongfeng Cummins diesel engine QSZ13-G3, original Stamford alternator S5L1D-D41 and SmartGen controller HGM6110CAN. If you need it, please contact us and we can customize it according to your different requirements.
| Manufacturer: | Guangxi Dingbo Generator Set Manufacturing Co.,Ltd |
| Genset model | DB-400GF |
| Type | Silent type |
| Prime Power: | 500KVA / 400kW |
| Standby Power: | 550KVA/ 440kW |
| Rated current: | 696A |
| Rated voltage: | 415/240V |
| Rated speed/frequency | 1500rpm/50Hz |
| Power factor: | 0.8lag |
| Phase: | 3 phase 4 wire |
| MCB breaker | 800A |
| Stable voltage regulation rate | ≤±0.5% |
| Transient voltage regulation rate | ≤+20~-15% |
| Voltage recovery time | ≤15s |
| Voltage Volatility | ≤±0.5% |
| Frequency adjustment rate | ≤±1% |
| Transient adjustment rate | ≤±10~-7% |
| Frequency stabilization time | ≤5s |
| Frequency Volatility | ≤0.5% |
| Base bottom fuel tank | 750L |
| Noise level | 75dBA at 7m |
| Dimensions: | 4300x1800x2450mm(L*W*H) |
| Gross and net weight: | 4200kg(for reference) |
| Includes: muffler, silent canopy, 750L base bottom fuel tank, 24V DC maintenance free battery, battery cable, battery charger, mains circuit breaker, factory test report, random data set, etc. | |
| Manufacturer: | Dongfeng Cummins Engine Co.,Ltd |
| Engine model | QSZ13-G3 |
| Prime power: | 450KW |
| Standby power: | 470KW |
| Frequency/Speed: | 50Hz/1500RPM |
| Cylinders no. & Type: | 6, In line, 4 stroke, diesel engine, water-cooled |
| Aspiration: | Turbocharged & Charge Air Cooled |
| Displacement: | 13L |
| Compression ratio | 17:1 |
| Governor | Electronic |
| Bore x Stroke(mm): | 130 x 163 |
| Start mode: | Electric start |
| Starter motor: | 24V DC |
| Type Injection System: | Direct injection |
| Maximum fuel inlet temperature: | 71℃ |
| Fuel consumption(standby power): | 100%:105.5L/h |
| Fuel consumption(prime power): | 100%:101L/h 75%:74.2L/h 50%:48.9L/h 25%:26L/h |
| Coolant Capacity - Engine Only | 23.1L |
| Standard Thermostat (Modulating) Range | 82~94℃ |
| Maximum coolant temperature - engine out: | 102℃ |
| Maximum Top Tank Temperature for Standby / Prime Power | 104/100℃ |
| Total system capacity (standard pan) | 45.42L |
| Maximum lube oil flow to all accessories | 7.57L/min |
| Maximum Oil Temperature | 121℃ |
| Manufacturer: | Cummins Generator Technologies Co.,Ltd |
| Alternator model : | Original Stamford S5L1D-D41 |
| Prime power | 500kVA 400kW |
| Rated Voltage: | 415/240V |
| Frequency/Speed: | 50Hz/1500RPM |
| Wire connecting method | Y type, 3 phase 4 wire |
| Power Factor: | 0.8lag |
| Efficiency: | 95% |
| Regulator: | AVR AS440 |
| Rotor: | Single bearing |
| Exciter type: | Brushless, Self-Excited |
| Stator Winding | Double Layer Lap |
| Winding Pitch | Two Thirds |
| Winding Leads | 12 |
| Number of Poles | 4 |
| Winding Number | 311 |
| Coil | full copper |
| Recovery time(Tr) | 1s |
| Waveform : TIF | <50 |
| Waveform : THF | <2% |
| Voltage regulation: | ± 1.0 % |
| Protection: | IP23 |
| Insulation class | Class H |
| Temperature rise grade: | Class H |
| RFI Suppression | BS EN 61000-6-2 & BS EN 61000-6-4,VDE 0875G, VDE 0875N.Refer to factory for others |
| Waveform Distortion | NO LOAD < 1.5% NON-DISTORTING BALANCED LINEAR LOAD < 5.0% |
| Short Circuit Ratio | 1/Xd |
| Steady State X/R Ratio | 15.69 |
The diesel generator set is a kind of power generation equipment fueled by diesel, which is widely used in different fields and can achieve multiple effects.
Industrial field: In factories, mines, construction sites and other places requiring large amount of power supply, diesel generator sets are usually used as standby power supply to cope with power failure or emergency.
Commercial field: shopping malls, supermarkets, hotels, hospitals and other places often require diesel generator sets as standby power supply to ensure normal operation and medical services are not affected by power failure.
Agriculture: in rural areas or remote areas, farm irrigation, farm farm, fishing boat and other places, diesel generator sets are often used to provide stable power supply.
Meteorological disaster emergency: in case of natural disasters such as storm, typhoon and earthquake, the diesel generator set can provide emergency power for the disaster area to support disaster relief.
Since 2006, Dingbo Power has been focusing on high-quality products and economical prices. We can supply power range from 2kW to 3000kW, including Cummins, Perkins, Yuchai, Wechai, Shangchai, Deutz, MTU, etc. The generator types includes open type frame, silent canopy, mobile trailer, containerized type, etc. If you have a purchasing plan, welcome to contact us by email dingbo@dieselgeneratortech.com or Whatsapp +8613481024441, we will guide you to choose a suitable diesel generator, contact us right now!
