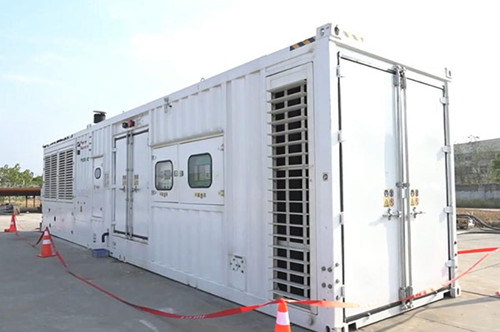

Cummins PowerBloc C2750D5B Container Diesel Generator

Recently, Cummins conducted a 72 hour durability test on a PowerBloc C2750D5B container type diesel generator set at the noise test site in Wuhan. Different from the 24+1 hour durability test, this time the diesel generator has higher power, up to 2750kVA, and takes longer. The 3-hour standby load+69 hour full load test has higher reliability requirements.

During the test, relevant engineers will record the key parameters of the engine set and monitor every move of this Cummins diesel generator in real time, such as:

One hour safety patrol;

Measuring the surface temperature of high-voltage cable with infrared thermometer;

Infrared thermal measuring instrument takes pictures of the unit surface;

Anemometer records site ambient temperature and wind.

In addition, the PowerBloc C2750D5B Cummins containerized generator in this test needs to operate continuously for 72 hours with high load and high power under 100% 2000kw full load and 2200kw 110% overload. Under the condition of high energy output of the unit, record its relevant test data, and set sensors in the engine air intake system, exhaust system, oil supply, load system, etc. to monitor the important parameters of each component in real time, To verify the stability and durability of each component of the unit.

In terms of the oil circuit system of the unit, PowerBloc C2750D5B containerized unit is equipped with an independent large capacity oil tank, which can provide continuous operation of the unit for 12 hours. Continuous emergency is guaranteed, and it also provides convenience for testing. The oil tank is equipped with rich oil filling ports, which can meet the different needs of customers.

As a container type diesel generator set, the design of the container should not be sloppy. PowerBloc C2750D5B integrates the entire power system in a standard 40 foot high container, with a compact internal structure and higher requirements for heat dissipation. Cummins adopts a separate warehouse design, with separate air intake and exhaust in each compartment to avoid adverse effects between subsystems. The unique top exhaust design allows even if multiple generators are focused, there will be no side exhaust hot air to affect other generators.

PowerBloc C2750D5B containerized generator after 72 hours of testing, the generator load data, fuel consumption data, ventilation system data and other parameters are normal, meeting the design requirements, successfully completing this more severe test. Cummins generator, hard core strength, power protection artifact, if you want to buy Cummins diesel generator, welcome to choose Guangxi Dingbo Power, which can provide you with 30KW-3000KW Yuchai, Shangchai, Cummins, Volvo generator and other well-known brand generator sets at home and abroad provide you with safe, stable and reliable power guarantee.
