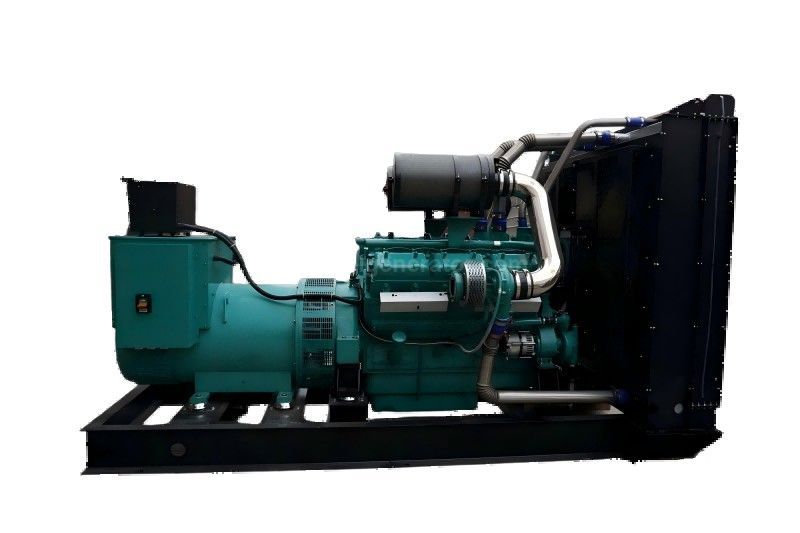

Diesel Generator Set Data
Model: DB-1500GF
Prime power: 1500KW/1875KVA
Rated current: 2700A
Rated frequency: 50Hz
Power factor: 0.8lag
Rated voltage: 230/400V
Transport package: plastic film/ plywood case
For more types, please contact us
Why Choose Us
Dingbo is original manufacturer of diesel generator set. Factory direct sale, guaranteed quality and affordable price.
Our diesel generator sets are widely used in telecommunications, energy, transportation, real estate, hospital, residential building, data center and other fields, having long-term strategic cooperation with a lot of well-known enterprises. From research and development to production, from raw material procurement, assembly and processing to finished product debugging and testing, each process is strictly implemented, in all aspects meet the national, industry standards and contract provisions of the quality, specifications and performance requirements.
We have a professional and technical team, with an average working experience of more than 10 years in the generator industry. In the spirit of "keep improving", they actively collect and attract advanced technology and products at home and abroad, and constantly update the products, so that our diesel generators have been recognized by the majority of users.
If a customer can not find his supplier to support them when equipment has problem, after sales service is not guaranteed, which is a very helpless thing. While we have perfect after-sales service to support you to solve problem, it's not that you can't find us after you have a problem on your equipment. We will be with you and solve your problems with heart.
Export Case
So far, our diesel genset sold to Ethiopia, Venezuela, Singapore, Nigeria, Thailand, U.S.A etc. all over the world, both having good feedback from customers.
Specific Project Cases:
FAQ
1. Do you have your own factory?
Yes, we have. Welcome to visit our factory.
2. What is the delivery time and do you have product in stock?
Delivery time depends on order quantity. Generally, within 10 days for open genset, 20 days for silent genset. We have some power capacities in stock, if need details, please contact us.
3. What is your warranty period?
Our warranty is 1 year or 1000running hours whichever comes first. But based on some special project, we can extended our warranty period.
4. Does your generator have global warranty?
Yes, We supply the warranty. Also most of our products like Cummins, Volvo, Perkins, Deutz, Doosan, Yuchai, Weichai etc. power generator enjoy the global warranty service. And the alternator we use like Stamford and marathon also enjoy the global warranty service, so you do not need to worry about the after-sales service.
5. What is your payment terms?
We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight. But based on some special project and special order, we can do something on payment item.
6. Do you provide OEM service?
Yes, we can put your company logo on our diesel genset, just tell us your requirements, then we will do it for you.
Our Service
Before service
Our professional engineer will give you some consultation of technology and related planning before sale, such as selection of equipment, supporting facilities, the design of equipment room. We can also answer and solve the using problem you faced.
After sale service
1. Free guide to install and debugging
2. Free training and consult
3. Guiding how to protect your equipment
4. We will set up clients' document, tracking service, regular inspection, maintenance for life
5. We offers pure perennial spare parts and maintenance engineers will be ready to provide.
Dingbo Cloud on line service will help you to manage your equipment, save cost and improve efficiency.
Configuration
1) Ricardo engine
2) Shanghai Stamford alternator(Stamford, Leroysomer, Marathon, Siemens, ENGGA brand for option)
3) SmartGen 6110 control panel as standard, AMF Control Panel Deep Sea DSE7320, SmartGen HGM6120, cloud monitoring platform for option. ATS, synchronous parallel for option
4) Chint breaker as standard, ABB, Schneider Breaker for option
5) 8/12 Working hours base bottom fuel tank, external fuel tank for option
6) Anti-Vibration mounted system
7) Battery and battery connecting cable, battery charger
8) Industrial silencer and flexible exhaust hose
1500kW Ricardo Diesel Generator Set Technical Datasheet
Manufacturer: | Guangxi Dingbo Generator Set Manufacturing Co.,Ltd> |
Genset model | DB-1500GF |
Type | Open type or Silent type |
Prime Power: | 1500KW/1875KVA |
Standby Power: | 1650KW/2062KVA |
Rated current: | 2700A |
Rated voltage: | 400/230V or as you required |
Rated frequency/speed: | 1500rpm/50Hz |
Power factor: | 0.8lag |
Phase: | 3 phase 4 wire |
Noise level: | 100dB at 7m ( open type generator) |
70dB at 7m(silent type generator) | |
Dimension (L x W x H): | Open type: 4800×1900×2400mm(for reference) |
Silent type: 7000 x 2900 x3000mm(for reference) | |
Net weight: | Open type: 11000kg |
Silent type: 16000kg |
Ricardo TAD1500 Diesel Engine Datasheet
Manufacturer: | Ricardo Engine Co.,Ltd |
Engine model | TAD1500 |
Prime power: | 1650kW |
Standby power: | 2062kW |
Frequency/Speed: | 1500RPM / 50Hz |
Cylinders no. & Type: | 12, V-type, 4 stroke |
Aspiration: | Turbocharged, air-to-air intercooled |
Cooling method | Water-cooled |
Displacement: | 30.561L |
Compression ratio | 17:1 |
Governor | Electronic |
Bore x Stroke(mm): | 138 × 158 |
Start mode: | Electric start |
Starter motor: | 24V DC |
Type Injection System: | Direct injection |
Total Lubrication System Capacity | 130L |
Max. oil temperature (°C) | 125 |
Coolant Capacity (L) | 160 |
Alternator technical datasheet
Manufacturer | Stamford/ Marathon/ Engga/ Shanghai Stamford/ Leroy Somer |
Continuous rated power: | 1500KW/1875KVA |
Rated Voltage: | 400/230V |
Frequency/Speed: | 1500rpm /50Hz |
Phase: | 3 phase 4 wire |
Power Factor: | 0.8lag |
Efficiency: | 94.7% |
Regulator: | AVR |
Stator: | Double layer concentric |
Rotor: | Single/double bearing |
Exciter type: | Brushless excitation |
Windings: | 100% copper |
Short circuit current capacity(%) | >300IN 10s( with PMG or Auxiliary winding) |
Recovery time(Tr) | 1s |
Waveform : TIF | <50 |
Waveform : THD | <3% |
Waveform : THF | <2% |
Winding pitch | 2/3 |
Voltage regulation: | ± 1.0 % |
Protection: | IP22 or IP23 |
Insulation class | H |
Duty | Continuous |
Number of poles | 4 |
Altitude | ≤1000m |
Rated power factor | 0.8lag |
Stator winding | 6ends |
Rotor | With damping cage |
Overload | 110% rated load for 2 hour per 24 hour |
Ambient temperature | 40℃ |
Maximum overspeed | 2250 rpm 2minutes |
Controller
Standard controller
Model: Deep Sea 7320 or SmartGen 6110
Automatic controller, integrating digital, intelligent and network techniques, is used for automatic control and monitoring system of single genset. It can carry out functions of automatic start/stop, data measurement, alarm protection and three remote (remote control, remote measurement and remote communication). The controller uses LCD display, optional language interface including Chinese, English, Spanish, Russian, Portuguese, Turkish, Polish and French with easy and reliable operation.
Auto parallel controller
Model: Deep Sea 8610 or SmartGen HGM9510
Synchronising & Load Sharing Control Module
The auto parallel controller represents the latest in complex load sharing & synchronising control technology. Designed to handle the most complex grid type generator applications the control module is packed with multiple features and benefits that are unrivalled across the generator control industry.
