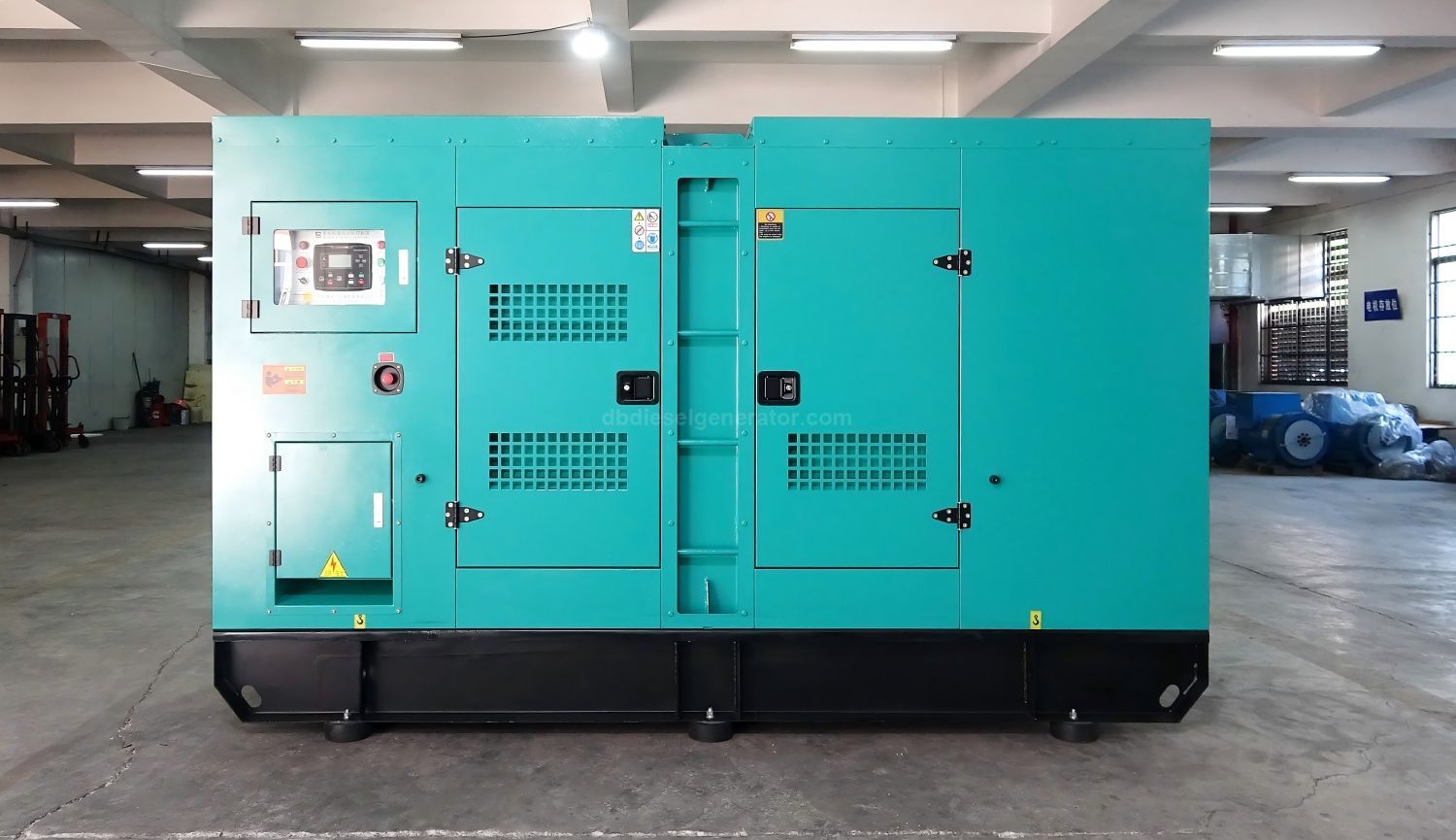

64kW 80kVA Ricardo Silent Diesel Generator Set

1. The output power of Dingbo Ricardo generator sets range from 20kW to 2200kW, making them suitable for various scales of applications, from household backup power to large-scale industrial electricity supply.

2. With advanced combustion technology, the gensets achieve high combustion efficiency and low pollutant emissions, meeting environmental protection and energy-saving requirements.

3. Utilizing high-quality materials and precision manufacturing processes, the generator sets effectively reduce noise and vibration, ensuring stable and reliable operation of the equipment.

4. Featuring an electronic control starting system, they start quickly, are easy to operate, and simple to maintain.

5. The gensets come equipped with four-protection functions and remote distance control capability.

Diesel Generator Technical Specifications

Optional Configurations / Designs

Enclosed Silent Canopy

Galvanized Coating (Optional)

ISO Containerized (Optional)

Marine-Grade Anticorrosive Coating (Optional)
For other alternator, control panel, or circuit breaker configurations, please contact an authorized dealer.

Directives

– 2006/42/EC Machinery Safety Directive
– 2014/30/EU Electromagnetic Compatibility Directive
– 2014/35/EU Low Voltage Directive

Standards

– EN ISO 8528-13:2016 (or the latest version)
– EN ISO 12100:2010
– EN ISO 13857:2019
– EN 60204-1:2018
– EN IEC 61000-6-2:2019
– EN IEC 61000-6-4:2019

Quality Management Systems (if applicable)
– ISO 9001, ISO 14001, ISO 45001, etc.

Engine Specifications: Ricardo TAD64GE

Alternator Specifications

Control Panel

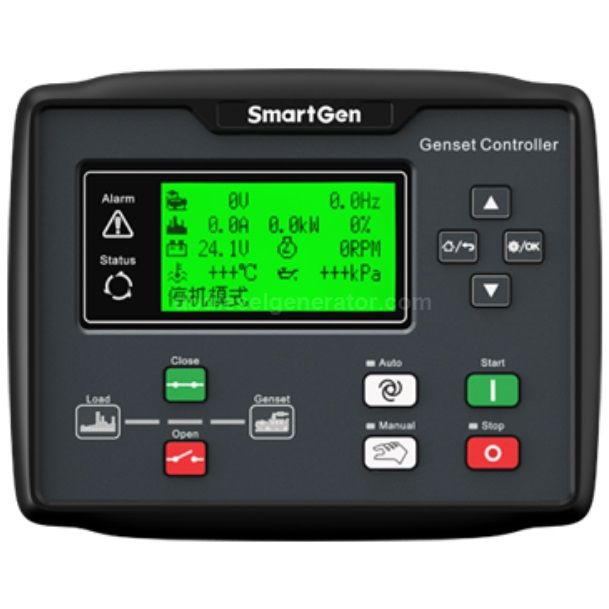

LCD multifunction control panel (SmartGen controller, model HGM6110N-4G-G)

Automatic control system with auto start/stop

Our cloud service management system can let you remote control(start/stop) and monitor generator set by App on computer or mobile phone any time any where, more efficient and cost-effective management of your generator set.

Operating Environment:

Product Features:

Automatic controller has network communication module inside, which can realize genset access to internet. After controller logging in cloud server, the unit data information (include GPS positioning, altitude, etc.) will be uploaded in real time to the corresponding cloud server. Users can monitor the genset and inquire the genset running status, the event log, as well as configure the parameters via cloud server by phone APP (ISO or Android) and computer terminal equipment. The network communication module also has SMS function.

Automatic controller uses 32-bit microprocessor which can achieve precision measurement, value adjustment, timing and threshold setting etc.. All the parameters can be configured from front panel or use USB interface (or RS485 interface) to adjust via PC. It can be widely used in all types of automatic control system for its compact structure, simple connections and high reliability.

Automatic controller, integrating digital, intelligent and network techniques, is used for automatic control and monitoring system of genset. It can carry out functions of automatic start/stop, data measurement, alarm protection and three “remote” (remote control, remote measure and remote communication). The controller uses LCD display, optional display interface including Chinese, English, Spanish, Russian, Portuguese, Turkish, Polish and French with easy and reliable operation.

Features

1. Remote control(start/stop)

Display real time status for engine and alternator.

Support automatic/manual stop/start, reset, close and other operations.

Support power generation closing / opening, utility closing / opening and other operations.

All operations need to be authenticated by face or control code.

2. Remote monitoring

Diesel engine: Speed, water temperature, oil pressure, liquid level, battery voltage, charging voltage etc.

Generator: Power, power factor, three-phase current, three-phase voltage, frequency, etc.

3. Real time data

Diesel engine: including all detailed data such as accumulated running time, maintenance countdown, etc

Generator: including the accumulated electric energy and other detailed data that can be collected and analyzed.

Mains / bus: three phase voltage, single phase voltage, frequency, phase, etc.

Various input and output, programmable access, etc.

4. Save the operation data of the genset in recent 3 months.

5. Genset daily running hours, total running hours for easier maintenance.

6. Record all information of genset, such as power, voltage, current, model, brand, supplier etc.

7. Support multi genset management and parallel genset management.

8.Multi machine view, single machine control, unlimited number, multi person management.

Below protection shut down causes are included:

Low Coolant Level

High coolant temperature

Low oil pressure

Low output frequency

High output frequency

Low output voltage

High output voltage

Low Fuel Level

Emergency stop

The main characteristics are as follows:

- 132*64 LCD display with backlight, eight optional languages interface (Chinese, English, Spanish, Russian, Portuguese, Turkey, Polish and French), push-button operation;

- Acrylic screen, improved wearable and scratch resistance property;

- Silica-gel panel and keys can well adapt to higher and lower temperature;

- With RS485 communication port, can achieve “three remote” functions via MODBUS protocol (available for the controller with RS485 port);

- With CANBUS port which can be connected to EFI with J1939, it not only can monitor frequently-used data (such as water temperature, oil pressure, rotated speed and fuel consumption, etc.) but also can control start, stop, high speed and low speed (controller with CANBUS port is needed) via CANBUS port;

- Adapt to 3P4W, 3P3W, 1P2W and 2P3W (120V/240V), 50Hz/60Hz AC power system;

- Can collect and display 3 phase voltage, 3 phase current, frequency, power parameter of mains/gens;

Mains                                 Generator

Line voltage (Uab, Ubc, and Uca)        Line voltage (Uab, Ubc, and Uca)

Phase voltage (Ua, Ub, and Uc)         Phase voltage (Ua, Ub, and Uc)

Frequency   HZ                      Frequency   HZ

Phase Sequence                      Phase Sequence

Load

Current   IA, IB, IC

Active power kW

Reactive power kvar

Apparent power kVA

Power factor PF

Generator accumulated energy kWh

Output percentage with load %

- Mains have functions of over/under voltage and loss of phase; Gens have functions of over/under voltage, over/under frequency, over current and over power;

- Precision measure and display of parameters about engine,

Temp. (WT),           °C/ °F

Oil pressure (OP),      kPa/psi/bar

Fuel level (FL),         %         Fuel remains     L

Speed (SPD),          r/min

Battery Voltage (VB),    V

Charger Voltage (VD),   V

Accumulative running hours

Accumulative start times

- Control protection: Automatic start/stop of diesel genset, close/open (ATS control) and perfect failure display and protection;

- With ETS, idle speed control, pre-heat control, speed droop/raising control, all of them are relay output;

- Parameter setting: Allow user to modify setting and store them in internal EEPROM memory. The parameters cannot be lost even when power off. All of parameters can be set not only from the front panel, but also use USB interface (or PS485 interface) to adjust them via PC.;

- Multi sensors of temperature, pressure and fuel level can be used directly, parameters can be defined by user;

- Multi conditions of crank disconnect (speed, oil pressure, frequency) can be selected;

- With emergency start function;

- With flywheel teeth numbers automatic identification function;

- Power supply range: (8~35)VDC, accommodating to different starting battery volts;

- Connect to cloud server through 4G Wi-Fi;

- With SMS function, alarm information can be sent by the set 5 phone numbers, and can control the genset and inquire the genst status by SMS;

- With GPS positioning function to obtain the genset position to realize the positioning of genset;

- Applied JSON format network data communication protocol to realize upload when genset data changes, the compression algorithm is adopted at the same time, significantly reduces the network flow, and the alarm data can be uploaded to server immediately;

- With maintenance function. Types (date or running time) can be selected and actions (warning or alarm shutdown) can be set when maintenance time out;

- Event log, real-time clock, scheduled start & stop pump unit (can be set as start pump unit once a day/week/month whether with load or not);

- Add rubber gasket between shell and controller screen, the waterproof can reach IP65;

- Controller is fixed by metal fixing clips;

Modular design, flame-retardant ABS shell, embedded mounting, compact structure and easy installation.
