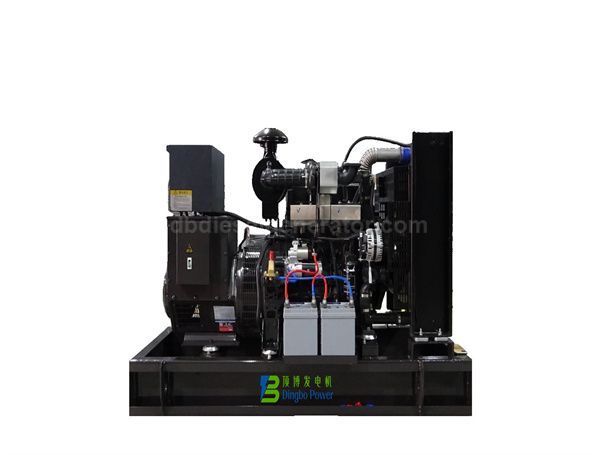

Diesel Generator Set Data
Model: DB-350GF
Prime power: 350KW/437.5KVA
Rated current: 630A
Rated frequency: 50Hz
Power factor: 0.8lag
Rated voltage: 230/400V
Connection way: 3 phase 4 wire
Start Mode: Electric start
Production lead time: 10 to 20 days
For more types, please contact us.
Our advantages for diesel generator set
1.Generator diesel high-quality steel are thickness canopy -- 2MM to 6MM
2.Generator diesel high density sound-absorbing material -- sound insulation, fireproofing
3.Generator diesel 12V/ 24V DC battery with charger, battery connects wire
4. Generator diesel 8-12 hours fuel tank with fuel indicator, long time for working.
5. Genset High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker
6.New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.
7.Generator diesel Beautiful & practicably design, Bottom hole for forklift, water outlet & oil outlet for easy maintenance
8. Double open door on both sides of the Gensets.Spacious doors can check for every part of the engine and alternator.
Warranty & Certification
Warranty : one year or 1000 hours(diesel generator set ) whichever reach first from exfactory date.
1. During the guarantee period-
we will provide the free easy damageable spare parts of alternator caused by our quality of production or raw material.
2. After expiration-
our provides cost spare parts maintenance of alternator. If engine with international warranty service, the engine product warranty by local authorization Service agent.
Certification: CE, ISO and the others
Why Choose Us
Dingbo is original manufacturer of diesel generator set. Factory direct sale, guaranteed quality and affordable price.
Our diesel generator sets are widely used in telecommunications, energy, transportation, real estate, hospital, residential building, data center and other fields, having long-term strategic cooperation with a lot of well-known enterprises. From research and development to production, from raw material procurement, assembly and processing to finished product debugging and testing, each process is strictly implemented, in all aspects meet the national, industry standards and contract provisions of the quality, specifications and performance requirements.
We have a professional and technical team, with an average working experience of more than 10 years in the generator industry. In the spirit of "keep improving", they actively collect and attract advanced technology and products at home and abroad, and constantly update the products, so that our diesel generators have been recognized by the majority of users.
If a customer can not find his supplier to support them when equipment has problem, after sales service is not guaranteed, which is a very helpless thing. While we have perfect after-sales service to support you to solve problem, it's not that you can't find us after you have a problem on your equipment. We will be with you and solve your problems with heart.
Export Case
So far, our diesel genset sold to Ethiopia, Venezuela, Singapore, Nigeria, Thailand, U.S.A etc. all over the world, both having good feedback from customers.
Specific Project Cases:
FAQ
1. Do you have your own factory?
Yes, we have. Welcome to visit our factory.
2. What is the delivery time and do you have product in stock?
Delivery time depends on order quantity. Generally, within 10 days for open genset, 20 days for silent genset. We have some power capacities in stock, if need details, please contact us.
3. What is your warranty period?
Our warranty is 1 year or 1000running hours whichever comes first. But based on some special project, we can extended our warranty period.
4. Does your generator have global warranty?
Yes, We supply the warranty. Also most of our products like Cummins, Volvo, Perkins, Deutz, Doosan, Yuchai, Weichai etc. power generator enjoy the global warranty service. And the alternator we use like Stamford and marathon also enjoy the global warranty service, so you do not need to worry about the after-sales service.
5. What is your payment terms?
We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight. But based on some special project and special order, we can do something on payment item.
6. Do you provide OEM service?
Yes, we can put your company logo on our diesel genset, just tell us your requirements, then we will do it for you.
Our Service
Before service
Our professional engineer will give you some consultation of technology and related planning before sale, such as selection of equipment, supporting facilities, the design of equipment room. We can also answer and solve the using problem you faced.
After sale service
1. Free guide to install and debugging
2. Free training and consult
3. Guiding how to protect your equipment
4. We will set up clients' document, tracking service, regular inspection, maintenance for life
5. We offers pure perennial spare parts and maintenance engineers will be ready to provide.
Dingbo Cloud on line service will help you to manage your equipment, save cost and improve efficiency.
Dingbo Power diesel genset powered by Shangchai engine SC25/27G is characterized by a major upgrade in product quality, reliability, economy, vibration, noise and appearance, especially. Most parts of the SC25/27G series engine are interchangeable with those of the original model. Made in accordance with the SAIC MOTOR manufacturing standard.
Product Features
1.Engine reliability is improved by adopting one-piece crankshaft made of non-quenched and tempered steel and improved gaskets for all connections.
2.Symmetrical-design of two water pumps and two oil pumps improves cooling and lubrication capacities, reduces water tank volume, and adapts to applications in the regions with different ambinet temperatures.
3.Two-section exhaust pipe and optimized leakproof structure reduce probability of leakage.The air intake manifold is changed into casting structure.
4.Redesigned fuel pipeline, improved other outside pipeline, air cleaner arrangement, and guard design, as well as reasonable layout make the engine appear more in sense of industrial design.
5.Fractured connecting-rod provides easy service and maintenance.
| Diesel Generator Set Data | ||||||
| Manufacturer: | Guangxi Dingbo Power Equipment Manufacturing Co.,Ltd | |||||
| Set Type: | DB-350GF | |||||
| Prime Power: | 350KW/437.5KVA | |||||
| Rated Current: | 630（A） | |||||
| Rated Frequency: | 50（Hz） | |||||
| Start-up time: | 5～6（s） | |||||
| Power Factor: | 0.8（Lag） | |||||
| Rated Voltage: | 400/230（V） | |||||
| Standard Features | ||||||
Engine: Shangchai SC25G610D2 Radiator 40℃ Fans are driven by belt, with safety guard 24V charge alternator Dry type air filter, fuel filter, oil filter Alternator: single bearing alternator, IP22-IP23, insulation class H/H Main line circuit breaker Standard control panel Absorber Muffler Factory test report, User manual etc. | ||||||
| Diesel Engine Data | ||||||
| Manufacturer: | Shanghai Diesel Engine Co.,Ltd | |||||
| Model: | SC25G610D2 | |||||
| Prime/Standby Power: | 405KW/445.5KW | |||||
| Rated Speed: | 1500（r/min） | |||||
| Cycle: | 4 stroke | |||||
| Engine type | 12 cylinders, in line, wet liner, 4 valves, direct injection | |||||
| Displacement: | 25.8L | |||||
| Bore and Stroke: | 135*155（mm） | |||||
| Compression Ratio: | 16:1 | |||||
| Governor Type: | Electronic | |||||
| Start battery voltage: | 24V DC | |||||
| Air Intake System | ||||||
| Air Intake System: | Turbocharged, intercooled | |||||
| Injection timing | 13.5°BTDC | |||||
| Exhaust System | ||||||
| Max Allowable Back Pressure: | 10kpa | |||||
| Fuel System | ||||||
| Fuel System: | Direct injection | |||||
| 100%( Prime Power) Load: | 98L/h | |||||
| 75%（Prime Power( Load | 72.9L/h | |||||
| 50%( Prime Power) Load: | 49.2L/h | |||||
| Oil System | ||||||
| Total Oil Capacity: | 55-65L | |||||
| Oil pump | Gear type driven by crankshaft | |||||
| Cooling System | ||||||
| Cooling Way: | Fresh water forced circulation | |||||
| Engine Coolant Capacity: | 48L | |||||
| Thermostat: | 77-90℃ | |||||
| Cooling fan | Blower type, iron 1100mm diameter, 6 blades | |||||
| Alternator Data | ||||||
| Manufacturer: | Stamford/ Siemens/ Marathon/ ENGGA / Leroy Somer | |||||
| Excitation Mode: | Brushless and self- exciting | |||||
| Number of phase and Access Act: | 3-phase 4-wire | |||||
| Connecting Type: | “Y” type connecting | |||||
| Alternator Capacity: | 437.5KVA | |||||
| Alternator Efficiencies: | 95％ | |||||
| Overload: | （PRP）110% load can run 1h | |||||
| Protection Level: | IP22-IP23 | |||||
| Insulation Class, Temperature Rise: | H/H | |||||
| Telephone Influence Factor (TIF): | ＜50 | |||||
| THF: | ＜2% | |||||
| Voltage Regulation, Steady State: | ≤±1% | |||||
| Altitude: | ≤1000m | |||||
| Genset Electrical Performance | ||||||
| Voltage Regulation: | ≥±5% | |||||
| Voltage Regulation, Stead State: | ≤±1% | |||||
| Sudden Voltage Warp (100% Sudden Reduce): | ≤+25% | |||||
| Sudden Voltage Warp (Sudden Increase): | ≤-20% | |||||
| Voltage Stable Time (100% Sudden Reduce): | ≤6S | |||||
| Voltage Stable Time (Sudden Increase): | ≤6S | |||||
| Frequency Regulation, Stead State: | ≤5% | |||||
| Frequency Waving: | ≤1.5% | |||||
| Sudden Frequency Warp (100% Sudden Reduce): | ≤+12% | |||||
| Sudden Frequency Warp (Sudden Increase): | ≤-10% | |||||
| Frequency Recovery Time(100%Sudden Reduce): | ≤5S | |||||
| Frequency Recovery Time(Sudden Increase): | ≤5S | |||||
| Options | ||||||
| Engine | Alternator | |||||
| Heater | Anti Condensation Heater | |||||
| Battery Charger | Permanent Magnet Generator（PMG） | |||||
| Water Separator | Drop CT（For Paralleling） | |||||
| Daily Fuel Tank | ||||||
| Fuel Level Sensor | ||||||
| Control System | Others | |||||
| Remote Control Panel | Rainproof Type | |||||
| Auto Transfer Switch (ATS) | Soundproof Type | |||||
| Paralleling System | Trailer Type | |||||
| Open Type | ||||||
| Overall Size | Weight | |||||
| 3300*1400*1780mm) | 2850(kg) | |||||
| Soundproof Type | ||||||
| Overall Size | Weight | |||||
| 4200*1600*2000(mm) | 4200(kg) | |||||
More technical information, please send inquiry to us.
| Genset Model | Generating Set Output | Engine Model | Engine Power | ||||
| Prime Power | Standby Power | Prime | Standby | ||||
| KW | KVA | KW | KVA | KW | kW | ||
| T2 emission | |||||||
| DB-50GF | 50 | 62.5 | 55 | 68.75 | SC4H95D2 | 62 | 68 |
| DB-68GF | 68 | 85 | 75 | 93.75 | SC4H115D2 | 78 | 86 |
| DB-90GF | 90 | 112.5 | 100 | 125 | SC4H160D2 | 105 | 116 |
| DB-100GF | 100 | 125 | 110 | 137.5 | SC4H180D2 | 120 | 132 |
| DB-130GF | 130 | 162.5 | 143 | 178.75 | SC7H220D2 | 150 | 165 |
| DB-136GF | 136 | 170 | 150 | 187.5 | SC7H230D2 | 154 | 170 |
| DB-150GF | 150 | 187.5 | 165 | 206.25 | SC7H250D2 | 168 | 185 |
| DB-165GF | 165 | 206 | 182 | 227.5 | SC8D280D2 | 185 | 204 |
| DB-180GF | 180 | 225 | 200 | 250 | SC9D310D2 | 208 | 228 |
| DB-200GF | 200 | 250 | 220 | 275 | SC9D340D2 | 228 | 255 |
| DB-220GF | 220 | 275 | 240 | 300 | SC10E380D2 | 255 | 280 |
| DB-250GF | 250 | 312.5 | 275 | 343.75 | SC12E420D2 | 280 | 308 |
| DB-250GF | 250 | 312.5 | 275 | 343.75 | SC13G420D2 | 280 | 308 |
| DB-280GF | 280 | 350 | 308 | 385 | SC12E460D2 | 307 | 338 |
| DB-300GF | 300 | 375 | 330 | 412.5 | SC15G500D2 | 330 | 373 |
| DB-360GF | 360 | 450 | 400 | 500 | SC25G610D2 | 405 | 445 |
| DB-400GF | 400 | 500 | 450 | 562.5 | SC25G690D2 | 459 | 505 |
| DB-450GF | 450 | 562.5 | 500 | 625 | SC27G755D2 | 505 | 560 |
| DB-500GF | 500 | 625 | 550 | 687.5 | SC27G830D2 | 561 | 610 |
| DB-550GF | 550 | 687.5 | 600 | 750 | SC27G900D2 | 602 | 662 |
| DB-600GF | 600 | 750 | 660 | 825 | SC33W990D2 | 660 | 726 |
| DB-700GF | 700 | 875 | 770 | 962.5 | SC33W1150D2 | 782 | 860 |
| T3 emission | |||||||
| DB-40GF | 40 | 50 | 45 | 56.25 | 4HTAA4.3-G31 | 51 | 56 |
| DB-50GF | 50 | 62.5 | 55 | 68.75 | 4HTAA4.3-G32 | 62 | 68 |
| DB-64GF | 64 | 80 | 70 | 87.5 | 4HTAA4.3-G33 | 78 | 86 |
| DB-80GF | 80 | 100 | 88 | 110 | 4HTAA4.3-G34 | 95 | 105 |
| DB-90GF | 90 | 112.5 | 100 | 125 | 4HTAA4.3-G35 | 106 | 117 |
| DB-100GF | 100 | 125 | 110 | 137.5 | 4HTAA4.3-G36 | 125 | 140 |
| DB-120GF | / | / | 120 | 150 | 4HTAA4.3-G36 | 125 | 140 |
| DB-110GF | 110 | 137.5 | 120 | 150 | 6HTAA6.5-G31 | 128 | 141 |
| DB-120GF | 120 | 150 | 132 | 165 | 6HTAA6.5-G32 | 140 | 155 |
| DB-136GF | 136 | 170 | 150 | 187.5 | 6HTAA6.5-G35 | 155 | 170 |
| DB-150GF | 150 | 187.5 | 165 | 206.25 | 6HTAA6.5-G33 | 168 | 185 |
| DB-176GF | / | / | 176 | 220 | 6HTAA6.5-G34 | 186 | 205 |
| DB-165GF | 165 | 206.25 | 180 | 225 | 6DTAA8.9-G31 | 185 | 204 |
| DB-180GF | 180 | 225 | 200 | 250 | 6DTAA8.9-G32 | 208 | 228 |
| DB-200GF | 200 | 250 | 220 | 275 | 6DTAA8.9-G33 | 230 | 253 |
| DB-220GF | 220 | 275 | 240 | 300 | 6DTAA8.9-G34 | 255 | 280 |
| DB-250GF | / | / | 250 | 312.5 | 6DTAA8.9-G34 | 255 | 280 |
| DB-250GF | 250 | 312.5 | 275 | 343.75 | 6ETAA11.8-G32 | 280 | 308 |
| DB-280GF | 280 | 350 | 308 | 385 | 6ETAA11.8-G33 | 307 | 338 |
| DB-300GF | 300 | 375 | 330 | 412.5 | 6ETAA11.8-G31 | 340 | 380 |
| DB-320GF | 320 | 400 | 352 | 440 | 6ETAA12.8-G32 | 360 | 400 |
| DB-360GF | 360 | 450 | 400 | 500 | 6ETAA12.8-G31 | 400 | 440 |
| DB-400GF | 400 | 500 | 450 | 562.5 | 12GTAA27-G34 | 459 | 505 |
| DB-450GF | 450 | 562.5 | 500 | 625 | 12GTAA27-G33 | 505 | 555 |
| DB-500GF | 500 | 625 | 550 | 687.5 | 12GTAA27-G32 | 565 | 610 |
| DB-550GF | 550 | 687.5 | 600 | 750 | 12GTAA27-G31 | 622 | 684 |
| DB-400GF | 400 | 500 | 450 | 562.5 | 6KTAA25-G311 | 460 | 506 |
| DB-460GF | 460 | 575 | 506 | 632.5 | 6KTAA25-G310 | 520 | 572 |
| DB-510GF | 510 | 637.5 | 561 | 701.25 | 6KTAA25-G39 | 572 | 629 |
| DB-560GF | 560 | 700 | 616 | 770 | 6KTAA25-G38 | 622 | 684 |
| DB-400GF | 400 | 500 | 450 | 562.5 | 6KTAA25-G36 | 460 | 506 |
| DB-460GF | 460 | 575 | 506 | 632.5 | 6KTAA25-G35 | 520 | 572 |
| DB-510GF | 510 | 637.5 | 561 | 701.25 | 6KTAA25-G34 | 572 | 629 |
| DB-560GF | 560 | 700 | 616 | 770 | 6KTAA25-G33 | 622 | 684 |
| DB-600GF | 600 | 750 | 660 | 825 | 6KTAA25-G32 | 685 | 754 |
| DB-650GF | 650 | 812.5 | 720 | 900 | 6KTAA25-G31 | 728 | 800 |
| DB-720GF | 720 | 900 | 800 | 1000 | 6WTAA35-G32 | 818 | 900 |
| DB-800GF | 800 | 1000 | 880 | 1100 | 6WTAA35-G31 | 882 | 970 |
| Genset Model | Generating Set Output | Engine Model | Engine Power | ||||
| Prime Power | Standby Power | Prime | Standby | ||||
| KW | KVA | KW | KVA | KW | kW | ||
| DB-50GF | 56 | 70 | 62 | 77 | 4HT4.3-G21 | 62 | 68 |
| DB-68GF | 61 | 76 | 67 | 84 | 4HT4.3-G22 | 67 | 74 |
| DB-90GF | 80 | 100 | 88 | 110 | 4HT4.3-G23 | 86 | 95 |
| DB-100GF | 95 | 119 | 105 | 131 | 4HTAA4.3-G21 | 105 | 116 |
| DB-130GF | 110 | 138 | 121 | 151 | 4HTAA4.3-G23 | 120 | 132 |
| DB-136GF | 110 | 138 | 121 | 151 | 4HTAA4.3-G22 | 120 | 132 |
| DB-150GF | 125 | 156 | 138 | 172 | 6HTAA6.5-G21 | 136 | 150 |
| DB-165GF | 136 | 170 | 150 | 187 | 6HTAA6.5-G22 | 150 | 165 |
| DB-180GF | 166 | 208 | 183 | 228 | 6HTAA6.5-G23 | 180 | 198 |
| DB-200GF | 186 | 233 | 205 | 256 | 6DTAA8.9-G21 | 205 | 226 |
| DB-220GF | 207 | 259 | 228 | 285 | 6DTAA8.9-G24 | 228 | 250 |
| DB-250GF | 215 | 269 | 237 | 296 | 6DTAA8.9-G22 | 235 | 259 |
| DB-250GF | 232 | 290 | 255 | 319 | 6DTAA8.9-G23 | 255 | 282 |
| DB-280GF | 280 | 350 | 308 | 385 | 6ETAA11.8-G21 | 307 | 338 |
Related Products
Quicklink
Mob.: +86 134 8102 4441
Tel.: +86 771 5805 269
Fax: +86 771 5805 259
E-mail: dingbo@dieselgeneratortech.com
Skype: +86 134 8102 4441
Add.: No.2, Gaohua Road, Zhengxin Science and Technology Park, Nanning, Guangxi, China.
Get in Touch
