Detailed Introduction of the 600kw Shangchai Engine Generator SC27G900D2

May. 15, 2023

As an experienced manufacturer of diesel generator sets, Dingbo Power has established close cooperation with Yuchai, Shangchai and other companies over the years. The Dingbo series of diesel generator sets supporting Yuchai, Shangchai, Weichai, Volvo, Cummins and other well-known diesel engine brands at home and abroad, provide safe, stable and reliable power security for enterprises and institutions such as mechanical engineering, chemical mines, factories, hotels, real estate, schools, hospitals, etc., where power resources are tight.



As a generator set manufacturer that has been deeply involved in the diesel generator set industry for nearly 20 years, Dingbo Power has always followed the principle of reliable quality, reasonable price, timely delivery and considerate service, providing high-tech, high-quality products and high-quality services to users. In order to meet the requirements of different users, Dingbo Power also provides automatic switching, automatic switching and three remote monitoring, automatic grid connection system and low noise Special functional units such as trailers with different voltage frequencies.



Today, Dingbo Power will introduce this high-quality of 600kw Shangchai diesel genset, which is supported by Shangchai engine SC27G900D2 and Shanghai Stanford GR355G. The supporting power of Dingbo series Shangchai diesel generator set is the diesel engine produced by Shanghai Diesel Engine Co., Ltd., which has the characteristics of excellent power, economy, stability, reliability, operability, low operation and maintenance costs, and nationwide interlocking three guarantees and accessories supply services.



The genset is equipped with a G series diesel engine, which is an improved design product based on the original G218 diesel engine. It has achieved significant upgrades in product quality, reliability, economy, vibration noise, and appearance. Most of the components of this series of engines are interchangeable with the original model and are the preferred supporting power for emergency backup generator sets built according to SAIC MOTOR manufacturing standards.

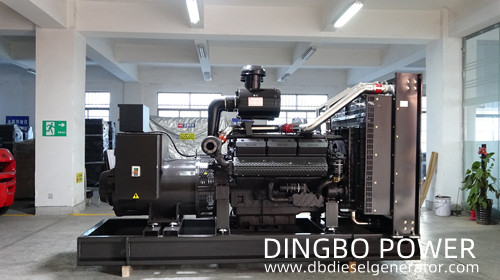

Introduction to the 600kw Shangchai Engine Generator SC27G900D2


Technical parameters of 600kw Shangchai diesel generator set:

Main technical parameters of diesel generator set

Output power: 750KVA/600KW

Stable voltage adjustment rate ≤ ± 0.5%

Frequency adjustment rate ≤ ± 1%

Rated voltage: 400V

Transient voltage regulation rate ≤ 20~-15

Transient adjustment rate ≤ ± 10-7%
Rated current: 1080AVoltage recovery time ≤ 15SFrequency stability time ≤ 5S
Rated frequency: 50HZ

Volatility ≤ ± 0.5%

Volatility ≤ 0.5%
Weight: 4650KGSize: 3650 × 1400 × 2000mm (for reference only)


Main parameters of diesel engine

Model: SC27G900D2

Speed: 1500r/minMinimum fuel consumption rate: 205g/w · h
Type: Four strokeSpeed regulation method: electronic speed regulation

Lub. Method:Fully forced pressure feed type

Number of cylinders: inline 12Starting method: 24VDC electric starting

Oil pan capacity:High/ Low level 65L/55L

Common/standby power: 602/662KWBore stroke: 135 × 155mmDisplacement:26.6 L

Aspiration method: turbocharging and

intercooling

Cooling method:Fresh water forced

circulation

Compression ratio:16 :1

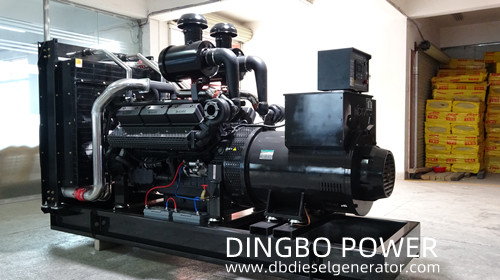

Introduction to the 600kw Shangchai Engine Generator SC27G900D2


Guangxi Dingbo Power Equipment Manufacturing Co., Ltd. is an officially authorized OEM manufacturer of diesel generator sets in China by Shanghai Diesel Engine Co., Ltd. Dingbo Power has a modern production base, a professional technical research and development team, advanced manufacturing technology, a sound quality management system, and a sound after-sales service guarantee. If you would like to buy a diesel generator set, please contact us by email dingbo@dieselgeneratortech.com.
