Product Model: DB800QZ-26T
Rated flow: 800 m³/h
Rated head: 26m
Self suction height: 8m
Inlet diameter: DN200 mm/in×2
Outlet diameter:DN200 mm/in×2
Engine model:Shangchai4HTAA4.3-G22
Engine power: 20kW
Rotational speed: 1800rpm
Fuel tank capacity: 250L
For more types, please contact us.
Dingbo Power Strong Self-Priming Pump DB800QZ-26T model delivers a rated flow of 800m³/h and a rated head of 26m. It can be used in a wide range of scenarios, such as drainage from collection pits or well points, urban drainage, emergency rescue and flood discharge, farm irrigation, remote fire water supply, fire emergency rescue, and mine drainage, etc.
Why Choose Us
Dingbo is original manufacturer of diesel generator set. Factory direct sale, guaranteed quality and affordable price.
Our diesel generator sets are widely used in telecommunications, energy, transportation, real estate, hospital, residential building, data center and other fields, having long-term strategic cooperation with a lot of well-known enterprises. From research and development to production, from raw material procurement, assembly and processing to finished product debugging and testing, each process is strictly implemented, in all aspects meet the national, industry standards and contract provisions of the quality, specifications and performance requirements.
We have a professional and technical team, with an average working experience of more than 10 years in the generator industry. In the spirit of "keep improving", they actively collect and attract advanced technology and products at home and abroad, and constantly update the products, so that our diesel generators have been recognized by the majority of users.
If a customer can not find his supplier to support them when equipment has problem, after sales service is not guaranteed, which is a very helpless thing. While we have perfect after-sales service to support you to solve problem, it's not that you can't find us after you have a problem on your equipment. We will be with you and solve your problems with heart.
Export Case
So far, our diesel genset sold to Ethiopia, Venezuela, Singapore, Nigeria, Thailand, U.S.A etc. all over the world, both having good feedback from customers.
Specific Project Cases:
FAQ
1. Do you have your own factory?
Yes, we have. Welcome to visit our factory.
2. What is the delivery time and do you have product in stock?
Delivery time depends on order quantity. Generally, within 10 days for open genset, 20 days for silent genset. We have some power capacities in stock, if need details, please contact us.
3. What is your warranty period?
Our warranty is 1 year or 1000running hours whichever comes first. But based on some special project, we can extended our warranty period.
4. Does your generator have global warranty?
Yes, We supply the warranty. Also most of our products like Cummins, Volvo, Perkins, Deutz, Doosan, Yuchai, Weichai etc. power generator enjoy the global warranty service. And the alternator we use like Stamford and marathon also enjoy the global warranty service, so you do not need to worry about the after-sales service.
5. What is your payment terms?
We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight. But based on some special project and special order, we can do something on payment item.
6. Do you provide OEM service?
Yes, we can put your company logo on our diesel genset, just tell us your requirements, then we will do it for you.
Our Service
Before service
Our professional engineer will give you some consultation of technology and related planning before sale, such as selection of equipment, supporting facilities, the design of equipment room. We can also answer and solve the using problem you faced.
After sale service
1. Free guide to install and debugging
2. Free training and consult
3. Guiding how to protect your equipment
4. We will set up clients' document, tracking service, regular inspection, maintenance for life
5. We offers pure perennial spare parts and maintenance engineers will be ready to provide.
Dingbo Cloud on line service will help you to manage your equipment, save cost and improve efficiency.

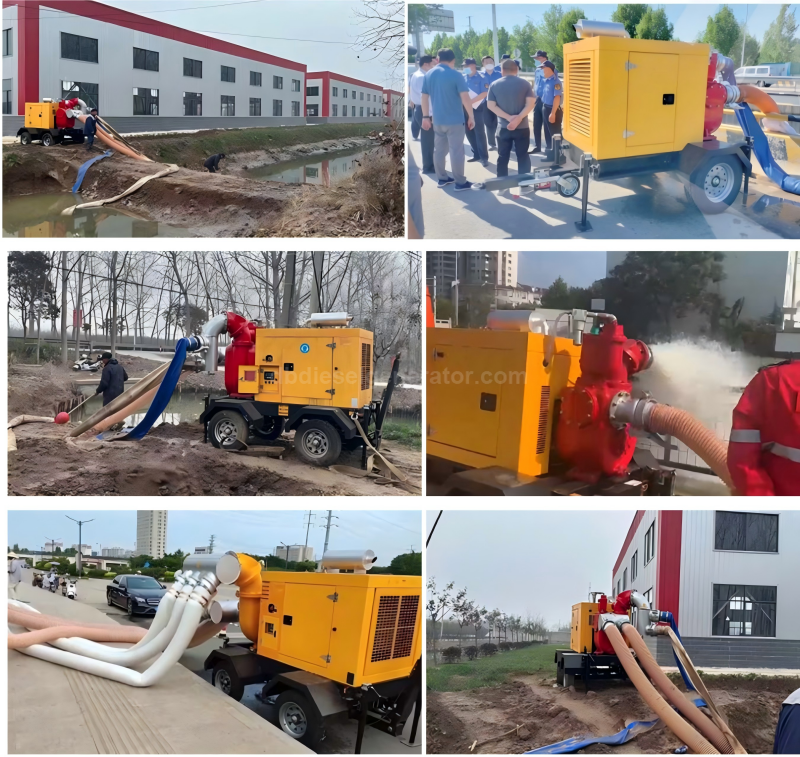

DINGB POWER diesel pumps are widely used in the following scenarios because of its powerful power and ability to adapt to complex environments:
-Used for farmland irrigation, water diversion, and drainage, especially in remote rural areas lacking electricity.
- Can be integrated with modern irrigation systems such as sprinkler and drip irrigation.
- Plays a crucial role in urban drainage, flood prevention, and drought relief.
- Used for rapid water removal in cities after heavy rainfall, typhoons, and other natural disasters.
- Applied in urban water supply, wastewater treatment plants, and industrial park water systems.
- Suitable for industries such as steel, chemical, and power plants that require large-volume water supply.
- Used for underground drainage and foundation dewatering to prevent water accumulation at construction sites.
- Essential for mine drainage to ensure safe mining operations.
- Serves as a backup water source for firefighting in cities, high-rise buildings, large factories, and oil fields.
- Suitable for areas with unstable electricity supply or no fixed fire water source.
- Used for ship ballast water discharge, seawater desalination systems, and offshore drilling platform water supply.
- Provides emergency drainage and firefighting support at docks and ports.
- Ideal for areas with complex terrain and distant water sources, ensuring a stable water supply for residents and livestock.
- Capable of handling long-distance and high-lift water transfer challenges.
Diesel engine water pumps do not need to rely on the power grid and they have strong power and strong adaptability, that’s why they are widely used in all kinds of water supply and drainage needs occasions. They are important equipment for emergency rescue and industrial production. If you have specific industry requirements, contact us today, DINGBO POWER can recommend the best models and solutions for you.

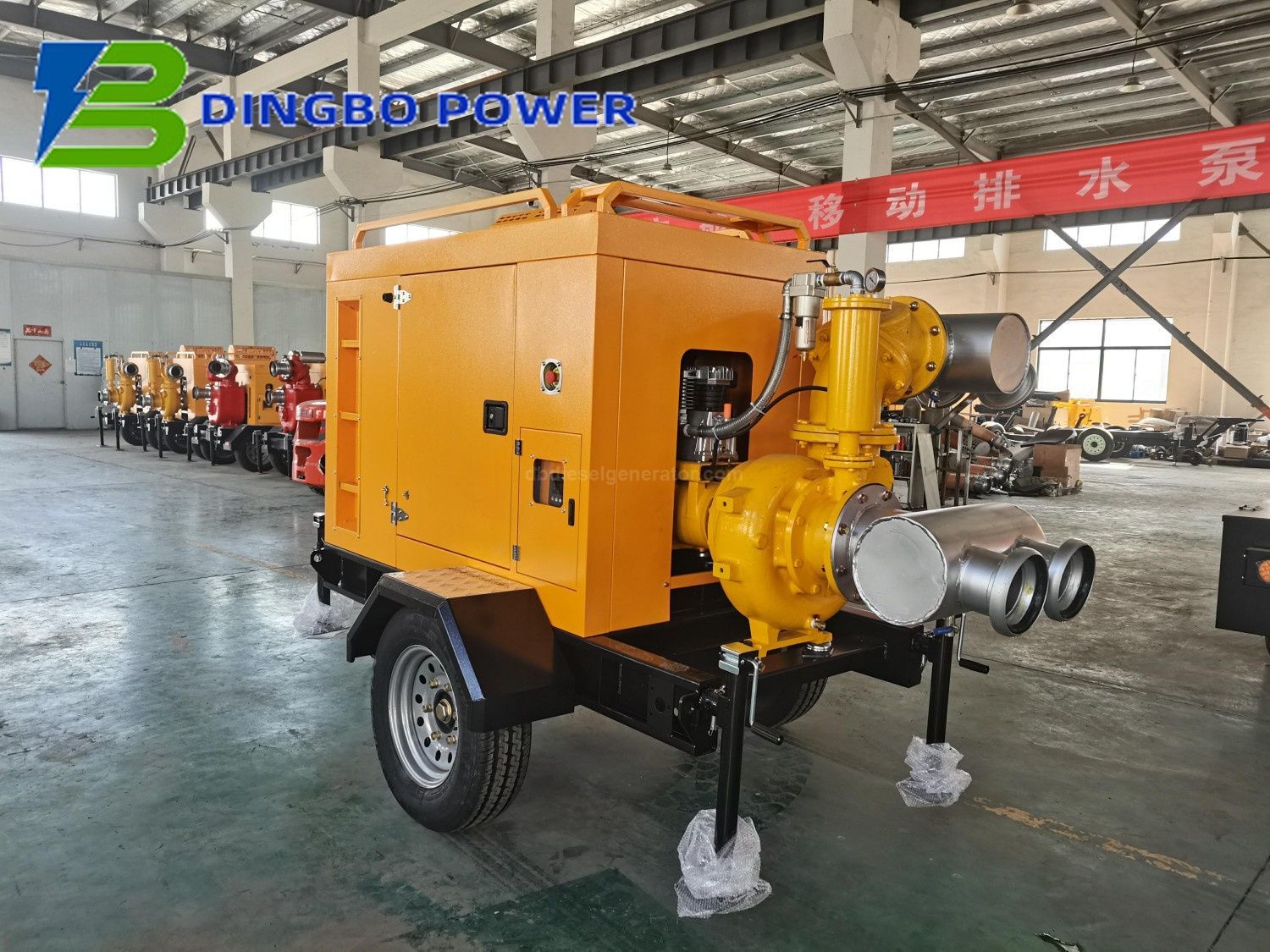

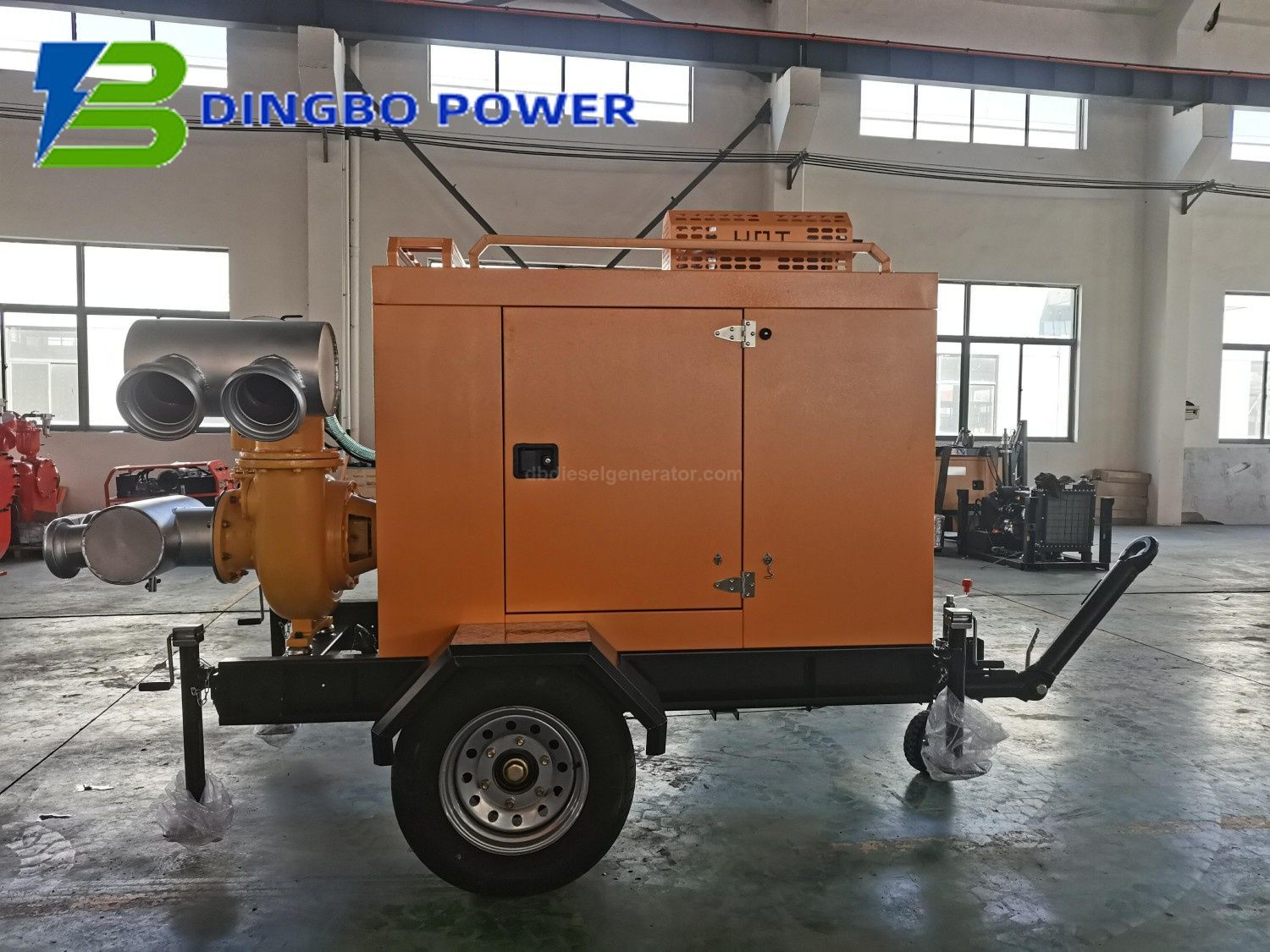

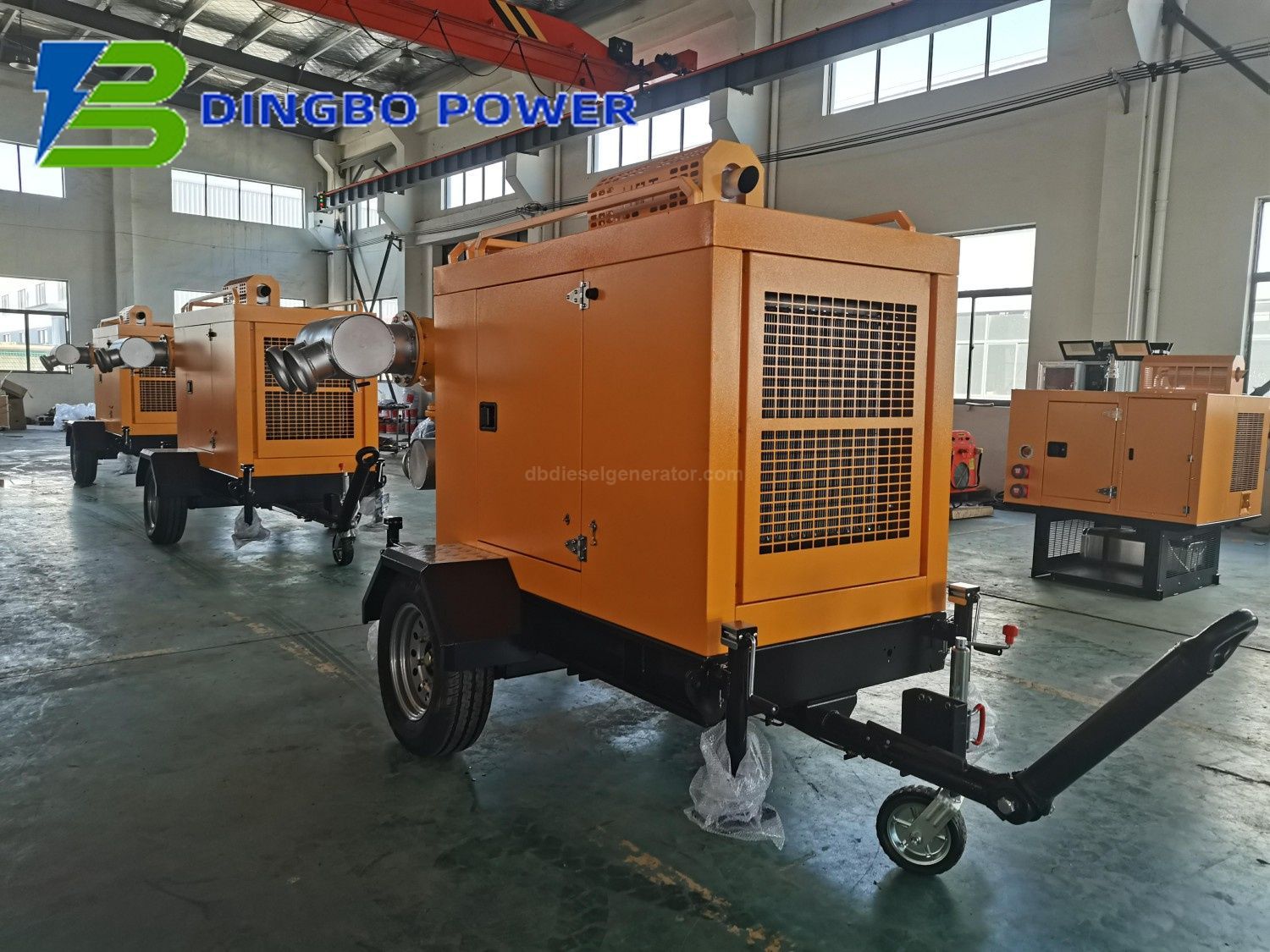

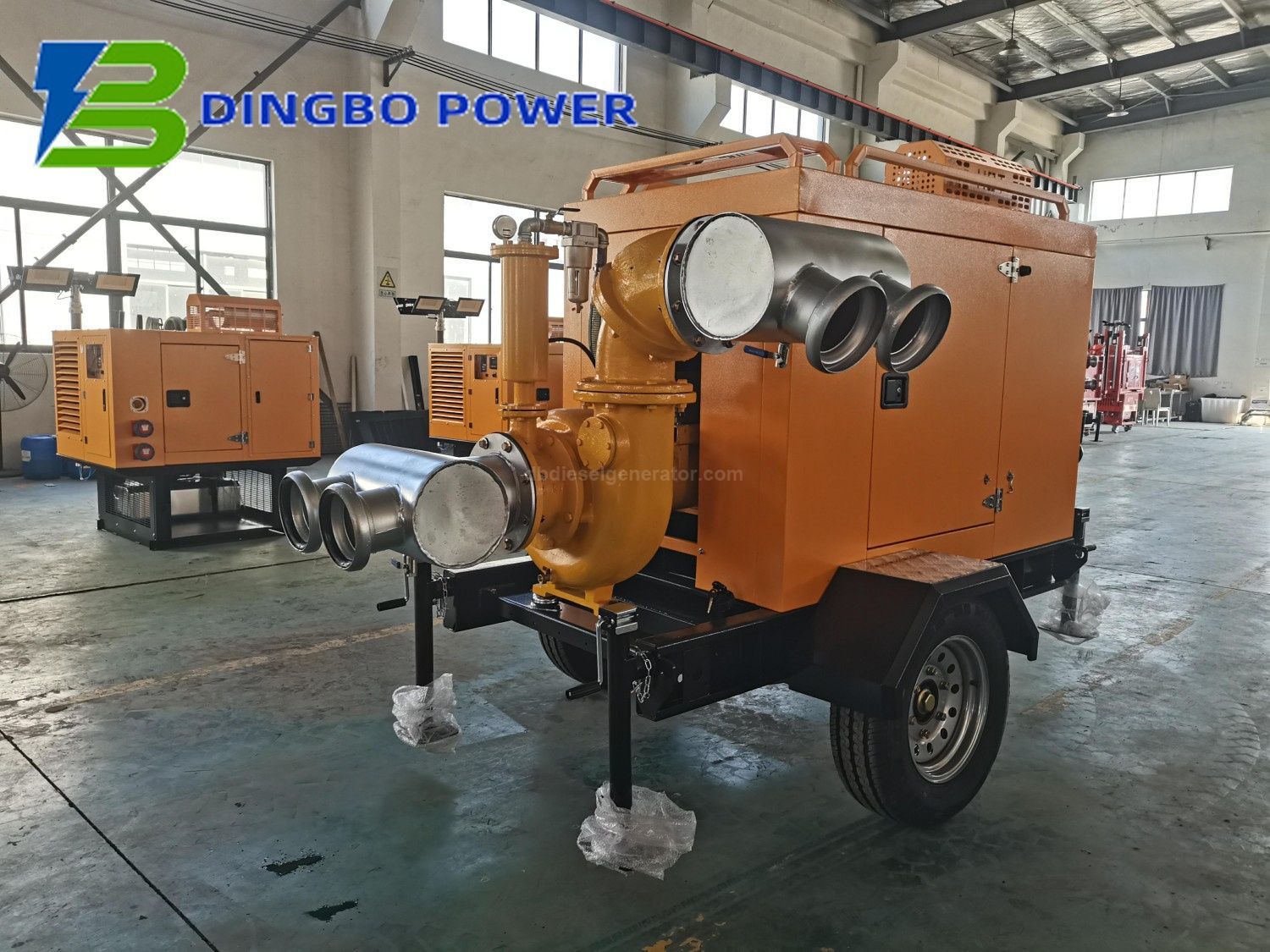

Technical Parameters of 800 m³/h Mobile Trailer Strong Self-Priming Pump with Weatherproof canopy:
| Product Model | DB800QZ-26T |
| Rated flow（m³/h） | 800 |
| Rated head (m) | 26 |
| Self suction height (m) | 8 |
| Inlet diameter (mm/in) | DN200×2 |
| Outlet diameter (mm/in) | DN200×2 |
| Engine brand | Shangchai |
| Engine model | 4HTAA4.3-G22 |
| Emission standard | China Stage II |
| Engine power (kW) | 120 |
| Rotational speed (rpm) | 1800 |
| Number of cylinders | 4 |
| Engine structure | Inline 4 cylinders, turbocharged inter-cooled |
| Fuel tank capacity (L) | 250 |
| Dimensions (length * width * height mm) | 2800*1800*2500 (only for reference) |
| Weight (kg) | 3000 (only for reference) |
| Standard Configuration | |
| control system | Fuchuang Integrated Controller |
| pump body | Strong self-priming pump+vacuum assisted system |
| Vacuum assisted | Electronic low-pressure fuel-free maintenance free system |
| Trailer type | 4-wheel leaf spring trailer,the tow bar is adjustable up and down and comes with a handbrake and brake light, with a speed limit of 50 kilometers per hour |
| Canopy type | 2mm galvanized steel plate+outdoor spray painted paint |
| Inlet pipe/outlet hose | DN200 inlet pipe 8 meters/piece, 2 pieces in total, DN200 outlet belt 20 meters/roll, 2 rolls in total |
| Interface method | Paul Quick Interface |
| Battery | Maintenance free battery+connecting cable |
