QZ series Trailer-mounted Diesel Engine Water Pumps

Dingbo Power QZ Series Self-Priming Diesel Engine Water Pump Units are designed for municipal sewage and industrial wastewater treatment plants, as well as graded and centralized wastewater treatment systems.

Our Quick Deployment Flood Pump is expertly engineered to provide fast, reliable water removal in emergencies, making it an ideal choice for municipal dewatering equipment, oilfield operations, and disaster relief. Mounted on a heavy-duty trailer, this low maintenance diesel pump trailer is designed for rapid mobilization and long-term, unattended operation in tough environments.

Inquire Now Next Product Download Datasheet

Introduction Signs of Diesel Engine Pump Set Failure Features 50Hz 60Hz

With a powerful 8-inch self-priming water pump, this system delivers high flow drainage suitable for flood response, large-area irrigation, and slurry transfer. It features a durable and easy-to-operate structure, allowing users to handle challenging conditions with ease.

Depending on the required flow rate, customers can select high-performance engines such as Shangchai, Yuchai, or Weichai, all known for their efficiency and reliability. Whether used for municipal water management, agricultural irrigation, oilfield dewatering, or firefighting support, this trailer pump offers flexible and efficient performance across multiple industries.

Model	Inlet Diameter(mm)	Outlet Diameter(mm)	Flow Rate (m³/h)	Head (m)	Speed(rpm)	Matched Power(≥kW)
DB300QZ-25T	150	150	300	25	1500	30
DB360QZ-25T	150	150	360	25	1500	36
DB450QZ-25T	150	150	450	25	1500	36
DB500QZ-20T	200	200	500	20	1500	60
DB600QZ-20T	200	200	600	20	1500	60
DB700QZ-20T	200	200	700	20	1500	70
DB1000QZ-20T	250	250	1000	20	1500	90
DB1200QZ-20T	250	250	12000	20	1500	90
DB1500QZ-20T	250	250	15000	20	1500	130
DB1700QZ-20T	350	350	1700	20	1500	180
DB2000QZ-20T	350	350	2000	20	1500	180

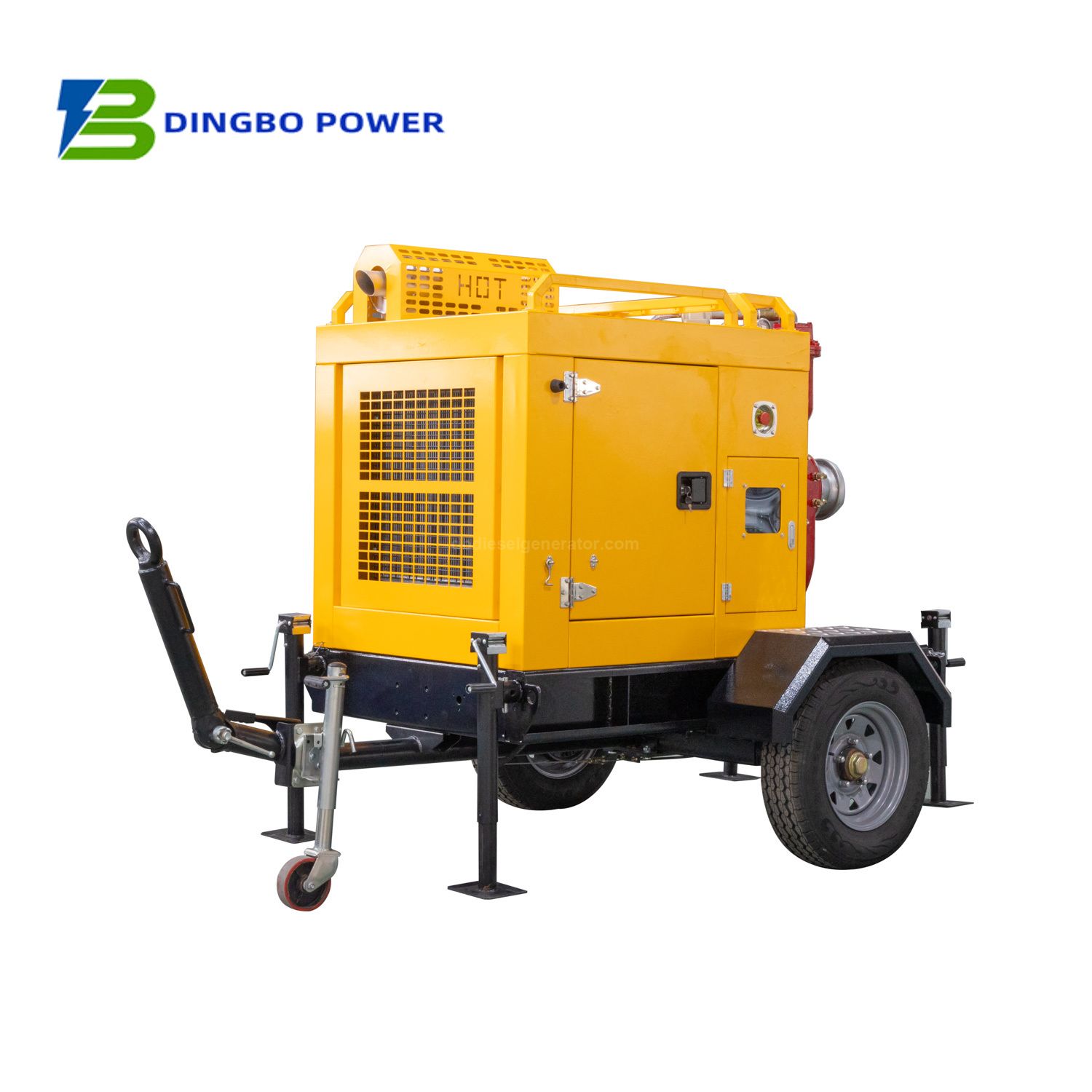

Our diesel engine driven water pumps that are mounted on a trailer can easily be transported from one location to another. The high-power self-priming pump features robust self-priming capability, enabling automatic gas evacuation from the suction line without pre-filling water and quickly initiating normal operation. This characteristic makes it particularly advantageous in scenarios requiring frequent relocation or height-restricted installations. For instance, it is extensively utilized in agricultural irrigation and firefighting water supply applications.

Why Choose Us

Dingbo is original manufacturer of diesel generator set. Factory direct sale, guaranteed quality and affordable price.

Our diesel generator sets are widely used in telecommunications, energy, transportation, real estate, hospital, residential building, data center and other fields, having long-term strategic cooperation with a lot of well-known enterprises. From research and development to production, from raw material procurement, assembly and processing to finished product debugging and testing, each process is strictly implemented, in all aspects meet the national, industry standards and contract provisions of the quality, specifications and performance requirements.

We have a professional and technical team, with an average working experience of more than 10 years in the generator industry. In the spirit of "keep improving", they actively collect and attract advanced technology and products at home and abroad, and constantly update the products, so that our diesel generators have been recognized by the majority of users.

If a customer can not find his supplier to support them when equipment has problem, after sales service is not guaranteed, which is a very helpless thing. While we have perfect after-sales service to support you to solve problem, it's not that you can't find us after you have a problem on your equipment. We will be with you and solve your problems with heart.

Export Case

So far, our diesel genset sold to Ethiopia, Venezuela, Singapore, Nigeria, Thailand, U.S.A etc. all over the world, both having good feedback from customers.

Diesel generators

Specific Project Cases:

https://www.dbdieselgenerator.com/project-case/

FAQ

1. Do you have your own factory?

Yes, we have. Welcome to visit our factory.

2. What is the delivery time and do you have product in stock?

Delivery time depends on order quantity. Generally, within 10 days for open genset, 20 days for silent genset. We have some power capacities in stock, if need details, please contact us.

3. What is your warranty period?

Our warranty is 1 year or 1000running hours whichever comes first. But based on some special project, we can extended our warranty period.

4. Does your generator have global warranty?

Yes, We supply the warranty. Also most of our products like Cummins, Volvo, Perkins, Deutz, Doosan, Yuchai, Weichai etc. power generator enjoy the global warranty service. And the alternator we use like Stamford and marathon also enjoy the global warranty service, so you do not need to worry about the after-sales service.

5. What is your payment terms?

We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight. But based on some special project and special order, we can do something on payment item.

6. Do you provide OEM service?

Yes, we can put your company logo on our diesel genset, just tell us your requirements, then we will do it for you.

Our Service

Before service

Our professional engineer will give you some consultation of technology and related planning before sale, such as selection of equipment, supporting facilities, the design of equipment room. We can also answer and solve the using problem you faced.

After sale service

1. Free guide to install and debugging

2. Free training and consult

3. Guiding how to protect your equipment

4. We will set up clients' document, tracking service, regular inspection, maintenance for life

5. We offers pure perennial spare parts and maintenance engineers will be ready to provide.

Dingbo Cloud on line service will help you to manage your equipment, save cost and improve efficiency.

Signs of Diesel Engine Pump Set Failure

Leaks:

An early sign of a leak is coolant leaking from the water pump. There may be a hole in the lower part of the water pump. If coolant leaks from the drain, a leak is present and a small amount of dry coolant around the hole is normal. Depending on the colour of the coolant, it may be green or pink.

Noise:

A water pump that is about to fail will make a grinding and rumbling noise. If the water pump shaft is loose, it means the water pump is damaged.

Overheating:

The water pump may also fail as the engine temperature rises, which is another sign of failure. In addition, there are many reasons why a water pump can overheat, so it is important to diagnose the problem promptly. If the engine temperature is higher than normal, the cooling system needs to be checked

Features of QZ Series Self-Priming Diesel Engine Water Pumps

1. Dual-bearing supported main shaft ensures stable performance and reliable operation.

2. Integrated vacuum system enables quick self-priming with high suction efficiency, achieving a maximum suction lift of 8 meters.

3. Double suction impeller delivers higher flow rate and head capacity.

4. Non-clogging impeller design ensures superior solids handling and passage capability.

5. Independent low-pressure oil-free maintenance-free vacuum pump allows self-priming without pre-filling water, paired with a mechanical water-vapor separator tank for enhanced operational reliability.
