CZ Series Trailer-Mounted Diesel Engine Water Pumps

Dingbo Power CZ series trailer-mounted diesel engine water pumps integrate high-performance vacuum system, P-S-P auto-switching system, dry-run protection system, efficient cooling system, easy-disassembly structure, non-clogging impeller design and self-cleaning slag discharge. These units are capable of handling liquids containing large solid particles, making them ideal for municipal sewage management, flood control projects, and agricultural irrigation.

For more types, please contact us.

Inquire Now

Introduction Advantage Technical Parameters 50Hz 60Hz

Features of CZ Series Self-Priming Diesel Engine Water Pump Units:

High-Performance Vacuum System: Large exhaust capacity, high vacuum efficiency, low-temperature operation, maintenance-free design, oil-free lubrication, and mechanical seal-free structure.

P-S-P Auto-Switching System: The EVP self-priming system automatically switches to standby mode once the centrifugal pump completes priming. It reactivates instantly when re-priming is required.

Dry-Run Protection System: Built-in dry-run protection prevents mechanical seal burnout during prolonged dry operation of the priming pump.

Efficient Cooling System: High-pressure cooling water flows from the centrifugal pump’s maintenance port into one end of the vacuum pump’s cooling chamber and rapidly exits from the opposite end. This enables rapid and efficient cooling, ensuring minimum operating temperatures and extended EVP system lifespan.

Easy-Disassembly Structure: The vacuum pump cover on the non-drive end is easily removable, allowing quick withdrawal of vacuum pump vanes for wear inspection.

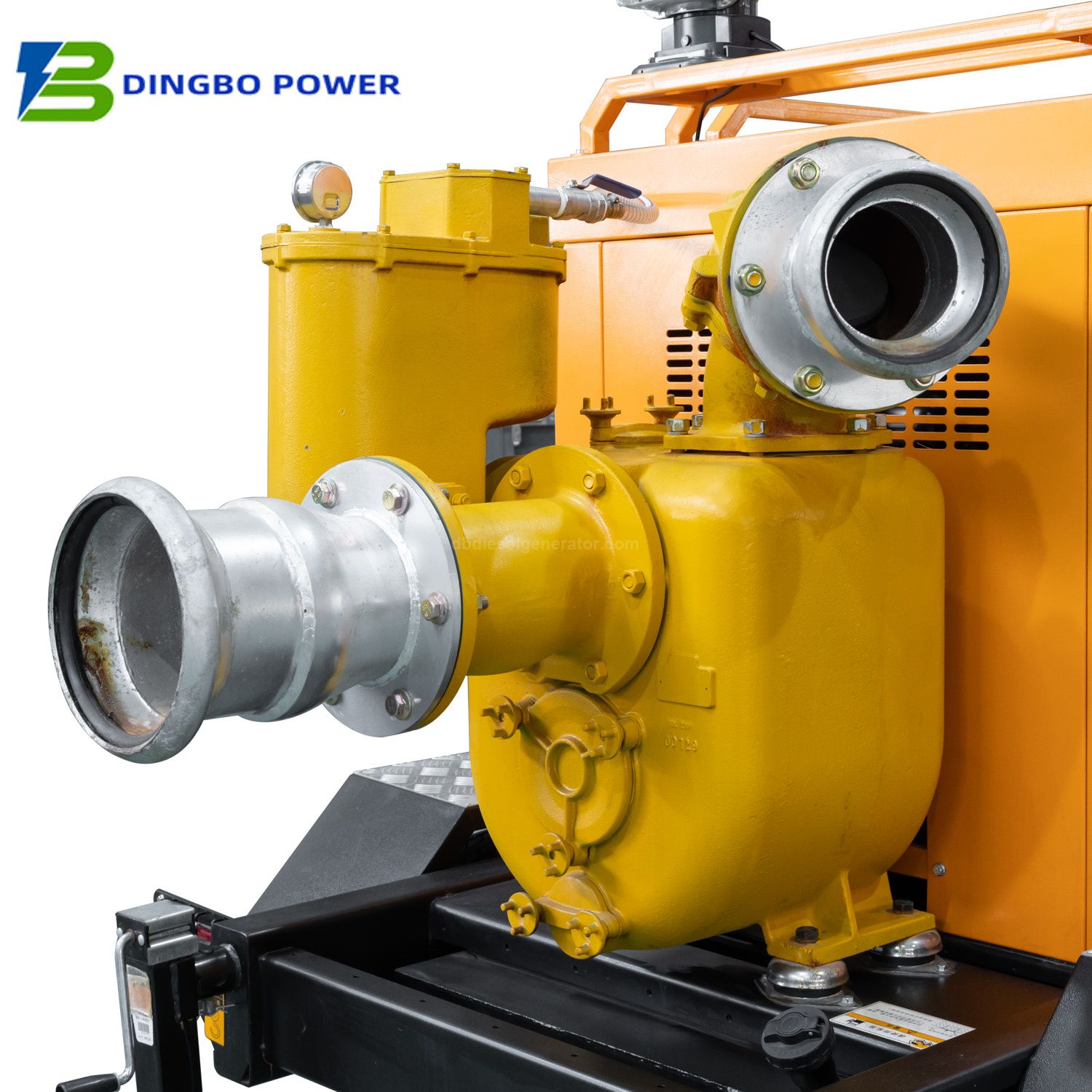

Non-Clogging Impeller Design: Wide-flow-channel impeller ensures smooth passage of solid particles up to 76 mm in diameter.

Self-Cleaning Slag Discharge: A slag-discharging pump cover prevents seal spring jamming caused by sediment accumulation, eliminating seal failures.

Model	Inlet Diameter(mm)	Outlet Diameter(mm)	Flow Rate (m³/h)	Head (m)	Speed (rpm)	Matched Power(≥kW)
DB550CZ-20T	150	150	550	20	1500	36
DB800CZ-15T	200	200	800	15	1500	36
DB900CZ-20T	200	200	900	20	1500	50
DB1000CZ-20T	200	200	1000	20	1800	67
DB900CZ-17T	200	200	900	17	1500	58
DB1000CZ-25T	200	200	1000	25	1800	80
DB1000CZ-20T	200	200	1000	20	1500	70
DB1200CZ-25T	200	200	1200	25	2200	117
DB1100CZ-20T	250	250	1100	20	1500	70
DB1200CZ-20T	250	250	1200	20	1500	90
DB1700CZ-15T	300	300	1700	15	1500	96
DB2000CZ-20T	350	350	2000	20	1500	132

Dingbo Power mobile diesel engine water pumps demonstrate versatile functionality across multiple sectors:

Flood Control & Disaster Relief: Rapid deployment to disaster zones for emergency flood drainage, mitigating threats to lives and property.

Municipal Drainage: Efficient removal of urban road waterlogging and sewer blockages to restore traffic and urban operations.

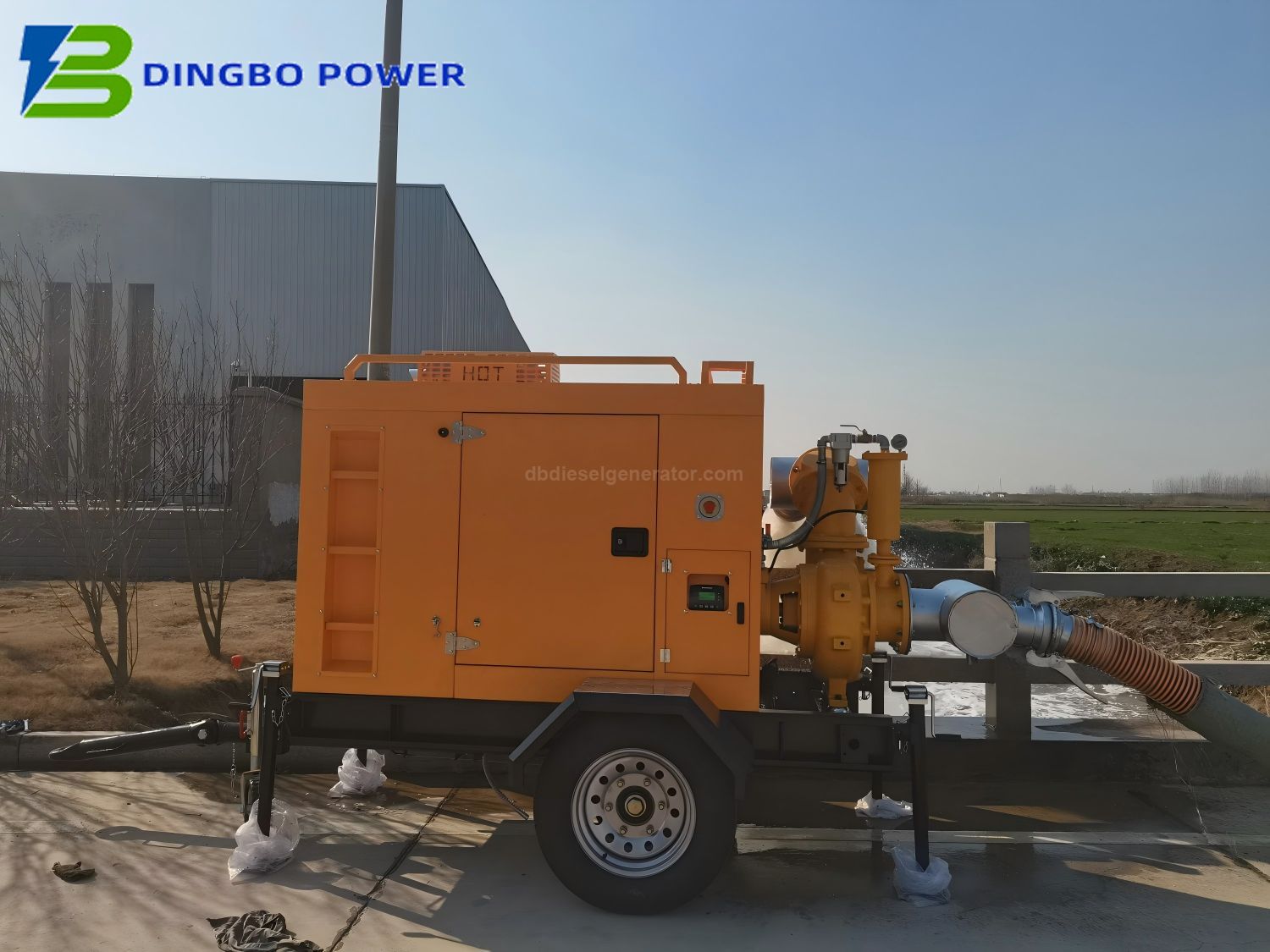

Construction Sites: Foundation pit dewatering and concrete slurry transfer, enhancing on-site efficiency and safety.

Agricultural Irrigation: Flexible water supply solutions for farmland, orchards, and drought-prone regions.

Firefighting & Industrial Operations: Critical support for fire suppression and hazardous liquid transfer/discharge in chemical plants, oil facilities, and industrial complexes.

Why Choose Us

Dingbo is original manufacturer of diesel generator set. Factory direct sale, guaranteed quality and affordable price.

Our diesel generator sets are widely used in telecommunications, energy, transportation, real estate, hospital, residential building, data center and other fields, having long-term strategic cooperation with a lot of well-known enterprises. From research and development to production, from raw material procurement, assembly and processing to finished product debugging and testing, each process is strictly implemented, in all aspects meet the national, industry standards and contract provisions of the quality, specifications and performance requirements.

We have a professional and technical team, with an average working experience of more than 10 years in the generator industry. In the spirit of "keep improving", they actively collect and attract advanced technology and products at home and abroad, and constantly update the products, so that our diesel generators have been recognized by the majority of users.

If a customer can not find his supplier to support them when equipment has problem, after sales service is not guaranteed, which is a very helpless thing. While we have perfect after-sales service to support you to solve problem, it's not that you can't find us after you have a problem on your equipment. We will be with you and solve your problems with heart.

Export Case

So far, our diesel genset sold to Ethiopia, Venezuela, Singapore, Nigeria, Thailand, U.S.A etc. all over the world, both having good feedback from customers.

Diesel generators

Specific Project Cases:

https://www.dbdieselgenerator.com/project-case/

FAQ

1. Do you have your own factory?

Yes, we have. Welcome to visit our factory.

2. What is the delivery time and do you have product in stock?

Delivery time depends on order quantity. Generally, within 10 days for open genset, 20 days for silent genset. We have some power capacities in stock, if need details, please contact us.

3. What is your warranty period?

Our warranty is 1 year or 1000running hours whichever comes first. But based on some special project, we can extended our warranty period.

4. Does your generator have global warranty?

Yes, We supply the warranty. Also most of our products like Cummins, Volvo, Perkins, Deutz, Doosan, Yuchai, Weichai etc. power generator enjoy the global warranty service. And the alternator we use like Stamford and marathon also enjoy the global warranty service, so you do not need to worry about the after-sales service.

5. What is your payment terms?

We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight. But based on some special project and special order, we can do something on payment item.

6. Do you provide OEM service?

Yes, we can put your company logo on our diesel genset, just tell us your requirements, then we will do it for you.

Our Service

Before service

Our professional engineer will give you some consultation of technology and related planning before sale, such as selection of equipment, supporting facilities, the design of equipment room. We can also answer and solve the using problem you faced.

After sale service

1. Free guide to install and debugging

2. Free training and consult

3. Guiding how to protect your equipment

4. We will set up clients' document, tracking service, regular inspection, maintenance for life

5. We offers pure perennial spare parts and maintenance engineers will be ready to provide.

Dingbo Cloud on line service will help you to manage your equipment, save cost and improve efficiency.

No Pre-Filling Required: The self-priming pump automatically draws liquid during initial startup or after prolonged shutdown, eliminating manual priming required by traditional pumps.

Exceptional Adaptability: Operates reliably in extreme environments, including high-altitude regions and sub-zero temperatures, ensuring uninterrupted performance.

High-Power Performance: Equipped with an optimally matched diesel engine that delivers robust power to meet varying flow rates and head requirements.

Low-Maintenance Design: Compact structure with minimal components reduces failure rates, while easily accessible parts simplify inspection and maintenance.

Cost-Effective Operation: No reliance on grid power—ideal for remote or power-unstable areas. Lower long-term costs and superior ROI compared to electric pumps.
