Standby 800KW Cummins Genset Exported To Zimbabwe

On October 10th 2021, our factory--Guangxi Dingbo Power Equipment Manufacturing Co.,Ltd exported one set of standby 800kw genset to Zimbabwe. This diesel generator set will be used for gold mining industry. Our client Mr. Collen find us on the network and contact us to ask about 800kw diesel generator set. After quoted and sent technical specifications, he was satisfied with our price and product. Therefore, he purchased from us. Thanks for your cooperation, Mr.Collen.

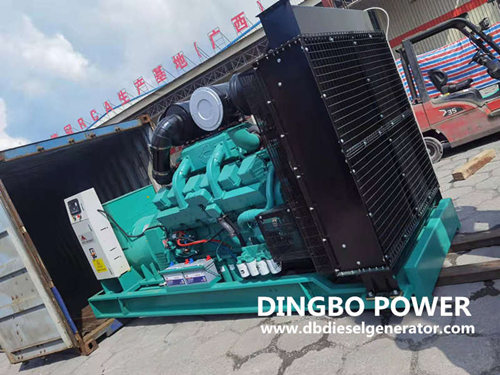

Standby 800kw diesel generator set is open type(without soundproof cabinet) with Cummins engine, original Stamford alternator and Deep Sea controller, 1000L fuel tank etc.

Standby 800KW 1000KVA diesel generator technical data

Manufacturer: Guangxi Dingbo Power Equipment Manufacturing Co.,Ltd

Model:DB-800GF

Standby power: 800KW 1000KVA

Voltage: 230/400V

Speed, frequency: 50Hz, 1500rpm

Current: 1440A

Accessories: 1000L fuel tank, silencer, bellow, elbow, free-maintenance 24V DC battery, factory test report etc.

Diesel engine technical data

Manufacturer: Chongqing Cummins Engine Co.,Ltd

Model: KTA38-G2A

Prime power: 813KW

Standby power: 896KW

Speed, frequency: 1500rpm, 50Hz

Aspiration: Turbocharged , Aftercooled

Fuel System: Cummins PT

No. of Cylinder:V-12

Displacement: 38L

Bore x Stroke: 159X159mm

Compress Ratio: 14.5:1

Fuel consumption:

100% standby rating: 204g/kw.h

100% prime rating: 203g/kw.h

75%: 209g/kw.h

50%: 199g/kw.h

Reference standard: BS-5514 and DIN-6271 standards are based on ISO-3046.

Maximum Allowable Back Pressure: 10Kpa

Exhaust Pipe Size Normally Acceptable: 152mm

Coolant Capacity: 112L

Total oil System Capacity: 170.3L

Alternator technical datasheet

Manufacturer: Cummins Generator Technologies Co.,Ltd

Model: S6L1D-E41

Frequency: 50Hz

Speed: 1500rpm

Voltage: 230/400V, 3 phase 4 wire

Protection level: IP23

Insulation grade: H

AVR Type: MX341, voltage regulation: ±1%, AVR power: PMG

No Load Excitation Voltage (V): 13.5 - 13.6

No Load Excitation Current (A):0.69 - 0.68

Full Load Excitation Voltage (V): 68

Full Load Excitation Current (A):2.8

Exciter Time Constant (seconds):0.16

Stator Winding: Double Layer Concentric

Winding Leads: 12/6

STAMFORD industrial alternators meet the requirements of the relevant parts of the IEC 60034 and the relevant sections of other international standards such as BS5000-3, ISO 8528-3, VDE 0530, NEMA MG1-32, CSA C22.2-100 and AS 60034. Other standards and certifications can be considered on request.

Alternators are manufactured using production procedures having a quality assurance level to BS EN ISO 9001.

Controller technical datasheet

Manufacturer: Deep Sea UK

Model: Deep Sea 7320 ( Auto Mains (Utility) Failure Control Module )

The DSE7320 MKII is a powerful, new generation Auto Mains (Utility) Failure genset control module with a highly sophisticated level of new features and functions, presented in the usual DSE user-friendly format. Suitable for a wide variety of single, diesel or gas Gen-set applications.

Product information

Comprehensive monitoring of the mains (utility) supply and auto changeover.

4-line back-lit LCD text display

Five key menu navigation

Support for up to three remote display units

Configurable inputs (8)

Configurable analogue / digital inputs (6)

Configurable outputs (8)

Tier 4 CAN engine support.

Integral PLC editor.

Manual fuel pump control.

Power monitoring (kW h, kVAr, kv Ah, kV Ar h), reverse power protection, kW overload protection.

Mains monitoring and automatic start and changeover to generator power in the event of a mains (utility) out of limits or failure.

Configurable CT positioning.

Data logging facility

Customisable power up text and images Company logo can be uploaded to the start up splash screen.

Support for 0-10 V, 4-20mA oil pressure senders.

Can be configured for use as a remote display module Single product can be used for dual functionality.
