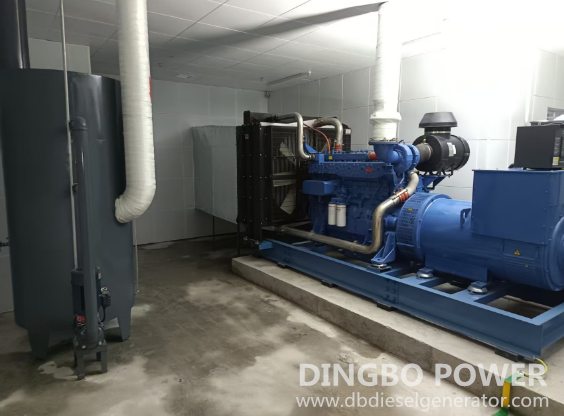

Fuel System of A Diesel Generator Set

In the world of backup and prime power generation, the fuel system of a diesel generator set is more than just a component; it is the EMERGENCY RATIONS that keep critical operations alive during a blackout. However, storing and managing these vital RATIONS is governed by stringent, non-negotiable safety protocols. The core principle is a delicate balance ensure there's enough to last, but never create a fire hazard.  Two critical sets of regulations form the bedrock of a safe and reliable fuel supply system.

1. The Fuel Storage: Strict Limits for Safety

The first rule dictates How much to store. excessive on-site fuel storage is a significant risk. Therefore, clear capacity red lines are established:

* Inside the Generator set Room/Enclosure: The fuel storage is severely restricted. Regulations typically mandate that the fuel tank within a dedicated storage room must not hold more than an 8-hour fuel supply at full load or a maximum volume of 1 cubic meter (approximately 264 gallons), whichever is less. This minimizes the fuel inventory inside the building, drastically reducing the potential fuel source for a fire.

* Outside the Building: For extended runtime requirements of diesel generator sets, larger fuel storage is permitted outdoors or in detached, specially designed bunkers. Here, capacity can be sized for 40 to 64 hours of operation. This is the strategic long-term Fuel Reserve stored safely away from the main structure to prevent a catastrophic event from compromising both the building and its power source.

Safety Infrastructure is Non-Negotiable: Merely limiting quantity isn't enough. The storage environment itself must be fortified. In buildings (especially high-rises), the fuel storage room of diesel genset must be separated by an A-class fire-rated door, creating a critical barrier against fire and smoke spread. Furthermore, all tanks must be properly vented but equipped with flame arrestors on breather pipes. These devices prevent an external spark or flame from traveling back into the tank's vapor space and igniting the fuel—a simple yet life-saving component.

You may be interested in How to Choose Between External Tanks and Base Tanks for Diesel Generator Sets?

2. Tank Placement & Piping: The Physics of Reliable Flow

The second set of rules addresses ‘how to store and deliver it.’ Fuel of a generator set must not only be safe but also reliably reach the engine under all conditions. Gravity and pump capability dictate strict layout commandments:

* The Need for a Day Tank: If the main fuel supply tank is located more than 15 meters (50 feet) away from the generator set, or is situated more than 3.7 meters (12 feet) below the engine's transfer pump, or is positioned above the level of the fuel injectors, an intermediate ‘Day Tank’ or ‘Daily Service Tank’ is mandatory. This is analogous to needing a intermediate water tank in a skyscraper. A day fuel tank, installed close to the engine, ensures a consistent, gravity-fed head of fuel to the primary pump, preventing vapor locks, cavitation, or overflow issues that can starve the engine or create spills.

* Piping Material Matters – A Critical Don't: The choice of piping is crucial. Galvanized steel pipes are expressly prohibited for fuel lines. Over time, diesel fuel (especially modern biodiesel blends) can degrade the zinc coating, causing flakes to detach and travel through the system. These flakes are notorious for clogging fuel filters, injectors, and precision components, leading to engine shutdown at the worst possible moment. The correct specifications call for stainless steel pipes or seamless carbon steel pipes, which offer superior corrosion resistance and long-term integrity.

Conclusion: A System Engineered for Assurance

A well-designed diesel generator set fuel system is a masterpiece of practical engineering where safety and reliability converge. It is not merely about having fuel in a tank. It is a meticulously regulated ecosystem that intelligently limits onboard hazard, incorporates passive fire protection, respects the laws of physics for fail-safe delivery, and selects materials for decades of clean operation. By adhering to these principles—the strict storage ‘Red Lines’ and the disciplined engineering of layout and piping—facility managers and engineers transform volatile fuel from a potential threat into a dependable lifeline. This ensures that when the grid fails, the lights stay on, not because there is fuel, but because the fuel is stored safely, smartly, and surely.
