Dingbo Power Mobile Lighting Tower Generators

Mobile lighting tower generators are integrated equipment combining power generation, lighting, and mobility functions. They are widely used in scenarios requiring temporary high-brightness lighting, such as night construction, emergency rescue and disaster relief, large-scale events, and field operations. Dingbo mobile lighting tower generators are freely movable devices with adjustable height, capable of providing lighting, communication, monitoring, and other functions. Their application scenarios are extensive, including emergency response, construction and engineering, public safety and security, military and border defense, municipal and power maintenance, etc.

Main components of mobile lighting tower generator sets:

Generator set: Typically uses a diesel or gasoline generator to provide stable power output (common power range: 5kW-50kW).

Lighting tower: Composed of multiple high-brightness LED lights or metal halide lamps. It can be raised and lowered (height: 6-15 meters) and has a wide illumination range (coverage radius up to 50-100 meters).

Mobile chassis: Equipped with a trailer or wheeled base for easy transport (some models feature a towing hitch for vehicle pulling).

Control system: Includes manual/automatic switches, light angle adjustment, timer functions, and remote control (some high-end models support IoT control).

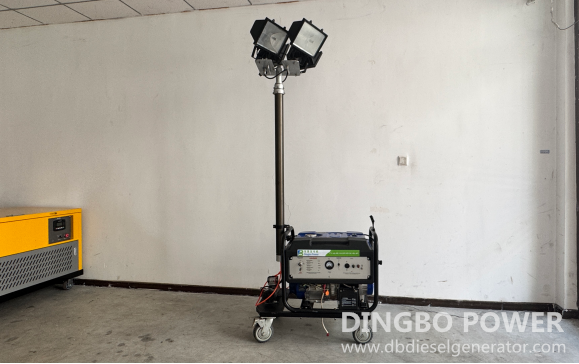

Example: Dingbo 5KW Mobile Gasoline Generator Lighting Tower

This product features:

1. Four 1000W high-efficiency energy-saving Philips lamp heads. Each lamp can be independently adjusted up/down and left/right through a wide angle, enabling 360° all-round illumination according to on-site needs.

2. Uses a three-section telescopic pneumatic mast as the lifting mechanism, reaching a maximum height of 4.5 meters. Tilting the lamp heads adjusts the beam angle, achieving a lighting coverage radius of 45-65 meters.

3. Can be powered directly by the generator set; a full tank of fuel allows continuous operation for up to 13 hours. It can also be connected to 220V mains power for lighting.

4. Wireless remote control enables switching each lamp on/off individually from within 50 meters. An electric and manual air pump allows rapid control of the telescopic mast's lifting.

5. The generator base is equipped with universal casters or rail wheels, enabling operation on uneven ground and railroad tracks.

Main application scenarios for Dingbo mobile lighting tower generator sets:

1. Emergency response & rescue

Rescue lighting after natural disasters (floods, earthquakes, typhoons)

Emergency lighting at accident sites like mine collapses and cave-ins

Night search and rescue missions, providing lighting support for rescue personnel

2. Construction & engineering

Nighttime construction of roads, bridges, and highways

Lighting in special environments like tunnels, mines, and oil drilling

Large construction sites and outdoor infrastructure projects

3. Public safety & security

Security lighting for major events, concerts, and sporting events

Emergency lighting at traffic accident scenes

Enhancing night-time surveillance effectiveness when used with monitoring cameras

4. Military & border defense

Temporary lighting for field operations or military training

Lighting and monitoring support for border patrols and checkpoints

Emergency lighting for locations like airport runways and ship decks

5. Municipal & power maintenance

Night operations for municipal emergency repairs (water, gas, electricity, etc.)

Emergency lighting during sudden power failures

Maintenance work on rail transit and highways

Dingbo Power mobile lighting tower generators are suitable for various outdoor construction operations, maintenance repairs, accident handling, disaster relief, and other tasks requiring mobile or emergency lighting. If you are looking for such a product, feel free to contact us today.
