Product Model:DB1000QZ-25T
Pump type: self-priming pump
Rated flow(m³/h):1000
Head of delivery:25 meters
Self priming height(m):8
Engine model: SDEC Power SC4H180D2 (prime power 120kW)
Speed: 1500r/min
Controller: Intelligent LCD display
Trailer with four-wheel drive,
Canopy material: Weather resistant canopy, 2mm steel plate+outdoor spray painted paint
For more types, please contact us.

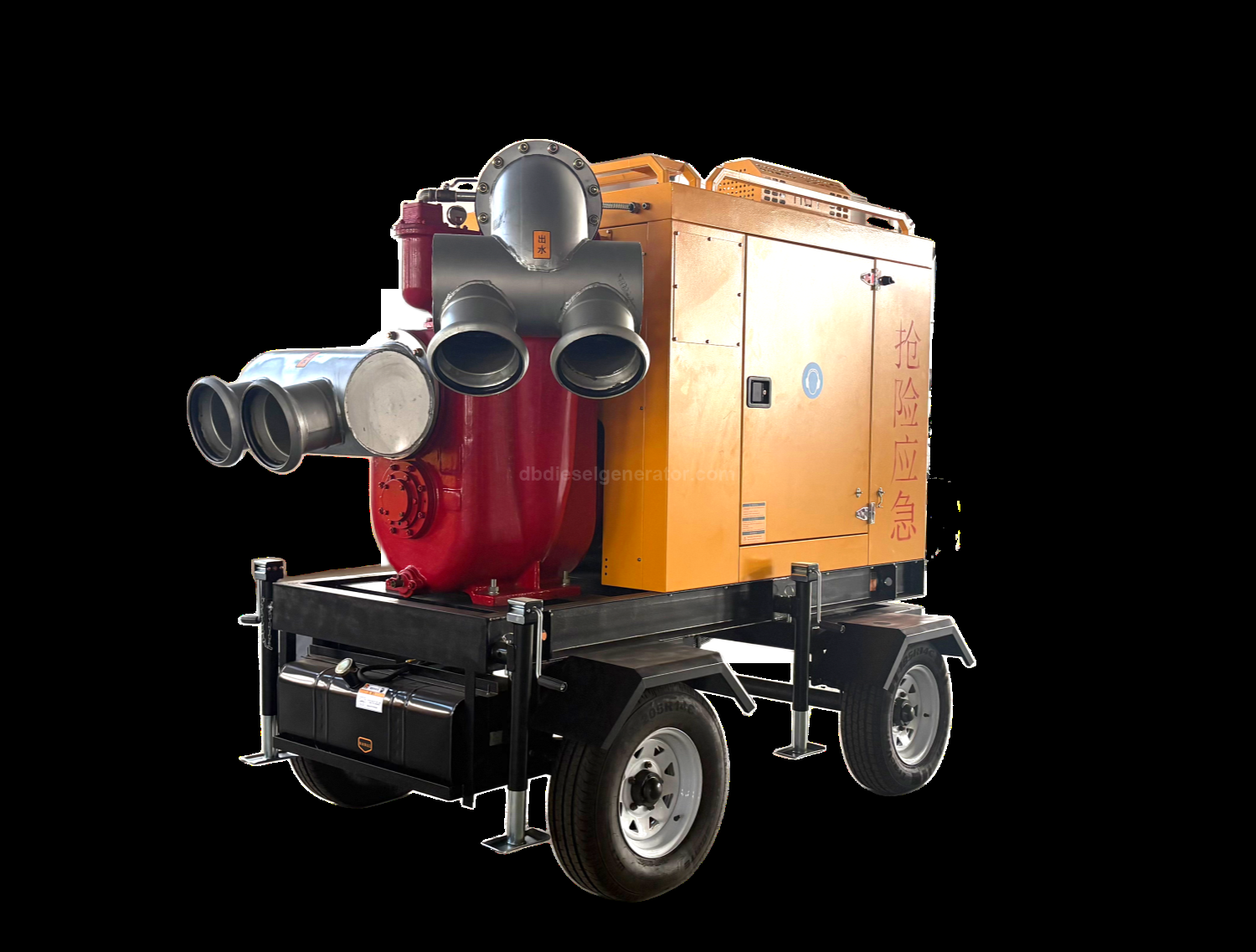

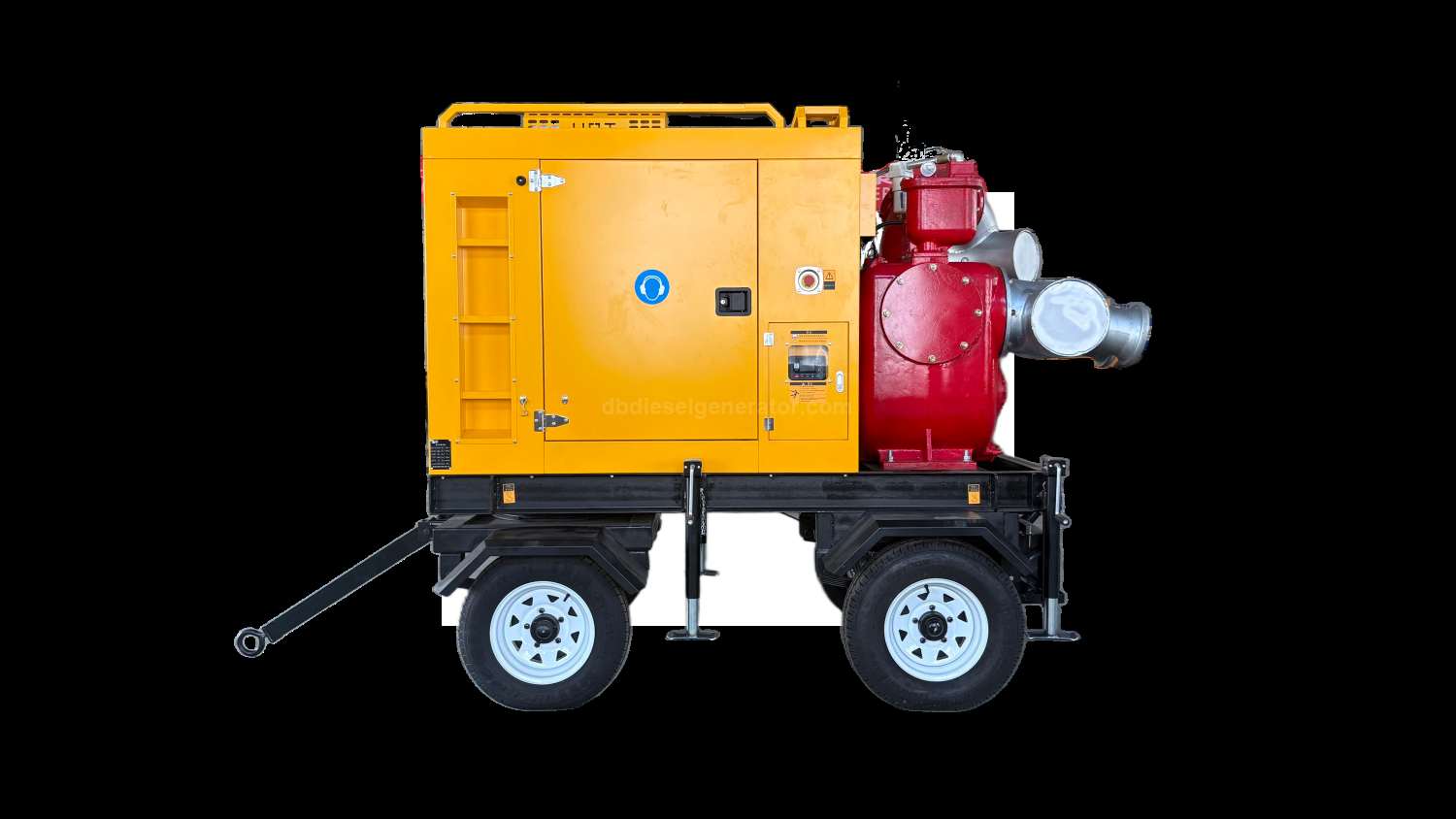

This self-priming diesel water pump is a mobile drainage equipment with double-bearing main shaft support, featuring stable performance and reliable operation. It consists of Shangchai engine, vacuum pump, casters, frame, fuel tank and industrial silencer. Equipped with Furui full LCD intelligent control system, it supports unit start-stop control and monitoring alarm functions, and can display parameters including engine speed, water temperature and oil pressure.
1. Electric vacuum assistance and steam-water separation protection device adopt fully automatic design.
2. Integrated fuel tank on trailer, independent fuel tank chassis with reinforced and shockproof treatment. It can operate continuously for more than 8 hours under full load.
3. Trailer type: Dual-axis leaf spring axle trailer chassis, equipped with folding drawbar and four mechanical support legs to adjust overall balance during operation. 4. Tyre type: Four-wheel automobile vacuum tyres / pneumatic tyres. 5. Brake system: Manual brake fitted, optional electric brake. Tail equipped with brake lights, tail lights and turn signals.
Why Choose Us
Dingbo is original manufacturer of diesel generator set. Factory direct sale, guaranteed quality and affordable price.
Our diesel generator sets are widely used in telecommunications, energy, transportation, real estate, hospital, residential building, data center and other fields, having long-term strategic cooperation with a lot of well-known enterprises. From research and development to production, from raw material procurement, assembly and processing to finished product debugging and testing, each process is strictly implemented, in all aspects meet the national, industry standards and contract provisions of the quality, specifications and performance requirements.
We have a professional and technical team, with an average working experience of more than 10 years in the generator industry. In the spirit of "keep improving", they actively collect and attract advanced technology and products at home and abroad, and constantly update the products, so that our diesel generators have been recognized by the majority of users.
If a customer can not find his supplier to support them when equipment has problem, after sales service is not guaranteed, which is a very helpless thing. While we have perfect after-sales service to support you to solve problem, it's not that you can't find us after you have a problem on your equipment. We will be with you and solve your problems with heart.
Export Case
So far, our diesel genset sold to Ethiopia, Venezuela, Singapore, Nigeria, Thailand, U.S.A etc. all over the world, both having good feedback from customers.
Specific Project Cases:
FAQ
1. Do you have your own factory?
Yes, we have. Welcome to visit our factory.
2. What is the delivery time and do you have product in stock?
Delivery time depends on order quantity. Generally, within 10 days for open genset, 20 days for silent genset. We have some power capacities in stock, if need details, please contact us.
3. What is your warranty period?
Our warranty is 1 year or 1000running hours whichever comes first. But based on some special project, we can extended our warranty period.
4. Does your generator have global warranty?
Yes, We supply the warranty. Also most of our products like Cummins, Volvo, Perkins, Deutz, Doosan, Yuchai, Weichai etc. power generator enjoy the global warranty service. And the alternator we use like Stamford and marathon also enjoy the global warranty service, so you do not need to worry about the after-sales service.
5. What is your payment terms?
We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight. But based on some special project and special order, we can do something on payment item.
6. Do you provide OEM service?
Yes, we can put your company logo on our diesel genset, just tell us your requirements, then we will do it for you.
Our Service
Before service
Our professional engineer will give you some consultation of technology and related planning before sale, such as selection of equipment, supporting facilities, the design of equipment room. We can also answer and solve the using problem you faced.
After sale service
1. Free guide to install and debugging
2. Free training and consult
3. Guiding how to protect your equipment
4. We will set up clients' document, tracking service, regular inspection, maintenance for life
5. We offers pure perennial spare parts and maintenance engineers will be ready to provide.
Dingbo Cloud on line service will help you to manage your equipment, save cost and improve efficiency.
The advantages of this self-priming diesel water pump:
Main shaft supported by double bearings, stable performance and reliable operation
Integrated vacuum system, fast self-priming, high suction capacity, maximum suction head up to 8m
Double-suction impeller, larger flow rate and higher head
Non-clog impeller design, strong debris passing capacity
Independent low-pressure oil-free maintenance-free vacuum pump, realizing self-priming without water filling. Mechanical steam-water separation tank ensures more stable operation.
Water Inlet diameter {mm} | DN200（8"）x2 | |
Water outlet diameter {mm} | DN200（8"）x2 | |
Flow rate {cubic meter/hour} | 1000 | |
Diesel engine water pump set | Lift {meters} | 25 |
Self suction height {meters} | 8 | |
Diesel engine power {kW} | 120kw | |
Diesel engine speed | 1500r/min | |
Fuel capacity {liters} | 250 (Can work continuously for 8 hours) | |
Tire type | Car tires/inflatable tires | |
Number of tires {only} | 4 | |
Weather resistant shell material | 2mm high-quality steel plate+outdoor spray painted paint | |
Mobile trailer | ||
movement speed | 30km/h | |
Length × Width × Height {millimeters} | 3250×1840×1950 | |
Packing size: length × width × height {millimeters} | 3450×2040×2550 | |
Weight {kg} | 2850 |
Urban water logging: In the case of urban waterlogging, the drainage cabin can quickly reach the area with serious seeper and discharge the water quickly through its efficient pumps, reducing the pressure of the urban drainage system and restoring the normal operation of the city as soon as possible.
Flood disaster: In the face of flood disasters, the drainage cabins can reach the disaster areas in the first time and use their powerful drainage capacity and power generation function to provide the necessary power and lighting for the disaster areas, ensuring the smooth progress of rescue work.
Road drainage: When the traffic is blocked by the road water-logging, the drainage cabins can quickly carry out the drainage work. They can reduce the water level and restore the flow of traffic, reducing the traffic delay and safety hazards caused by the flooded road.
Fire emergency water supply: In addition to the drainage function, the drainage cabins can also be used for fire emergency water supply, especially in the case of a long distance between the water source and the fire site. The drainage cabin can be used as a temporary water supply point to provide water for the fire fighting truck.
Flood control rescue: During the dyke rescue, the drainage cabin can carry out drainage operations in a safe area near the dyke. It can reduce the water level of the flooded area and gain time and space for the emergency personnel to repair the dyke and prevent the occurrence of levee failure accidents.
Reservoir safety: When the water level of the reservoir rises sharply due to heavy rain, the drainage cabin can assist the drainage and reduce the pressure of the reservoir. It ensures the smooth flow of the flood discharge channel and the safe operation of the reservoir.
Mountainous area drainage: In the case of flash floods caused by heavy rains in mountainous areas, the drainage cabins can quickly maneuver along mountain roads and carry out drainage operations in villages, farmland and other areas flooded by flash floods to reduce disaster losses.
Diesel engine pumps do not need to rely on the power grid and they have strong power and strong adaptability, that’s why they are widely used in all kinds of water supply and drainage needs occasions. They are important equipment for emergency rescue and industrial production. If you have specific industry requirements, DINGBO POWER can recommend the best models and solutions for you.
