What is a diesel generator set? As the name suggests, it is a power supply device that uses diesel engines as the primary equipment to drive synchronous alternator. It is also a power generation device that is easy to operate and maintain, and has strong adaptability. Therefore, it is widely used in fields such as mines, railways, factories, hospitals, etc.
Power outage is the most challenging problem faced by many enterprises, and it will cause significant losses. In order to quickly solve the loss caused by power failure, when they need to purchase diesel generator sets,but diesel generator set without inventory.And manufacturer needs a certain buffer time to make diesel generator. This is a huge difficulties for them.But don't worry. Dingbo Power is a professional manufacturer of diesel generator. It can recommend a 600kw silent diesel generator set for you, which is still in stock. It is equipped with Perkins engine. Today, Dingbo Power will take you to a deeper understanding of this 600kw silent type diesel generator set to help major enterprises solve their power-off problems.
Firstly, Dingbo Power will introduce some technical parameters of this genset to you:
Main technical parameters of 600KW Perkins diesel generator set
Output power:750KVA/600KW | Stable voltage regulation rate ≤± 0.5% | Frequency adjustment rate ≤± 1% |
Rated voltage:400V | Transient voltage regulation rate ≤ 20~- 15% | Transient adjustment rate ≤± 10~- 7% |
Rated current:1080A | Voltage recovery time ≤ 15S | Frequency stability time ≤ 5S |
Rated frequency:50HZ | Volatility ≤ ± 0.5% | Volatility ≤ 0.5% |
weight:5300KG | Size: 4100×1750×2170mm (for reference only) |

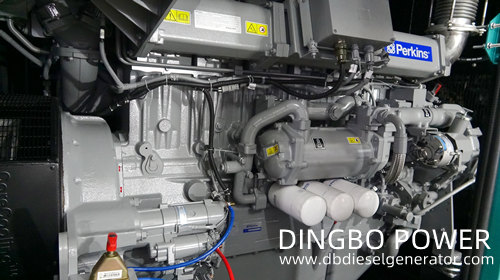

Main parameters of Perkins diesel engine 4006-23TAG3A
Specification | |
Number of cylinders | 6 vertical in-line |
Bore * stroke | 160 x 190 mm |
Displacement | 22.921 litres |
Aspiration | Turbocharged and air-to-air charge cooled |
Cycle | 4 stroke |
Combustion system | Direct injection |
Compression ratio | 13.6:1 |
Rotation | Anti-clockwise, viewed on flywheel |
Total lubricating capacity | 113.4 litres |
Cooling system | Water-cooled |
Total coolant capacity | 105 litres |
Main parameters of alternator
Alternator | |
Alternator Model | Stamford S5L1D-H41 |
Rated Voltage(V) | 400/230 |
Output way | 3 phase 4 wire |
Rated power factor | 0.8 |
Exciter | Brushless, Self-exciter |
Max voltage regulation | ±1% |
Protection class | IP23 |
Insulation class | H |
The 600kw Perkins diesel generator set provided by Dingbo Power can be sold and tested in strict accordance with the international quality standard ISO8528 (national standard GB2820-97) for diesel engines, and the average trouble free working time of the set is more than 2000 hours, which can ensure to meet the various use requirements of customers. And the Perkins engine has fast and reliable cold start performance, applying advanced technology to optimize combustion, low fuel consumption, low noise, energy conservation, and environmental protection. The emissions can meet the EU IIA stage, EPA Tier 2, Tier 3, and Tier 4 standards, which is an important reason why we chose the Perkins engine.
In addition, the diesel generator set of Dingbo Power adopts the Dingbo Cloud management system to manage the operation, fault handling, maintenance, etc. of the customer's generator set after the authorization of the customer. The genset can be controlled remotely through mobile phones and computers to improve management efficiency and company benefits, and realize the integration of remote video, monitoring, management, and service.

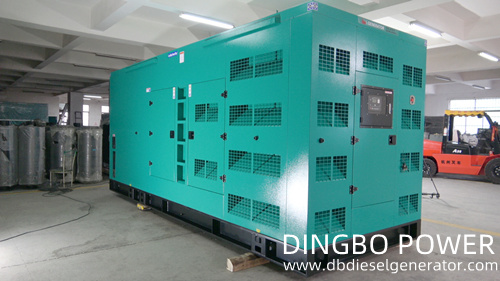

This genset not only has excellent stability, reliability, and durability, but also can adapt to various harsh working conditions and environments, with strong power and other advantages. In addition to, it adopts a design with a silent box, which has low noise and is particularly suitable for hospitals, hotels, high-end living areas, large shopping malls and other places with strict environmental noise requirements. It is an indispensable emergency energy source. Due to the high noise level of high-power gensets themselves, only by achieving significant noise reduction can the noise level of the gensets meet the current environmental protection needs. The silent diesel genset can be placed indoors or outdoors, windproof, rainproof and noise is low, which will not affect people's life, and will also eliminate the construction of diesel generator room and noise reduction works in the machine room. Therefore, it is difficult for such diesel generator sets to be unpopular.
If you like this 600kw Perkins Silent type diesel generator set, please don't hesitate to contact us at any time. Dingbo Power guarantees that this diesel generator set can meet your needs. If you would like to know more information or more types of diesel generator sets, please contact us by email dingbo@dieselgeneratortech.com .
