Do You Know the Major System Structures of Volvo Diesel Genset

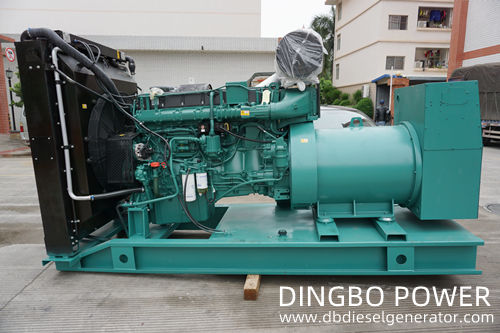

Dingbo series Volvo diesel generator set adopts full electronic fuel injection control technology, which has the advantages of excellent starting performance, stable voltage, reliable operation, low emissions, low noise, convenient maintenance, good economy, and good plateau adaptability. The emission standards can meet the Euro 2 and Euro 3 standards. Today, Dingbo Power introduces some major system structures of Dingbo series Volvo diesel generator sets.

Base: The base is composed of two forms, one is the base type, and the other is the base fuel tank type. The base is cut and welded from channel steel and steel plates. The base is equipped with diesel generator bracket, generator bracket and water tank bracket. The basic oil tank model is also equipped with an oiler, oil level gauge, oil inlet and outlet. Volvo diesel generator sets below 150KW are all made of steel plates. All steel bases have undergone acid pickling and phosphating treatment before being sprayed with plastic. All edges and corners of the base are handled with uninjured hands.

Control system: The control system of Volvo diesel generator set is mainly composed of controller, relay, fuse, air circuit breaker, functional instrument, status indicator, brushless motor, electronic speed regulator actuator, electric regulator, etc. The control system of Volvo diesel generator set is like a human brain. It is mainly used to control the operation of the diesel generator set and display the operation of the genset, adjust the power quality of the generator output, and alarm for abnormal conditions. The control system mainly controls and protects Volvo diesel generator sets. The protection includes high water temperature, low oil pressure, overspeed, battery voltage, etc., which can effectively protect Volvo diesel generator sets from damage and personal safety of genset operators in case of accidents.

Intake system: The intake system of Volvo diesel generator is mainly composed of air filter, exhaust gas turbocharger, Intercooler (some engines), intake manifold, air filter maintenance indicator, etc. The main function is to filter impurities or dust in the air, provide clean and fresh air to enter the cylinder, provide proper concentration of mixture for Volvo diesel generator, and distribute the air fuel mixture or clean air to each cylinder as evenly and fully as possible.

Exhaust system: The exhaust system of Volvo diesel generator is mainly composed of exhaust pipes, corrugated pipes, elbows, industrial silencers or residential silencers. The muffler and exhaust system work together to reduce noise and directly exhaust the exhaust gas outdoors. The installation of exhaust system and all accessories is very important for the service life, power output and other performance indicators of Volvo diesel generator.

Fuel supply system: Volvo diesel generator sets have two types of fuel supply systems, namely mechanical and electronic. The mechanical fuel supply system utilizes mechanical principles to control the fuel supply system. When the generator set is shut down, the fuel supply shall be cut off in time to ensure that the fuel does not return, that there is no vacuum in the fuel pipe, and that the Volvo diesel generator set does not need manual pre fuel supply when it is restarted. The price is relatively cheap. The electronic fuel supply system controls the fuel supply system through a circuit connected control device. The electronic fuel supply system is judged and operated according to written procedures. Compared with mechanical fuel supply systems, electronic fuel supply systems have multiple functions, simple operation, and are safe and reliable. The price of electronic fuel supply systems with stronger functions will be slightly higher than that of mechanical fuel supply systems.

The above is the major system structures of Volvo diesel generator set. We hope it can help you understand Volvo diesel generator set. If you want to know more information, please contact us by email dingbo@dieselgeneratortech.com .
